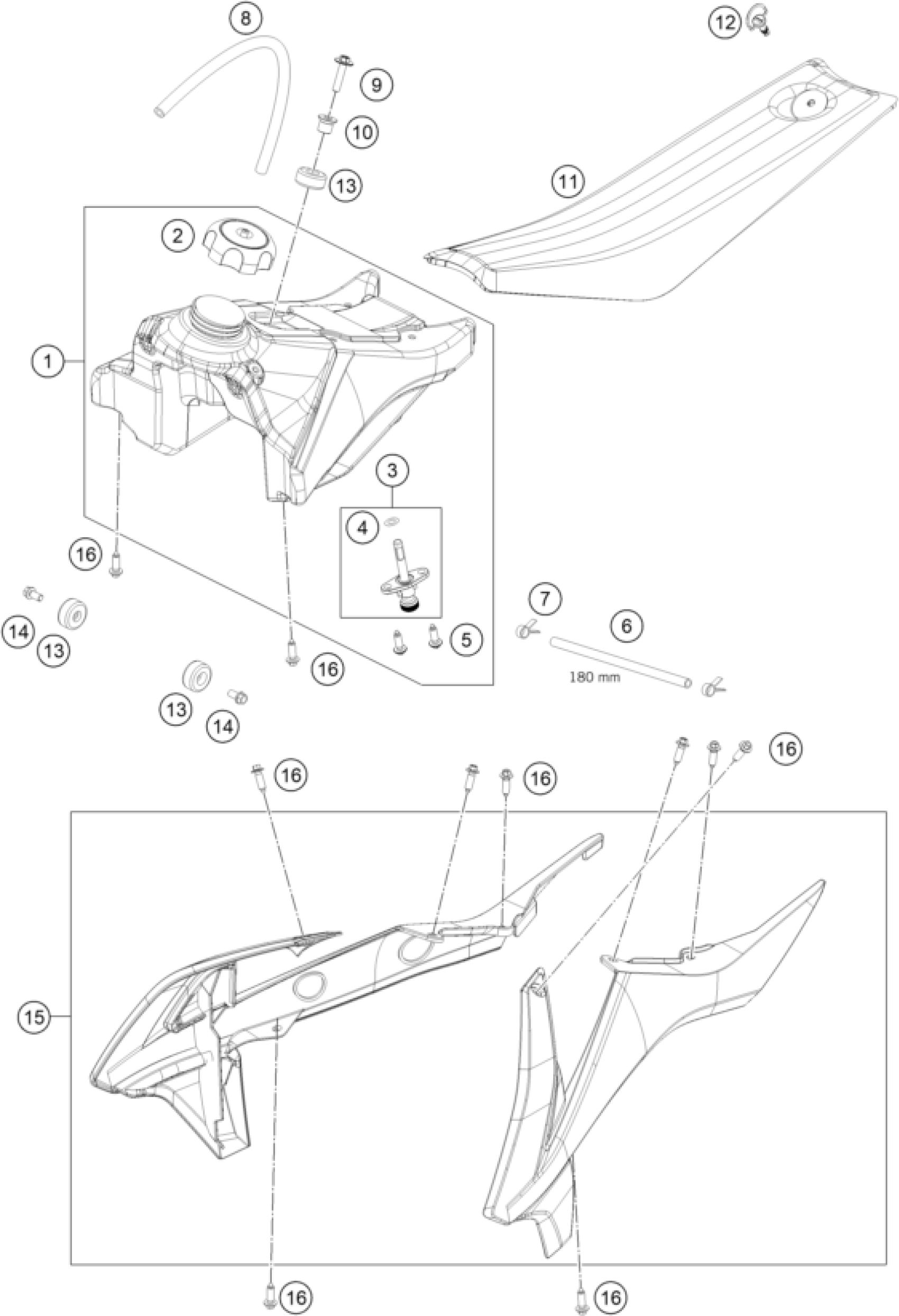

KTM 50 SX MINI 2017 TANK, SEAT Diagram

#

Description
Price

1

FUEL TANK CPL. MINI 2016

4530701313330

Unavailable

2

FILLER CAP CPL. SMALL

49007008044

Unavailable

3

Fuel cock cmpl.

58507003200

Unavailable

4

O-RING 1,78x10,82x14,38 2-013

0770020130

Unavailable

5

SCREW FOR PLASTIC K60X20 SW6

0017060205

Unavailable

6

FUEL HOSE VITON 6X1,5 PER/M

58307016001

Unavailable

7

YDNAC-CLAMP FUEL HOSE (8MM)

45031005000

Unavailable

8

PVC-hose 5.6X10X270MM

78007000270

Unavailable

9

COLLAR SCREW M6X27 TX

0024060273

Unavailable

10

TANK BUSHING 07

77307026000

Unavailable

11

SEAT

45307040000

Unavailable

12

Quick lock

45007040051

Unavailable

13

TANK ROLLER 12X26X12 '98

50307014000

Unavailable

14

HH collar screw M6x12 TX30

0025060126

Unavailable

15

SPOILERSET 50SX/MINI 17

4530805400028A

Unavailable

16

SCREW F. PLASTIC K60X20AL SW6

0017060206

Unavailable

17

TANK ROLLER 12X26X12 '98

50307014000

Unavailable
