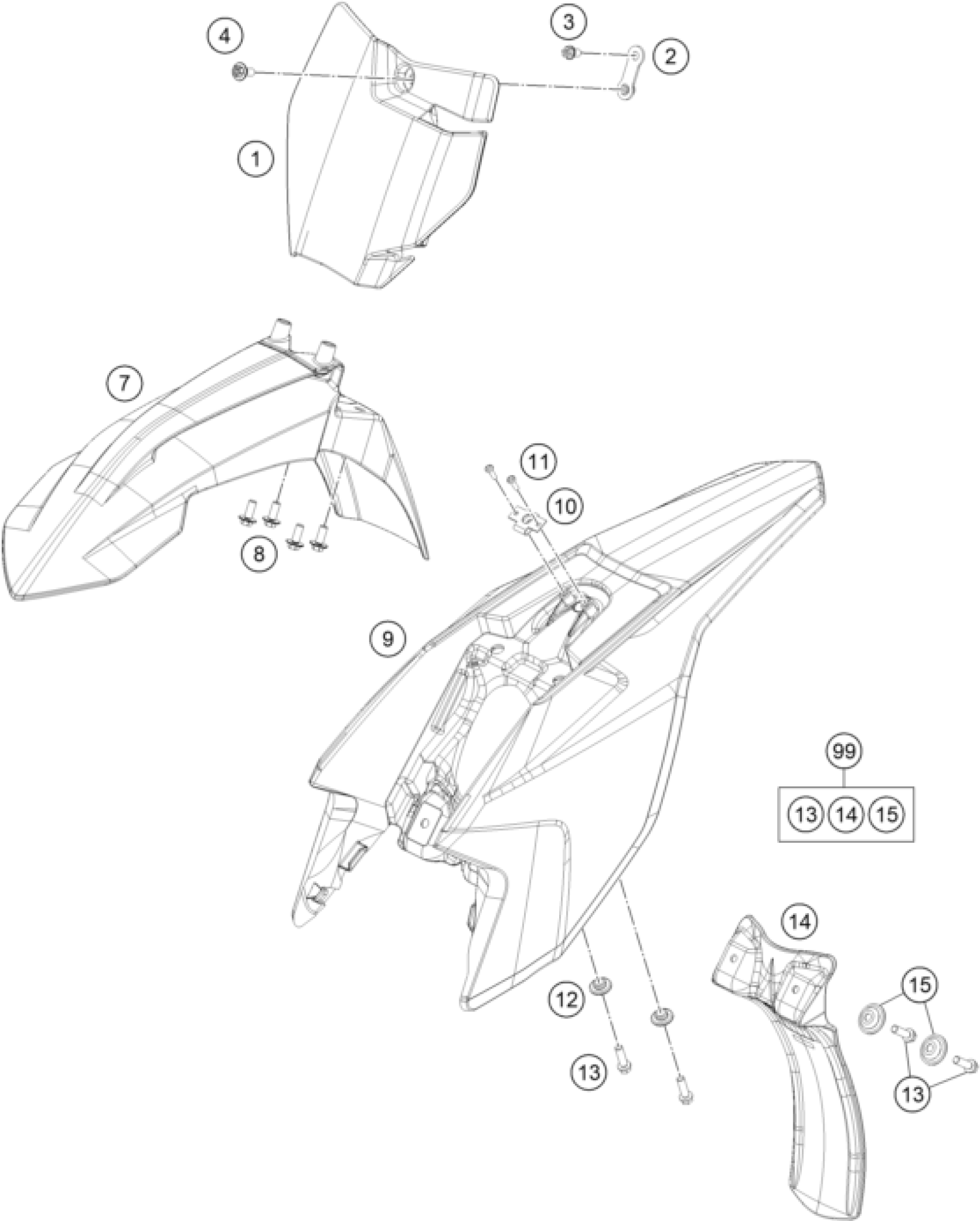

KTM 50 SX MINI 2017 MASK, FENDERS Diagram

#

Description
Price

2

RETAINING PLATE F. NUMBER PL.

45208007050

Unavailable

3

HH collar screw M6x10 TX30

0025060106

Unavailable

4

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

6

SPACER BUSHING 03

54808020000

Unavailable

7

Front fender 50 SX, orange

45308010000EB

Unavailable

8

HH collar screw M6x15 TX30

0024060156

Unavailable

9

REARPART 50SX 2017

4530801300028B

Unavailable

10

Past mount quick lock

45007040050

Unavailable

11

SHEET MET.SCR.DIN7981-3,5X13

0981350133

Unavailable

12

SPACER BUSHING 03

54808020000

Unavailable

13

HH collar screw M6x20 TX30

0025060206

Unavailable

14

SPLASH PROTECT. 50SX JUN./MINI

45206010100

Unavailable

15

BUCKET

72210079000

Unavailable

99

SPLASH PROTECTOR KIT 50 SX

45206010010

Unavailable

1

START NUMBER PLATE 50 SX WHITE

4530800700028

Unavailable
