LUBRICATING SYSTEM

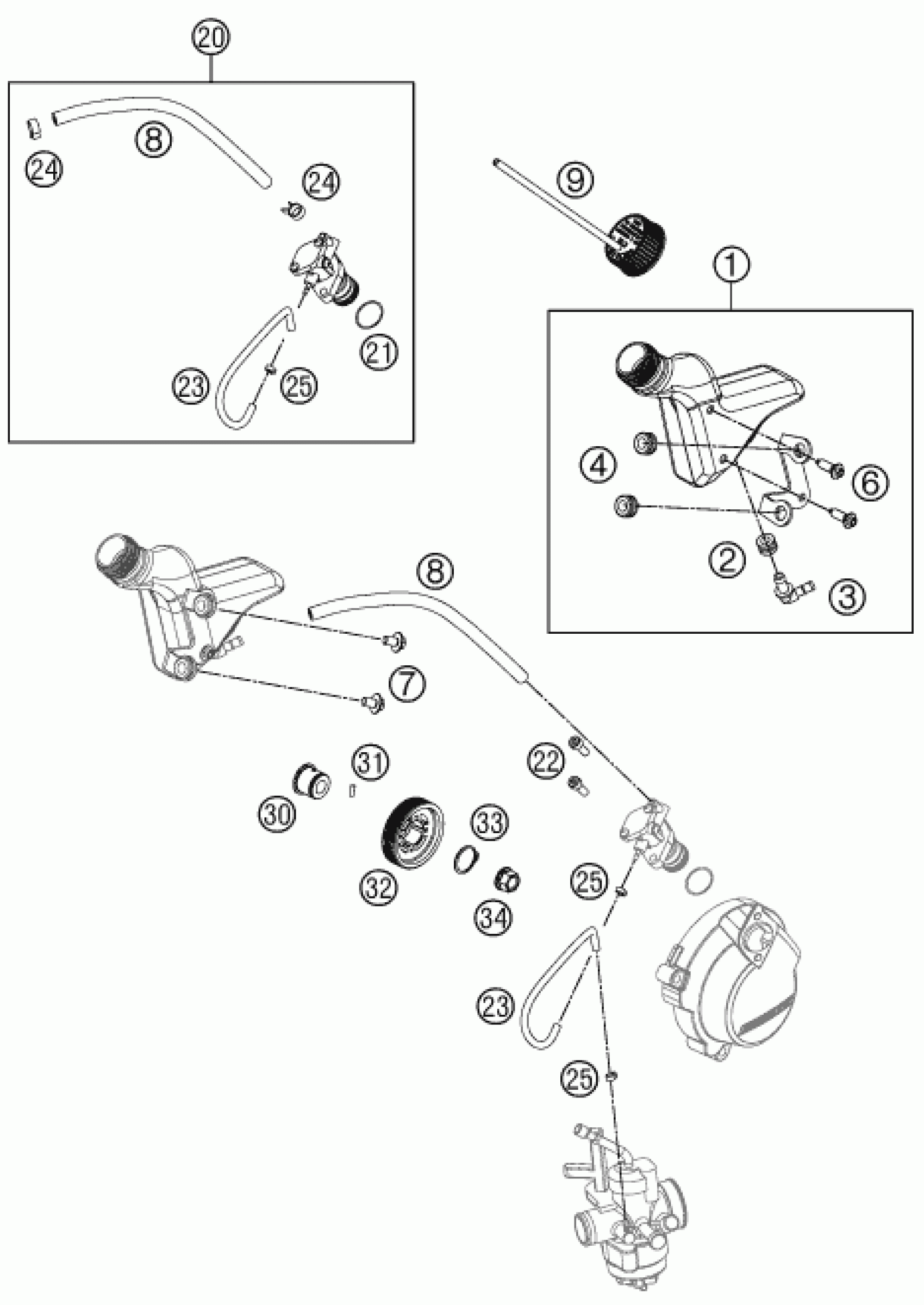

KTM 50 SX MINI 2013 LUBRICATING SYSTEM Diagram
#
Description
Price
1
OIL TANK CPL. 50SX MINI 2012
45238061133
Unavailable
2
RUBBER GROMMET 6X9X13MM 04
60035069000
Unavailable
3
Angle piece, reservoir
60035068000
Unavailable
4
rubber grommet D=8mm open
31008060000
Unavailable
6
SCREW FOR PLASTIC K60X20 SW6
0017060205
Unavailable
7
HH COLLAR SCREW M6X10 TX30
0024060106
Unavailable
8
HOSE 5X9MM
45138067000
Unavailable
9
OIL TANK SCREW SX MINI
45238063033
Unavailable
20
OIL PUMP
45138067100
Unavailable
21
O-RING 19,10X1,60 NBR 70
0770191016
Unavailable
22
AH collar screw DIN 912 M5x16
0912050163
Unavailable
23
PREFORM. HOSE CARB.-PUMP 2X5MM
45138068000
Unavailable
24
YDNAC-clamp 10101 (10.4MM)
58007017000
Unavailable
25
CLAMP 5 FOR OIL PUMP
45138069000
Unavailable
30
SPACER FOR OIL PUMP GEAR
45138064000
Unavailable
31
NEEDLE PIN DIN5402 NRB3X7,8 G2
0402030780
Unavailable
32
OIL PUMP DRIVE WHEEL
45238065000
Unavailable
33
CIRCLIP DIN0471-19X1,2
0471190120
Unavailable
34
HH COLLAR NUT M10X1,25 WS=13
58414030000
Unavailable
