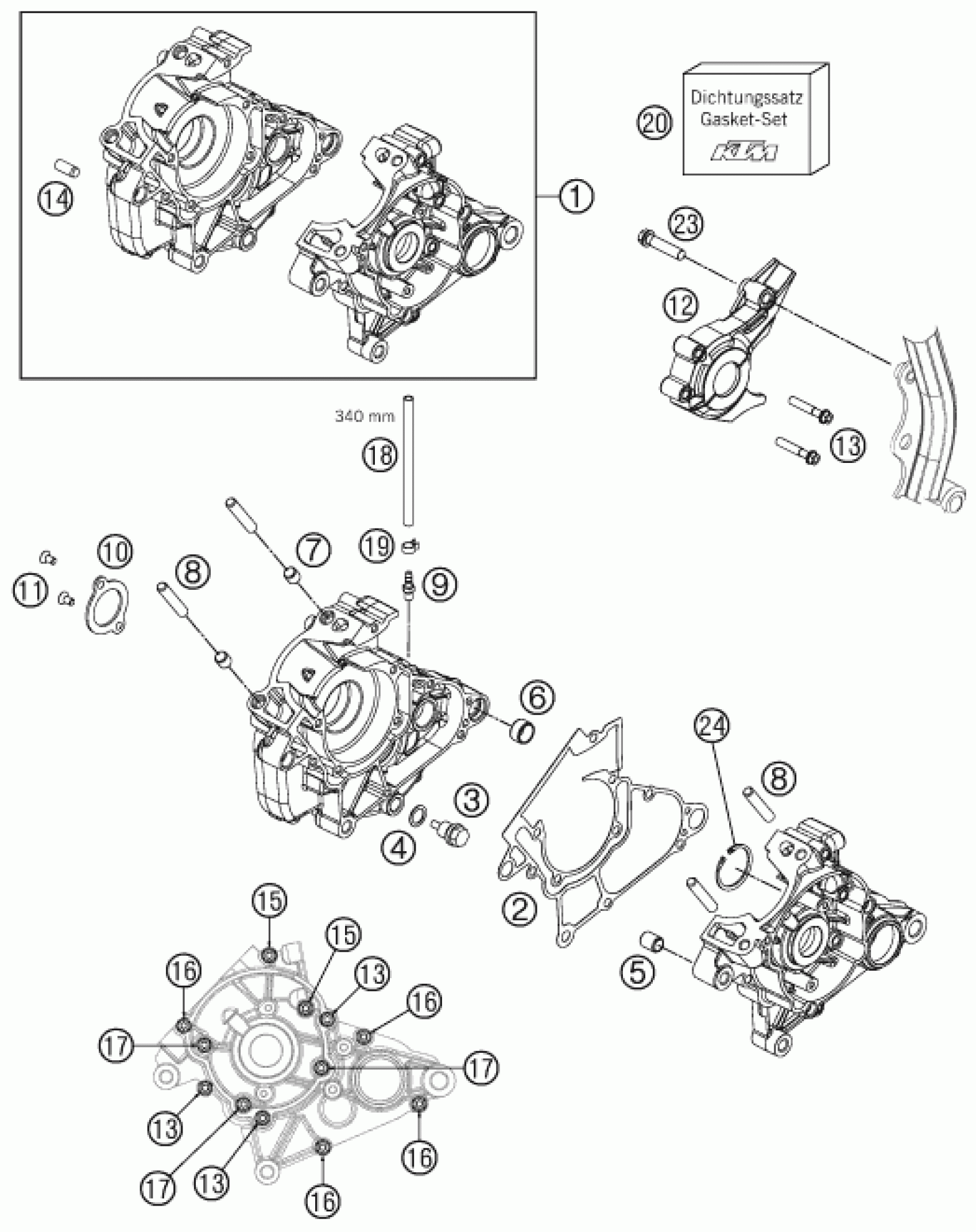

KTM 50 SX MINI 2012 ENGINE CASE Diagram

#

Description
Price

1

ENGINE CASES CPL. 50SX

45230000133

Unavailable

2

ENGINE CASE GASKET

45230039000

Unavailable

3

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

4

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

5

DOWEL 12X9X14,5

46230024000

Unavailable

6

DOWEL 17 X 14 X 9,5

58330023000

Unavailable

7

DOWEL 10X8,2X10

46230023000

Unavailable

8

STUD M8X41

46030043000

Unavailable

9

VACUUM CONECTION M6/3MM '97

58336020190

Unavailable

10

BEARING BRACKET

45230017000

Unavailable

11

INT TORX FLAT HEAD M5X10 10.9

0019050106

Unavailable

12

CHAIN GUARD

45230060000

Unavailable

13

HH collar screw M6x30 TX30

0025060306

Unavailable

14

CYLINDER STUD DIN6325 8X20 M6

0325080200

Unavailable

15

HH collar screw M6x55 TX30

0025060556

Unavailable

16

HH collar screw M6x30 TX30

0025060306

Unavailable

17

HH collar screw M6x40 TX30

0025060406

Unavailable

18

PVC-HOSE 4X6MM

31007007101

Unavailable

19

YDNAC-CLAMP 10068 (6,8MM)

45230089000

Unavailable

20

GASKET SET 50 SX 2009

45230099000

Unavailable

23

HH collar screw M8x30

0025080306

Unavailable

24

CIRCLIP DIN0472-35X1,5

0472035150

Unavailable
