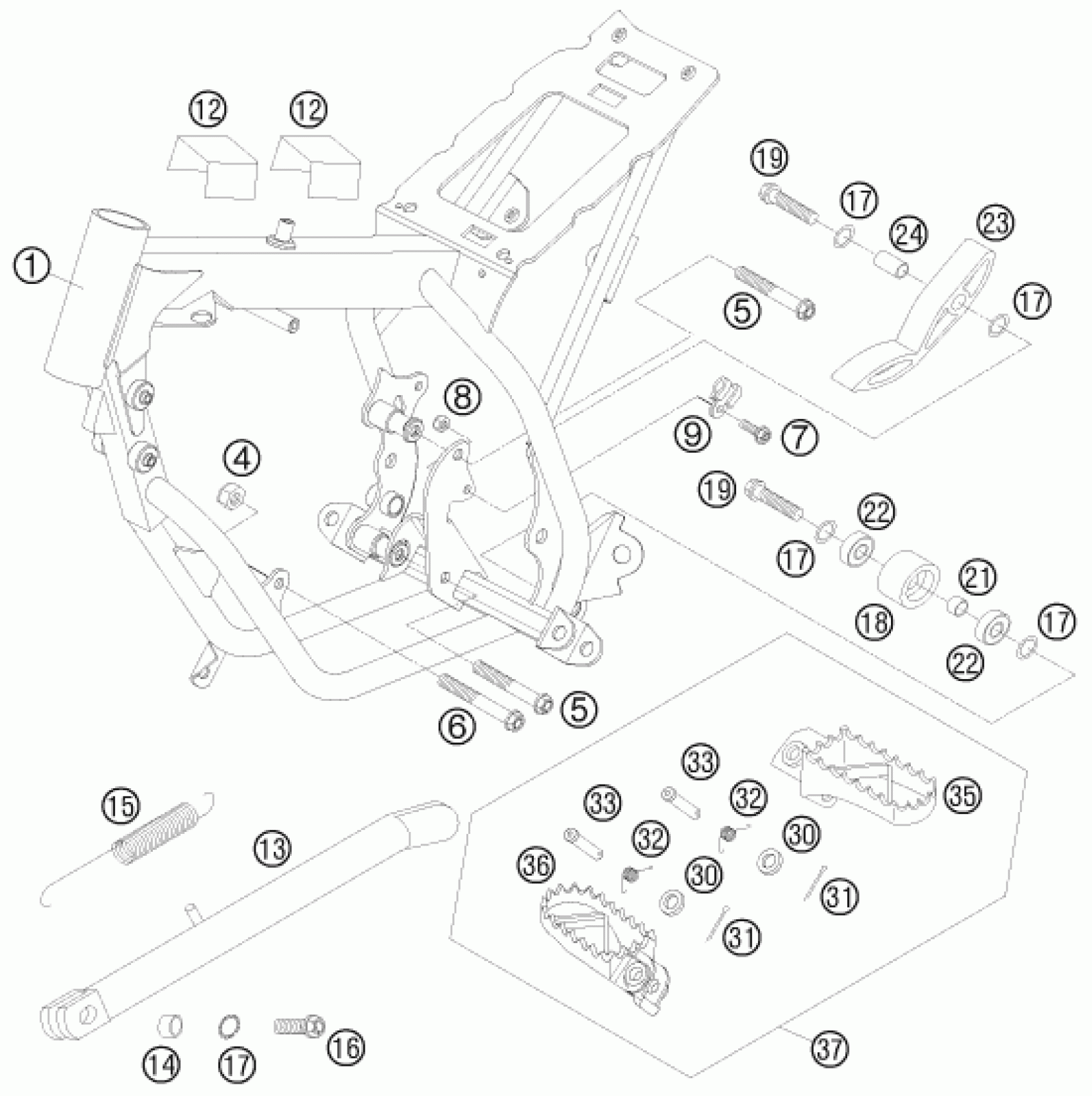

KTM 50 SX JUNIOR 2008 FRAME Diagram

#

Description
Price

1

FRAME PRO JUNIOR LC ''ME2R''

4510300100030

Unavailable

4

Self locking nut M8 10.9

54310086200

Unavailable

5

HH COLLAR SCREW M8x60 TX40

0025080606

Unavailable

6

HH collar screw M8x65 TX40

0025080656

Unavailable

7

HH collar screw M5x12 TX30

0025050126

Unavailable

8

Self locking nut DIN 985 M5

0985050003

Unavailable

9

BRAKE CABLE CLAMP RSGU 9/12

45001070000

Unavailable

12

METAMOLL FOR BATTERY BRACKET

58711054050

Unavailable

13

SIDE STAND L=285MM SILVER 02

4510302320090

Unavailable

14

BUSHING FOR SIDE STAND 02

45103023250

Unavailable

15

SIDESTAND SPRING LONG

51003021000

Unavailable

16

HH collar screw M8x20

0025080206

Unavailable

17

LOCK WASHER 8MM

36003014000

Unavailable

18

CHAIN ROLL D=30MM

50203053000

Unavailable

19

HH collar screw M8x30

0025080306

Unavailable

21

BUSHING 8.2 X 12 X 6

74003021000

Unavailable

22

Grooved ball bearing 608 2RS C

0625006087

Unavailable

23

CHAIN SLIDING PIECE BELOW '97

51103053000

Unavailable

24

BUSHING 8,2X10X20

51103053051

Unavailable

30

washer DIN 125 A 10.5

0125100003

Unavailable

31

PIN DIN0094-3,2X25 STEEL

0094032253

Unavailable

32

FOOTREST SPRING L/S & R/S

54603041000

Unavailable

33

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

Unavailable

35

FOOT REST L/S SILVER

5460304000090

Unavailable

36

FOOT REST R/S SILVER '98

5460314000090

Unavailable

37

FOOTPEG L.+R. CPL. MINI 03

4510304013390A

Unavailable
