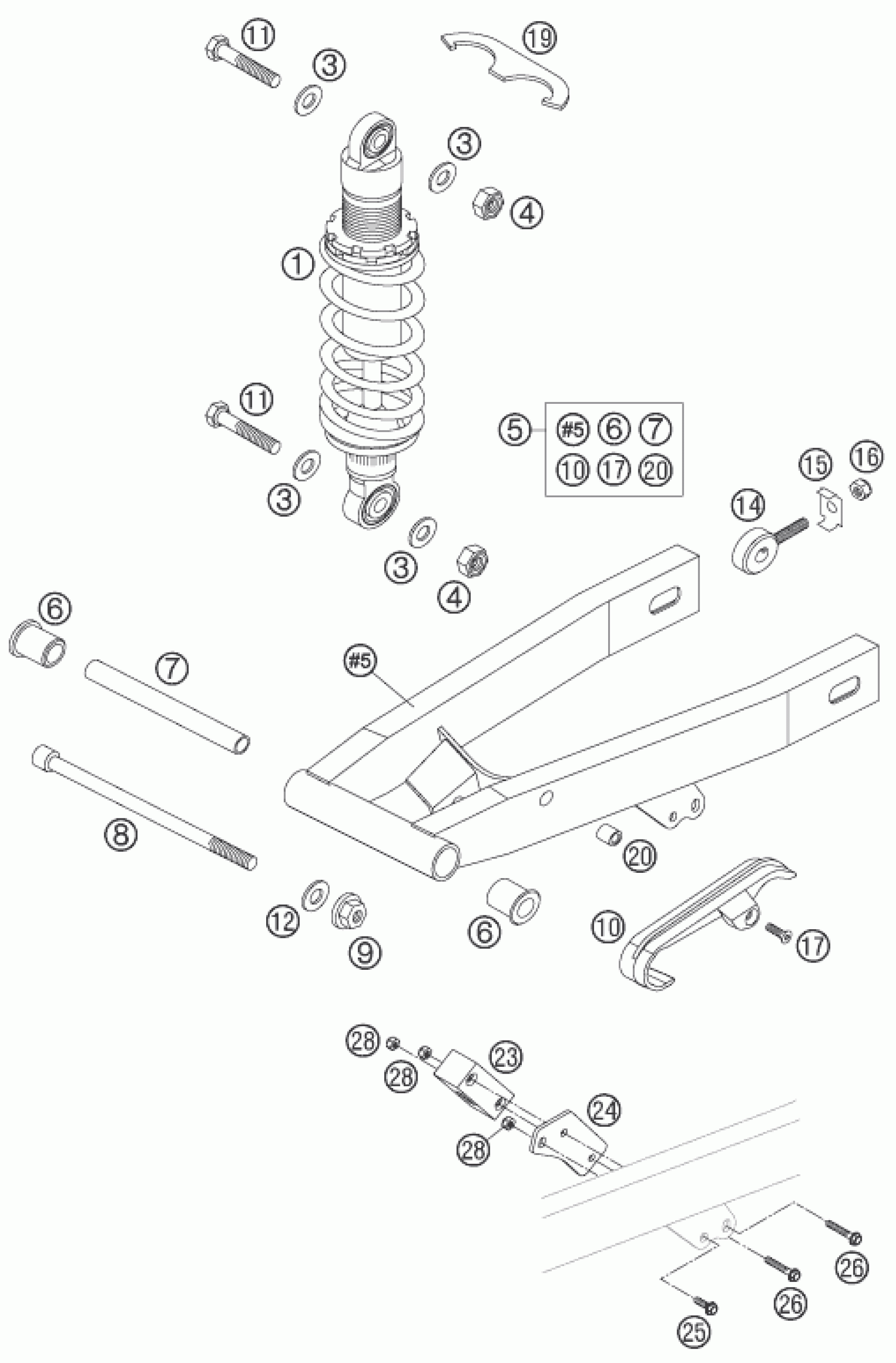

KTM 50 SX JUNIOR 2006 SHOCK ABSORBER Diagram

#

Description
Price

1

MONOSHOCK 50 SX JUNIOR LC 06

03189B01

Unavailable

3

washer DIN 125 A 10.5

0125100003

Unavailable

4

SELF LOCK.NUT DIN0982-M10 HIGH

0982100003

Unavailable

5

SWINGARM CPL. JUN. ADV.+LC 02

45104030044

Unavailable

6

BUSHING BOX L=30 MM

45004031000

Unavailable

7

SPACING TUBE 10X13X140 MM

45004039000

Unavailable

8

SWING ARM BOLT M10X158,5 02

45103014000

Unavailable

9

flanged hex nut DIN 6927 M10 W

49009082000

Unavailable

10

CHAIN SLID. GUARD FRO. MINI 02

45104066000

Unavailable

11

HH SCREW DIN0931-M10X45

0931100453

Unavailable

12

WASHER 10,5 X 21 X 3

31004001100

Unavailable

14

CHAIN ADJUSTER

45010083000

Unavailable

15

SUPPORTING BRACKET

45010083060

Unavailable

16

SELF LOCKING NUT DIN0985-M 8

0985080003

Unavailable

17

FLAT H.SCREW DIN7991-M6X20

0991060203

Unavailable

19

HOOK WRENCH 50 SXR

45004010090

Unavailable

20

BLIND RIVET THREAD M6 STE. 4MM

55003139900

Unavailable

23

CHAIN GUIDE REAR

45004070000

Unavailable

24

BRACKET FOR CHAIN GUARD 02

45104170000

Unavailable

25

HH COLLAR SCREW M 5X12 WS=8

0015050123

Unavailable

26

HH COLLAR SCREW M 5X30 WS=8

0015050303

Unavailable

28

Self locking nut DIN 985 M5

0985050003

Unavailable
