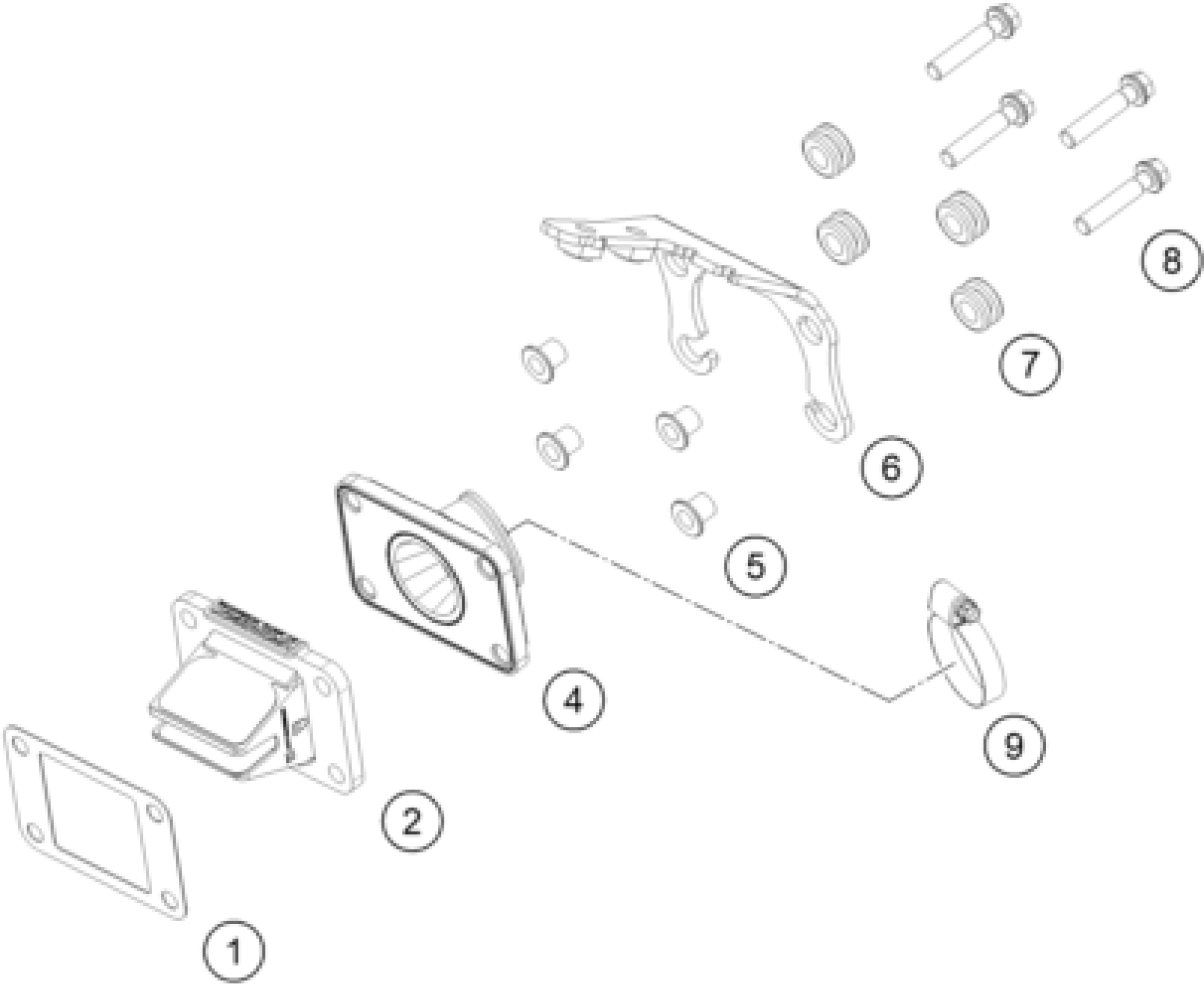

KTM 50 SX FACTORY EDITION 2024 REED VALVE CASE Diagram

#

Description

Price

1

GASKET MEMBRAN CASE

46230049000

Unavailable

2

Reed valve case cmpl.

A40030151044

Unavailable

4

INTAKE FLANGE

45230150000

Unavailable

5

COLLAR BUSHING 6,3X8X13X9,5

45239060050

Unavailable

6

Ignition coil retaining bracke

A40039010000

Unavailable

7

rubber grommet D=8mm open

31008060000

Unavailable

8

HH collar screw M6x30 TX30

0025060306S

Unavailable

9

Hose clamp 25-40 SGT 4

10001120000

Unavailable
