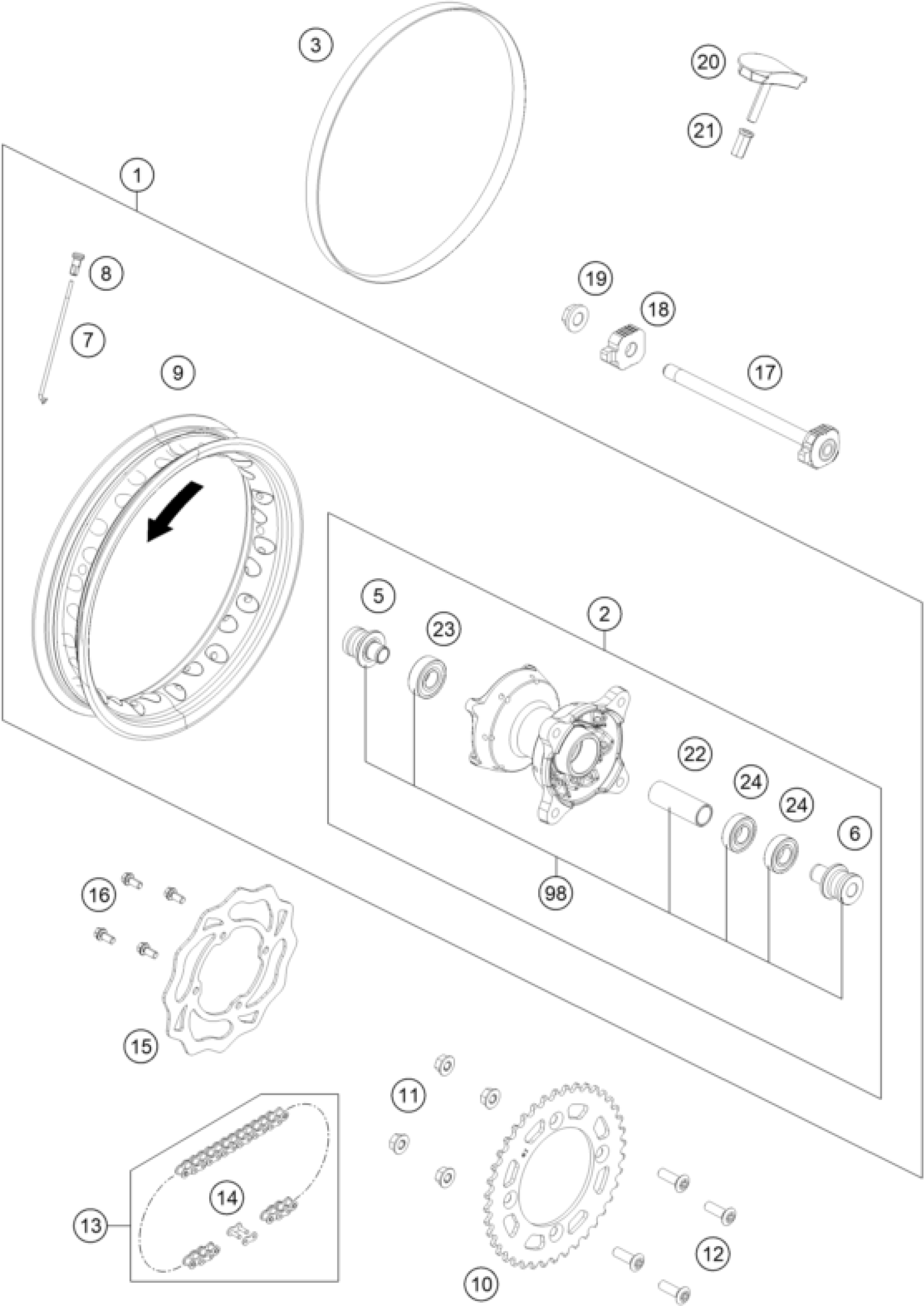

KTM 50 SX 2026 REAR WHEEL Diagram

#

Description
Price

1

Rear wheel 1.6x10"" cmpl.

A40010101244

Unavailable

2

Rear wheel hub cmpl.

A40010010344

Unavailable

3

RIM BAND 10'' 22MM

45009073000

Unavailable

5

Spacer

0800001501201

Unavailable

6

Spacer

A40010013000

Unavailable

7

Spoke M3,5X100-10

A40009071100

Unavailable

8

Spoke nipple M3.5

A40010072000

Unavailable

9

Rear rim 1,6x10"

4521007020033

Unavailable

10

Rear sprocket 38 teeth 50SX ´1

45210151038C1

Unavailable

10

Rear sprocket 39 teeth 50SX ´1

45210151039C1

Unavailable

10

Rear sprocket 40 teeth 50SX ´1

45210151040C1

Unavailable

10

Rear sprocket 41 teeth 50SX ´0

45210151041C1

Unavailable

10

Rear sprocket 42 teeth 50SX ´0

45210151042C1

Unavailable

11

Self locking nut M8 10.9

54310086200

Unavailable

12

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

Unavailable

13

RACING CHAIN 1/2X3/16'' 50 SX

45110265104

Unavailable

14

CONNECTING LINK 1/2X3/16'' 90R

45110266000

Unavailable

15

BRAKE DISC FRONT JUN/SEN 09

45209060000

Unavailable

16

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

Unavailable

17

Rear wheel spindle cmpl.

45410085044

Unavailable

18

Chain tension adjuster right

45410084000

Unavailable

19

Collar nut, M12x1, right

49030021100

Unavailable

20

Rim lock 2004

45110090000

Unavailable

21

NUT FOR WHEEL HOLDER

77110090050

Unavailable

22

Bearing spacing tube rear

A40010011000

Unavailable

23

BALL BEARING 6202 2RS1 C3

0625062027

Unavailable

24

BALL BEARING 6002 2RSH C3

0625060020

Unavailable

98

Rear wheel Rep. Kit

A40010015100

Unavailable
