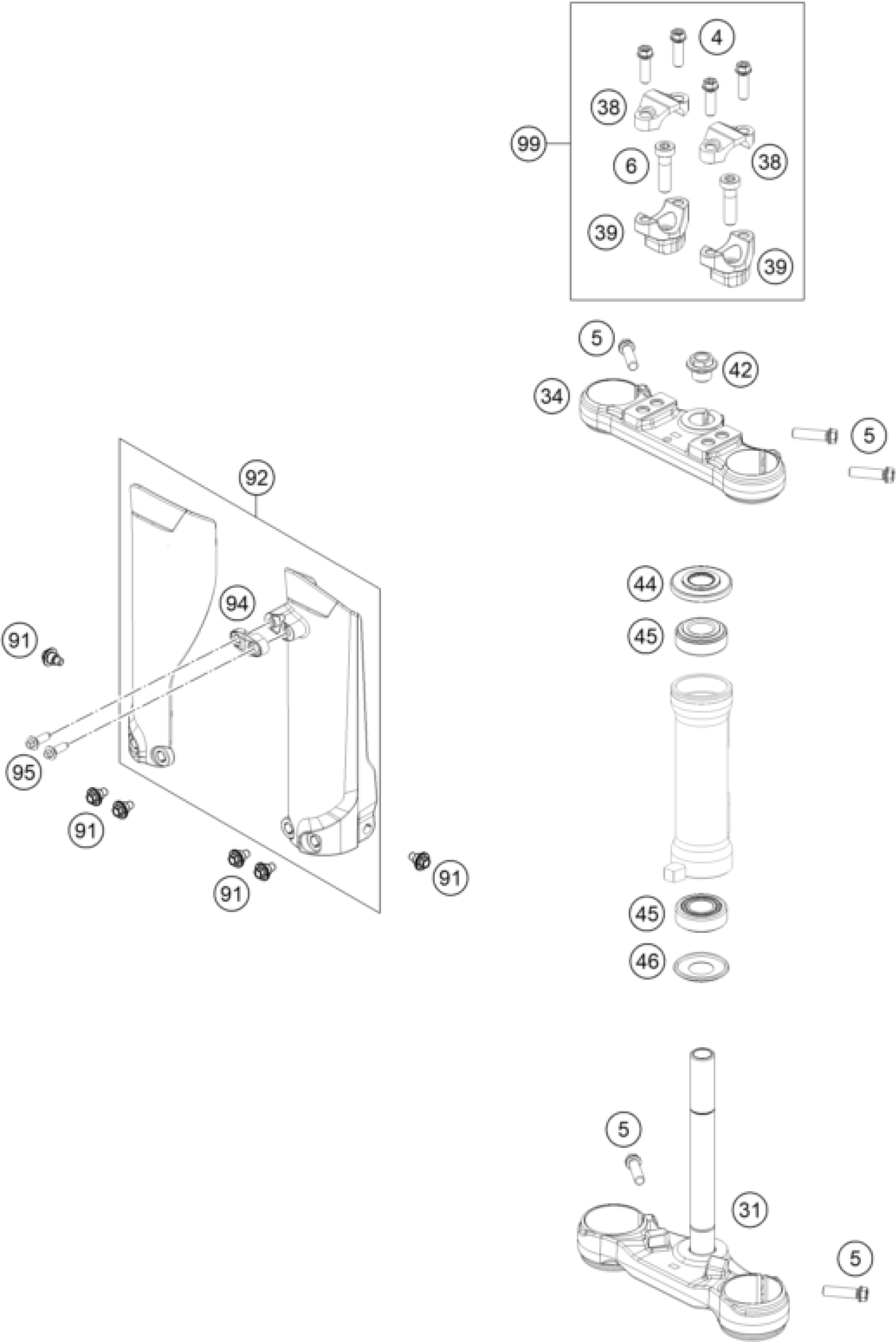

KTM 50 SX 2026 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

4

HH collar screw M8x25

0025080256

Unavailable

5

HH collar screw M8x30

0025080306

Unavailable

6

AH-COLLAR SCREW M10X35 ISA45

0032100356S

Unavailable

31

Bottom triple clamp cmpl.

45301032222

Unavailable

34

upper triple clamp

45301034122

Unavailable

38

HANDLEBAR CLAMP 28MM

77201038000

Unavailable

39

Handlebar mount D28mm-H32mm

59401039032

Unavailable

39

Handlebar mount D28mm-H37mm

59401039037

Unavailable

39

Handlebar mount D28mm-H42mm

59401039042

Unavailable

39

HANDLEB.SUPP. D=28MM H=47MM 05

59401039047

Unavailable

42

Collar screw M16x1.5 AF17 Al

0900001601201

Unavailable

44

Steering head seal

A53501084000

Unavailable

45

TAPERED ROLLER BEARING 32004X

49001081000

Unavailable

46

Steering head seal

0780000304400

Unavailable

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

92

Fork protection kit 50/65 SX

46301094000ABE

Unavailable

94

Clamp for brake hose

46301085000FB

Unavailable

95

SCREW F. PLASTIC K60X20AL SW6

0017060206

Unavailable

99

HANDLEBAR SUPPORT KIT D28/H37

00050000921

Unavailable
