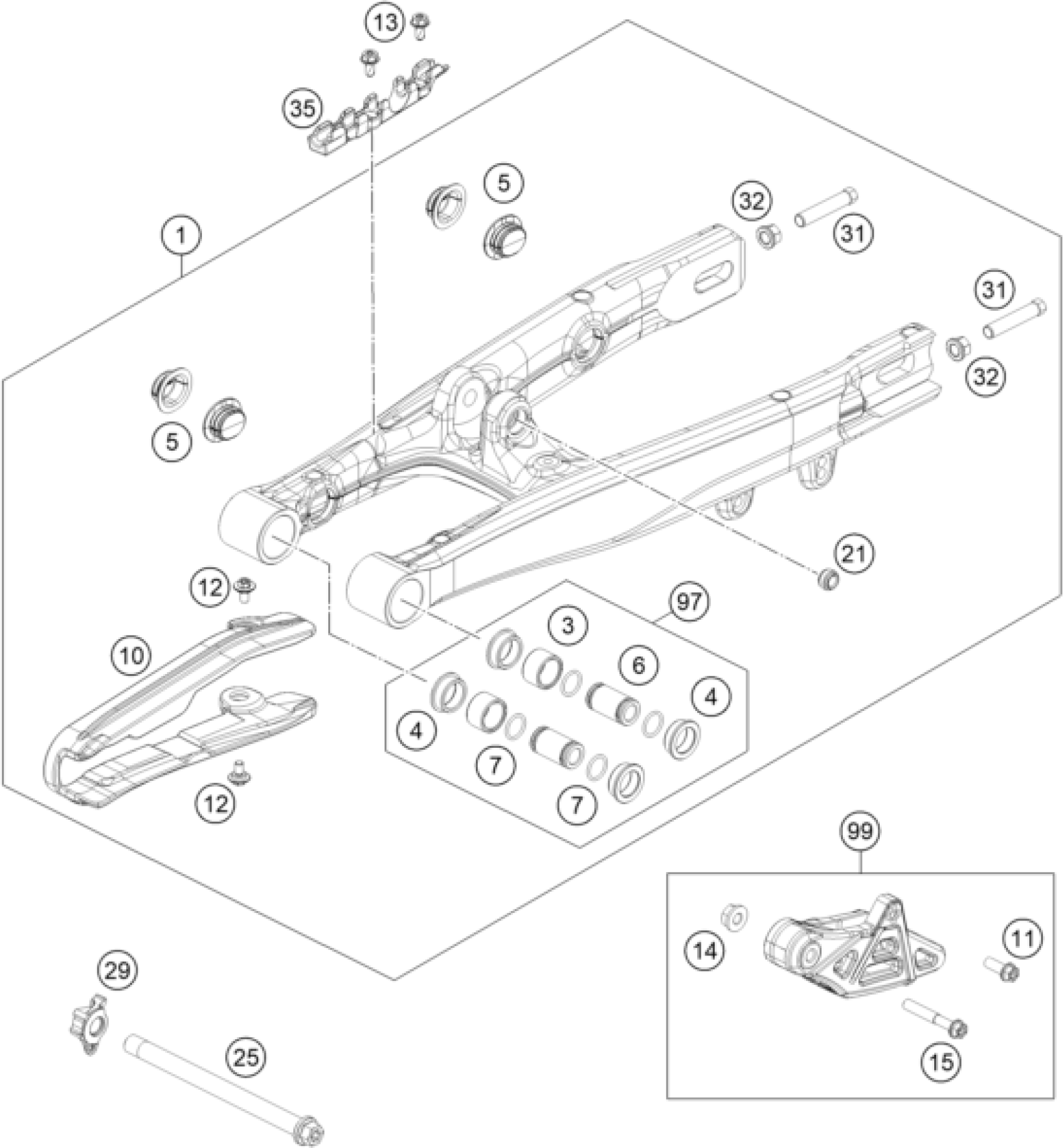

KTM 50 SX 2024 SWING ARM Diagram

#

Description
Price

1

Schwing arm cpl

45404030044

Unavailable

3

Needle bushing HK 2016 / 20x26

54603097000

Unavailable

4

Spacer bushing 20X26X30X9.7

46004030070

Unavailable

5

Locking cap, swingarm

45404041000

Unavailable

6

Bearing bush 12x20x36.5

46004030071

Unavailable

7

O-ring 16x2 Viton 75

0770160021

Unavailable

10

Chain sliding protection

45404066000

Unavailable

11

HH collar screw M6x16 TX30

0025060166

Unavailable

12

special screw M6x12x3

83008000012

Unavailable

13

EJOT SPIRAL SCREW SF M5X10-K

0009050106

Unavailable

14

Self locking nut M6 - 10

56509064100

Unavailable

15

HH collar screw M6x40 TX30

0025060406

Unavailable

21

ADAPTOR NUT M10

69004095000

Unavailable

25

Swingarm pivot

A40004037000

Unavailable

26

Collar nut, M12x1, right

49030021100

Unavailable

31

HH SCREW M8X40 WS=10

50203030090

Unavailable

32

flanged nut M8 WS10

46030045000

Unavailable

35

Brake line guide

A40013047000

Unavailable

97

SWINGARM REP. KIT 50/65 SX

45204230010

Unavailable

99

CHAIN GUIDE KIT REAR 2016

46307066010

Unavailable
