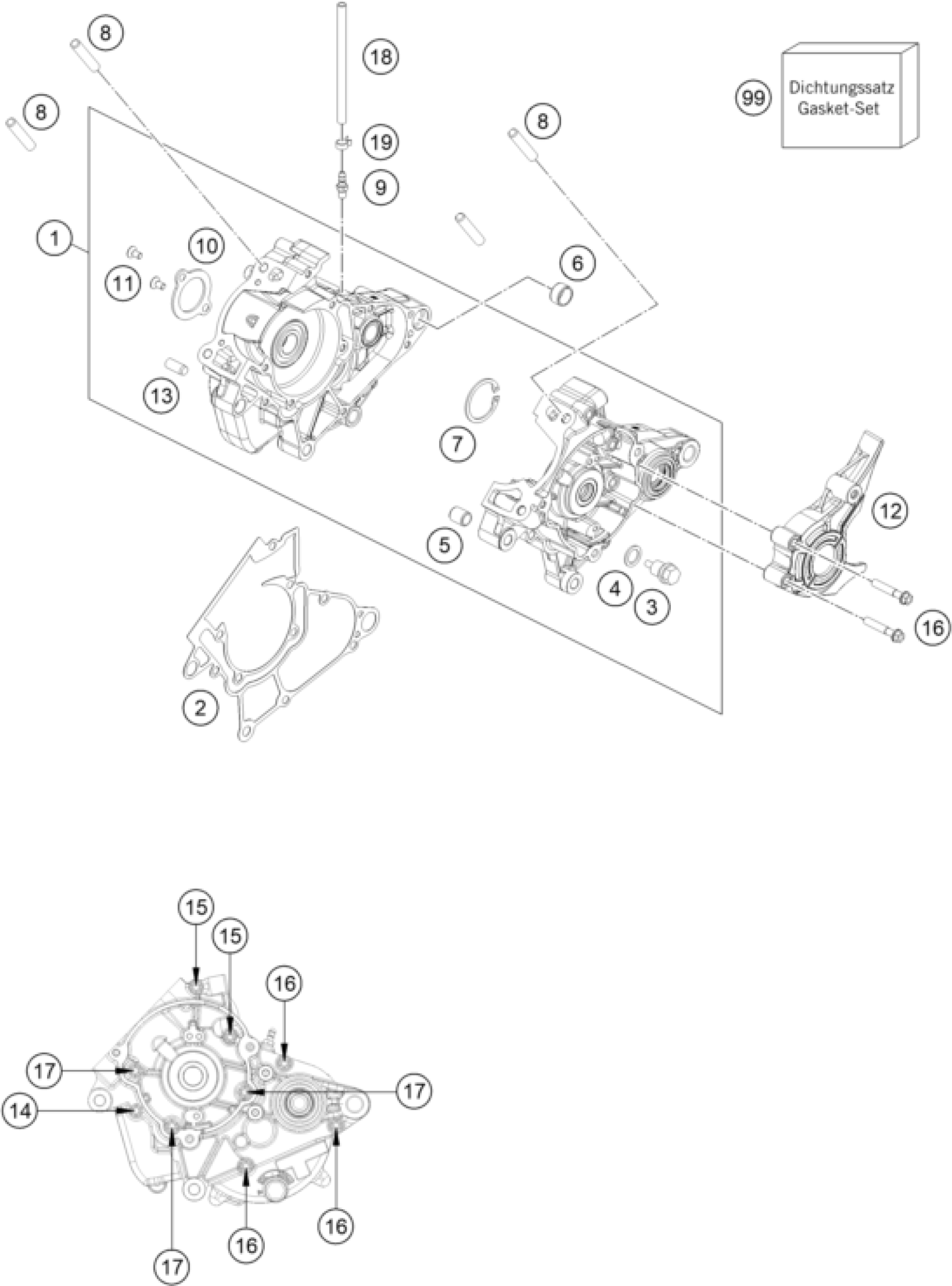

KTM 50 SX 2024 ENGINE CASE Diagram

#

Description
Price

1

Motorhousing cpl.

A40030000044

Unavailable

2

ENGINE CASE GASKET

45230039000

Unavailable

3

oildrain plug with magnet

58030021100

Unavailable

4

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

5

DOWEL 12X9X14,5

46230024000

Unavailable

6

DOWEL 17 X 14 X 9,5

58330023000

Unavailable

8

STUD M8X41

46030043000

Unavailable

9

VACUUM CONECTION M6/3MM '97

58336020190

Unavailable

10

BEARING BRACKET

45230017000

Unavailable

11

hex lobe countersunc screw M5x

0019050106S

Unavailable

12

Front sprocket cover

A40003096000

Unavailable

14

HH collar screw M6x35 TX30

0025060356

Unavailable

13

CYLINDER STUD DIN6325 8X20 M6

0325080200

Unavailable

15

HH collar screw M6x55 TX30

0025060556

Unavailable

16

HH collar screw M6x30 TX30

0025060306

Unavailable

17

HH collar screw M6x40 TX30

0025060406

Unavailable

18

PVC-HOSE 4X6MM

31007007101

Unavailable

19

YDNAC-CLAMP 10068 (6,8MM)

45230089000

Unavailable

99

GASKET KIT 50

A40030099000

Unavailable

7

CIRCLIP DIN0472-35X1,5

0472035150

Unavailable
