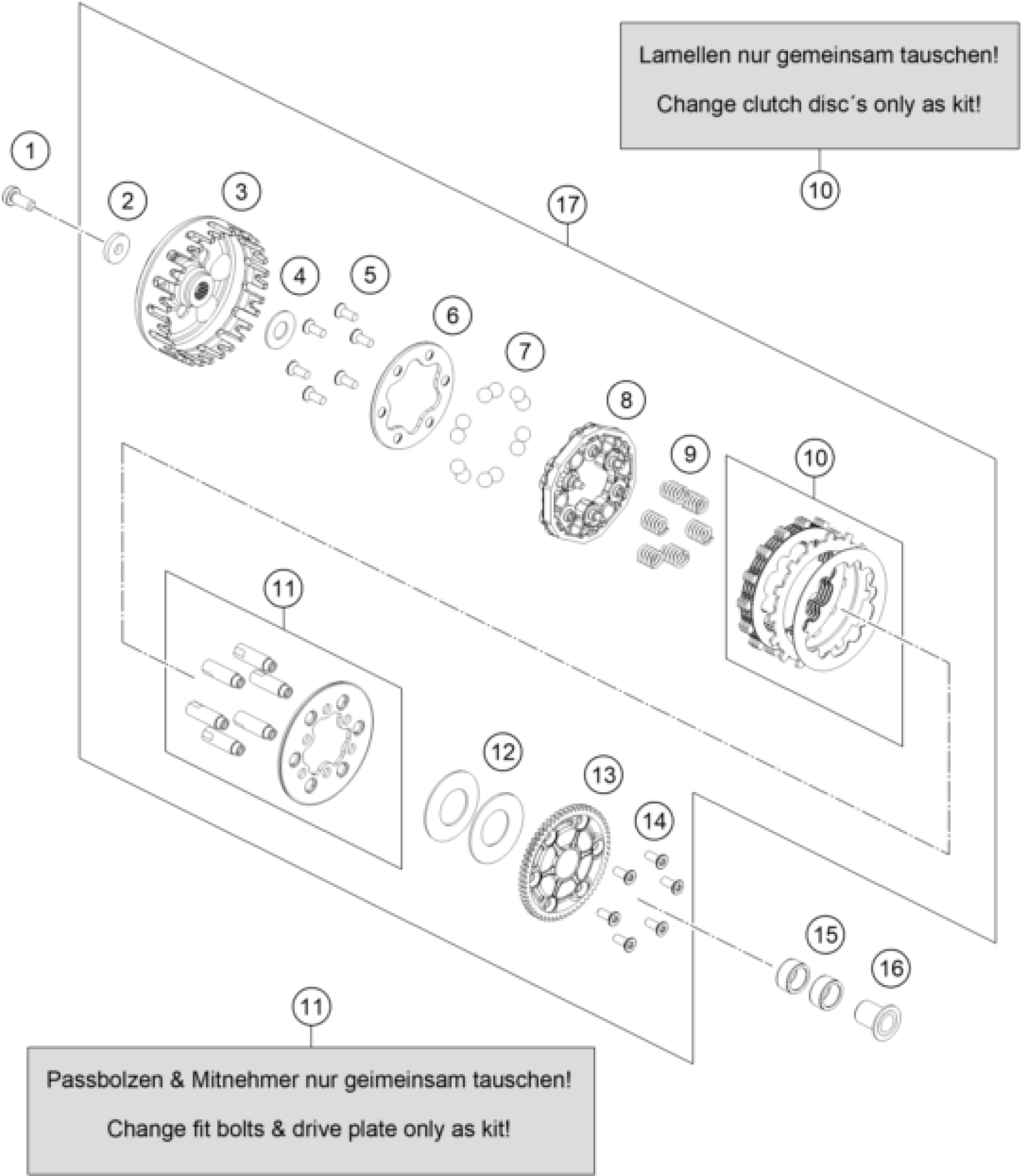

KTM 50 SX 2024 CLUTCH Diagram

#

Description
Price

1

SHCS M8x20 TX45

0035080206S

Unavailable

2

WASHER DIN 6340 8,4X23X4

0340084234

Unavailable

3

Outer clutch hub

A40032001000

Unavailable

4

STOP DISK 14X30X1,5 STEEL

75034050000

Unavailable

5

Hex screw ISO10642-M6x16 self-

010642060166S

Unavailable

6

PRESSURE PLATE

45232103000

Unavailable

7

BALL D=11MM

0401110000

Unavailable

8

Spherical Basket cpl.

A40032039044

Unavailable

9

Clutch spring 17.3mm

0020981172300

Unavailable

10

Clutch plate pack

A40032010033

Unavailable

11

FIT BOLT WITH DRIVE PLATE

45232107244

Unavailable

12

Spring washer DIN 2093

0020932816000

Unavailable

13

Primary gear 61Z

A40032124061

Unavailable

14

Hex screw ISO10642-M6x16 self-

0106420601602S

Unavailable

15

NEEDLE BEARING 18X24X12A

0402182412

Unavailable

16

Inner ring

45232013100

Unavailable

17

Axial coupling cmpl.

A40032000044

Unavailable
