CARBURETOR

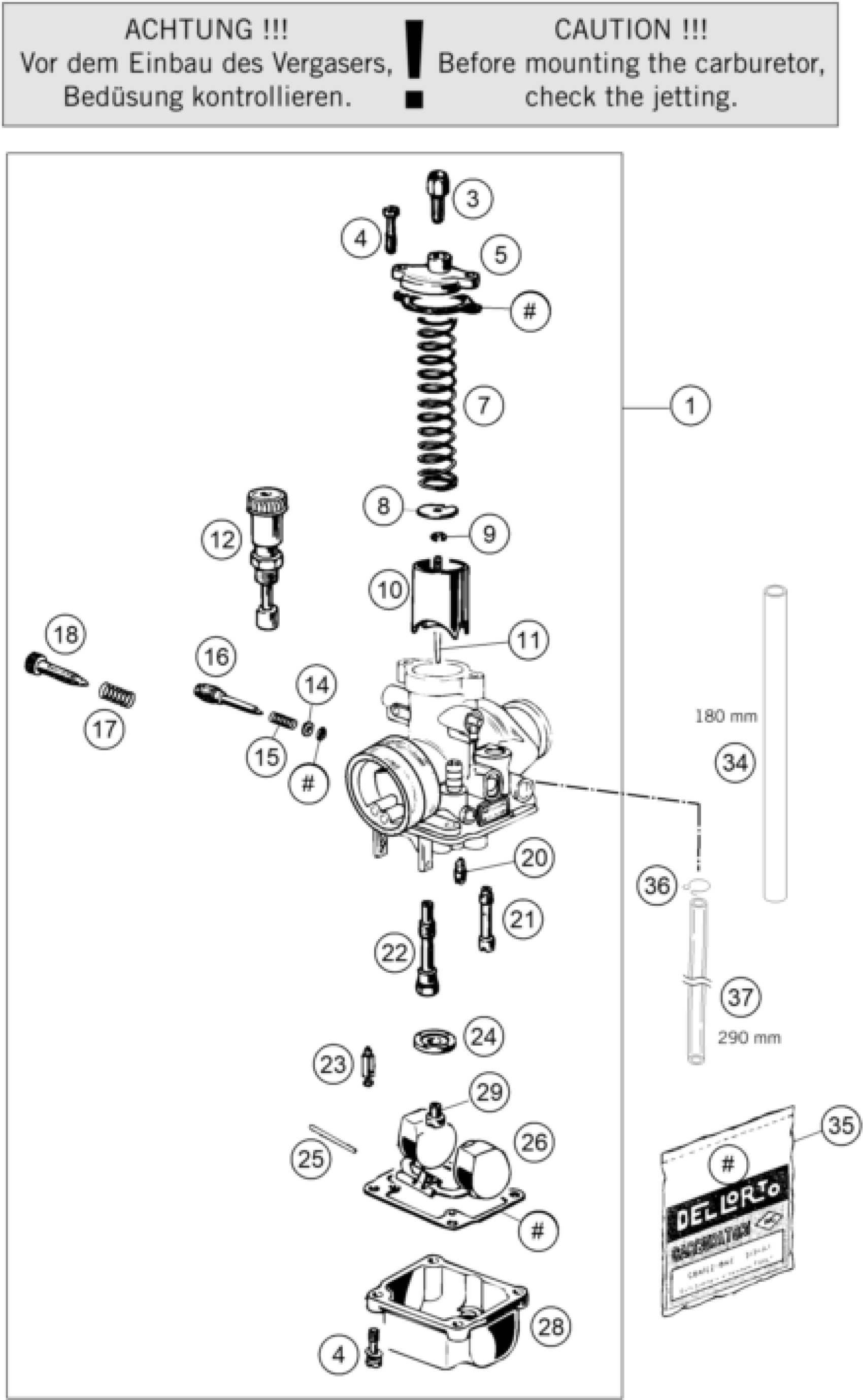

KTM 50 SX 2018 CARBURETOR Diagram
#
1
CARBUR. DELLO. PHBG 19 BS 2001
45131001100
Unavailable
3
ADJUSTMENT SCREW M6X0,75
57031525000
Unavailable
4
HH COLLAR SCREW M 4X16 WS=6
0016040163
Unavailable
5
CARBURETOR COVER DELLORTO 19
45131027000
Unavailable
7
SPRING DELLORTO
45131030000
Unavailable
8
RETAINING SPRING DELLORTO
45131109000
Unavailable
9
TAB WASHER DIN6799-RS 2,5
0799025055
Unavailable
10
THR. VALVE DELLO.19 60 2001
45131035000
Unavailable
10
THR. VALVE DELLO.40 2008
45131035040
Unavailable
11
JET NEEDLE W7
45131034007
Unavailable
11
JET NEEDLE W9
45131034009
Unavailable
12
STARTING BUTTON DELLORTO 19
45131048000
Unavailable
14
WASHER 3,3 X 5,8 X 0,5
57031572000
Unavailable
15
SPRING DELLORTO
45131015000
Unavailable
16
AIR ADJUST SCREW DELLORTO
45131017000
Unavailable
17
SPRING
45131518000
Unavailable
18
IDLE ADJUST SCREW
45131019000
Unavailable
20
IDLING JET 45 DELLORTO
45131007045
Unavailable
20
IDLING JET 48 DELLORTO
45131007048
Unavailable
20
IDLING JET 50 DELLORTO
45131007050
Unavailable
20
IDLING JET 52 DELLORTO
45131007052
Unavailable
20
IDLING JET 55 DELLORTO
45131007055
Unavailable
20
IDLING JET 58 DELLORTO
45131007058
Unavailable
21
START JET 60 DELLORTO
45131051060
Unavailable
22
NEEDLE JET 260
45131021260
Unavailable
22
NEEDLE JET 262
45131021262
Unavailable
23
FLOATING NEEDLE VALVE DELLORTO
45131020000
Unavailable
24
COVER DELLORTO
45131074000
Unavailable
25
PIN DELLORTO
45131008000
Unavailable
26
FLOAT 4 GR.
45131009000
Unavailable
28
FLOAT BOWL DELLORTO 19
45131011000
Unavailable
29
MAIN JET 80 DELLORTO
15131123080
Unavailable
29
MAIN JET 85 DELLORTO
15131123085
Unavailable
29
MAIN JET 90 DELLORTO
15131123090
Unavailable
29
MAIN JET 95 DELLORTO
15131123095
Unavailable
34
FUEL HOSE VITON 6X1,5 PER/M
58307016001
Unavailable
35
GASKET SET DELLORTO 19
45131099000
Unavailable
36
Clamp 6mm
54531696000
Unavailable
37
PVC-HOSE 4X6MM
31007007101
Unavailable
