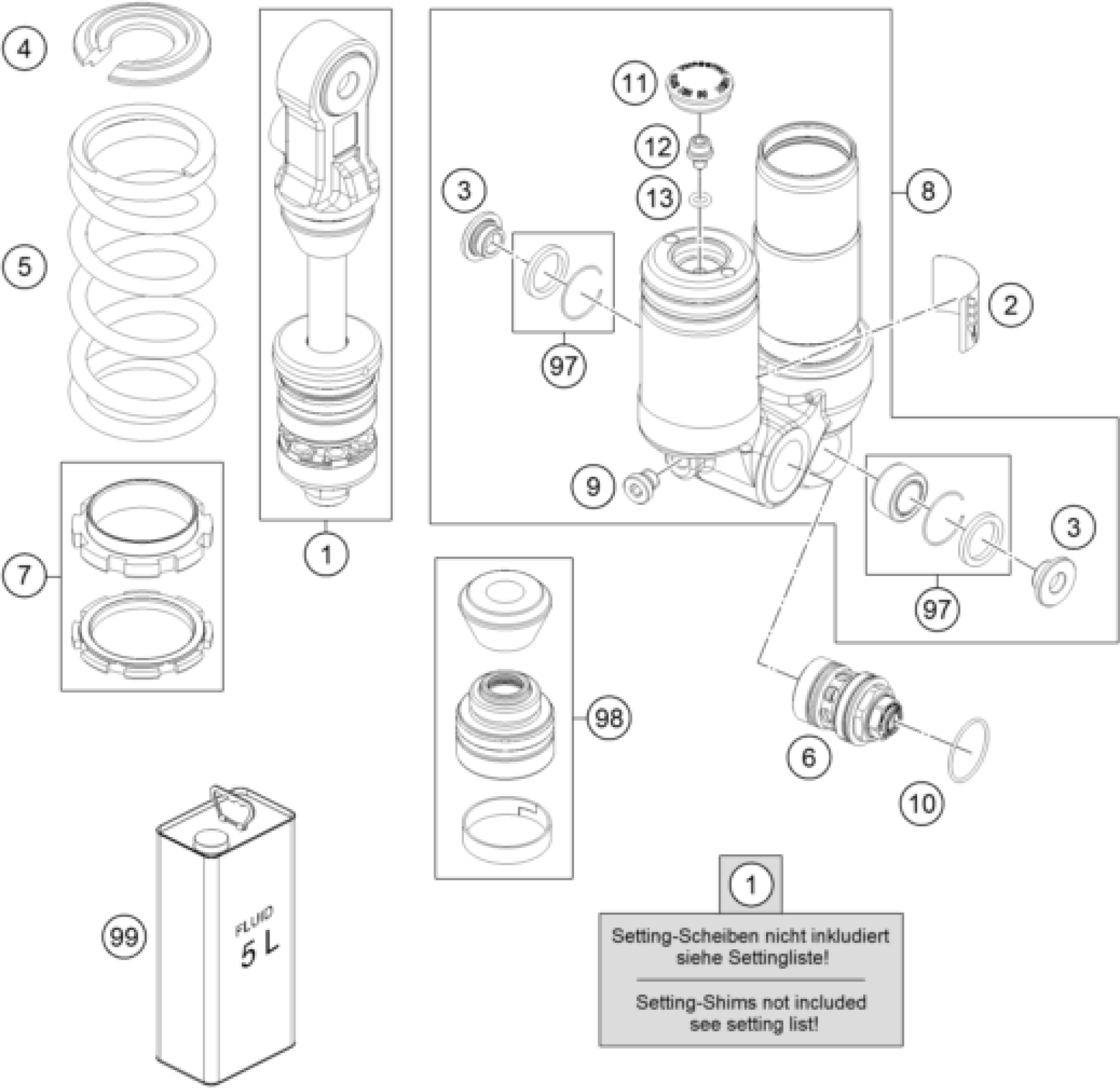

KTM 50 SX 2017 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

11

Rubber cap do not open 22x5,5

46811208

Unavailable

12

HS lock screw M5x6

36120151

Unavailable

13

O-ring 5,28x1,78 NBR70 black

46810893

Unavailable

97

Ball joint bearing kit top 12m

R12012

Unavailable

98

REP. KIT MONOSHOCK MINI 17

RP10003

Unavailable

99

SHOCK ABSORBER FLUID 5 LT

50180751S1

Unavailable

1

AXLECLAMP PART WITH PISTON ROD

36120781S16

Unavailable

2

STICKER WP WARNING

52000173

Unavailable

3

Distance bush 10x15/18/24,5x9,

46180009

Unavailable

4

Spring retainer 27x57x2

36120386

Unavailable

5

SHOCK SPRING 35N/MM - 130MM WH

93010217S

Unavailable

5

SHOCK SPRING 30N/MM - 130MM WH

93010218S

Unavailable

5

SHOCK SPRING 40N/MM - 130MM WH

93010219S

Unavailable

6

Compression cpl.

50181101S7

Unavailable

7

ADJUSTING NUT CPL.

36120418S

Unavailable

8

MONOSHOCK CASE WITH PIPE CPL.

36120858S1

Unavailable

9

HS cylinder-head screw R1/8 l8

50180095

Unavailable

10

O-ring 27x1,5 Viton70 green IS

50180217

Unavailable
