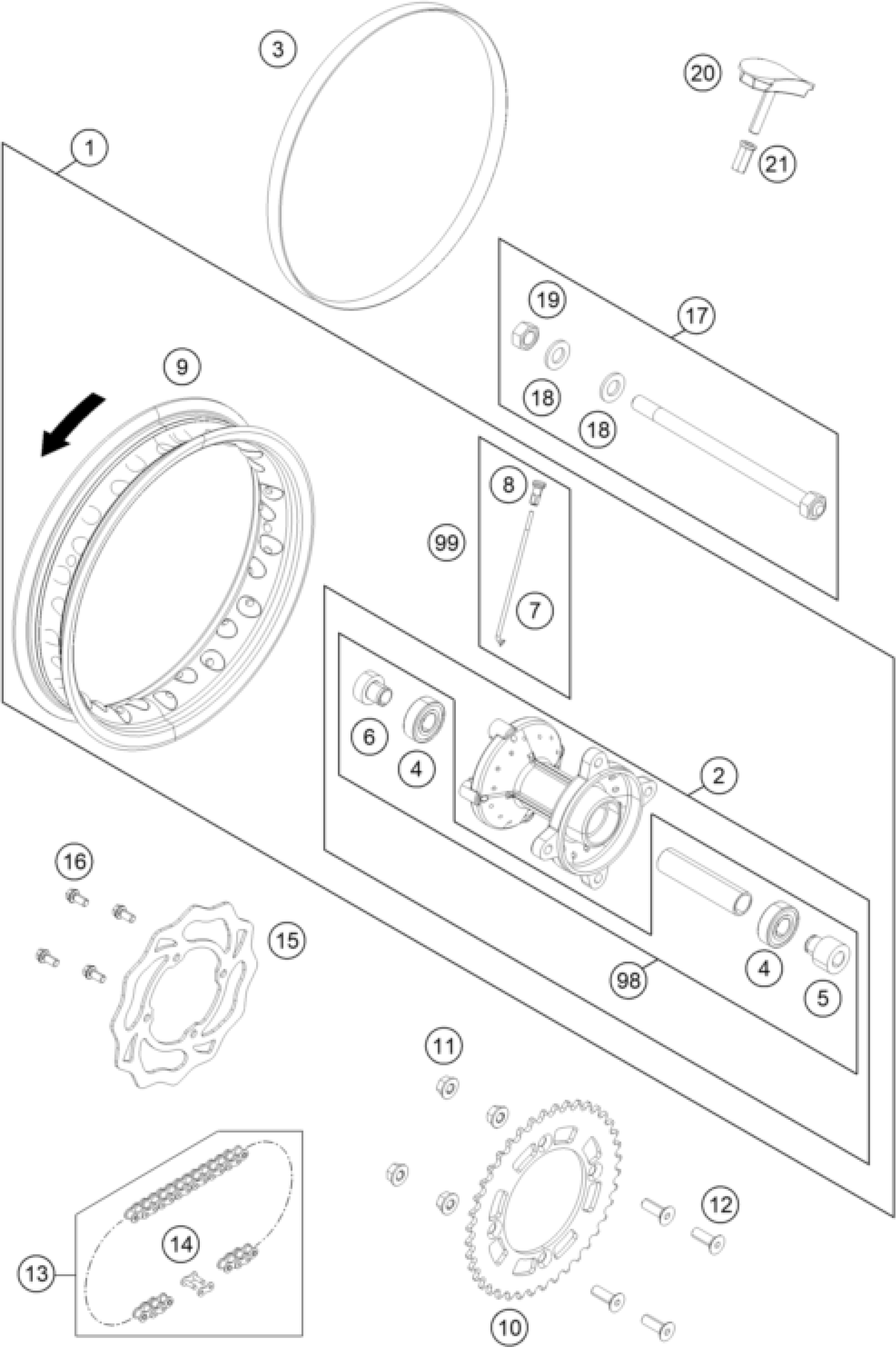

KTM 50 SX 2014 REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL 50SX/MINI 2014

45210001444

Unavailable

2

REAR WHEEL HUB CPL.

45210010044

Unavailable

4

BALL BEARING 6202-2RSH/C3

0625062028

Unavailable

5

SPACER BUSHING REAR L/S

45210013000

Unavailable

6

SPACER BUSHING REAR R/S

45210014000

Unavailable

7

SPOKE 3X101 C.113°

45210071101

Unavailable

8

SPOKE NIPPLE ALU

46210072000

Unavailable

9

REAR RIM 10''X1.6 BLK. 2012

4521007010030

Unavailable

10

SPROCKET 38-T 50SX ´13

45210151038

Unavailable

10

Sprocket 39-T 50SX

45210151039

Unavailable

10

SPROCKET 40-T 50SX ´13

45210151040

Unavailable

10

Sprocket 41-T 50SX

45210151041

Unavailable

10

SPROCKET 42-T 50SX ´13

45210151042

Unavailable

11

Self locking nut M8 10.9

54310086200

Unavailable

12

FLAT HEAD SCREW DIN7991-M 8X25

0991080253

Unavailable

13

RACING CHAIN 1/2X3/16'' 50 SX

45110265104

Unavailable

14

CONNECTING LINK 1/2X3/16'' 90R

45110266000

Unavailable

15

BRAKE DISC FRONT JUN/SEN 09

45209060000

Unavailable

16

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

Unavailable

17

AXLE CPL. 207MM M12X1

46010085044

Unavailable

18

FLAT WASHER DIN0125-A13

0125120003

Unavailable

19

Nut M12x1 h10 WAF19 DIN 934

0934120103

Unavailable

20

Rim lock 2004

45110090000

Unavailable

21

NUT FOR WHEEL HOLDER

77110090050

Unavailable

99

SPOKE KIT REAR 10''

00050000969

Unavailable

3

RIM BAND 10'' 22MM

45009073000

Unavailable

98

REAR WHEEL REP. KIT 50 SX

45210015000

Unavailable
