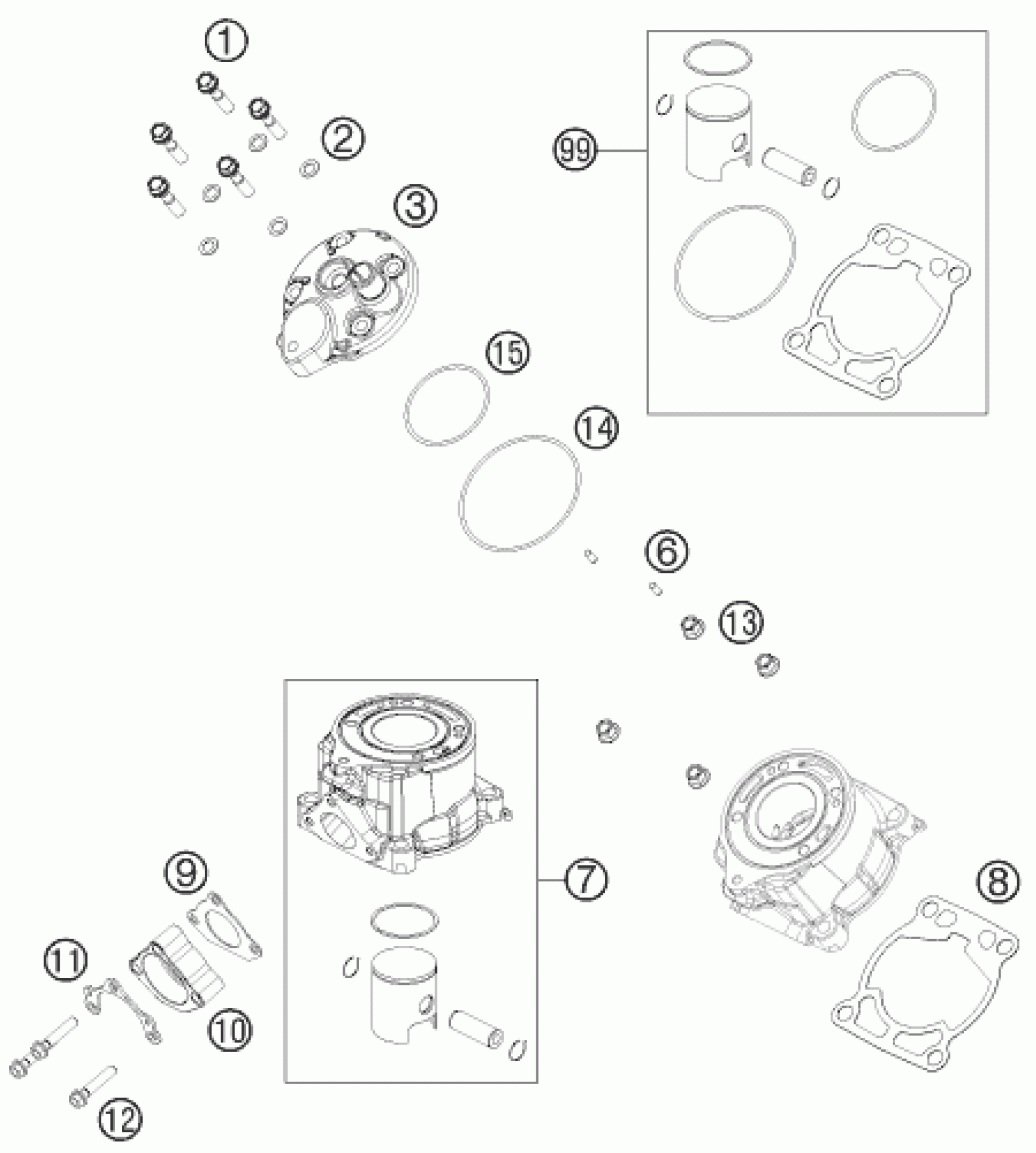

KTM 50 SX 2012 CYLINDER, CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD SCREW

50430079000

Unavailable

2

CU-SEAL RING DIN7603- 7,3X12X1

0603070121

Unavailable

3

CYLINDER HEAD

45230006000

Unavailable

6

Needle roll.DIN5402 NRB 4X9.8

0402040980

Unavailable

7

CYLINDER + PISTON

45230038000

Unavailable

8

CYLINDER BASE GASKET 0,6MM

46230035060

Unavailable

8

CYLINDER BASE GASKET 0,5 MM

46230035050

Unavailable

8

CYLINDER BASE GASKET 0,4 MM

46230035040

Unavailable

8

CYLINDER BASE GASKET 0,2 MM

46230035020

Unavailable

9

EXHAUST FLANGE GASKET

45205004000

Unavailable

10

EXHAUST FLANGE

45205003000

Unavailable

11

BRACKET FOR SPRINGHOLDER

46205003050

Unavailable

12

HH collar screw M6x30 TX30

0025060306

Unavailable

13

flanged nut M8 WS10

46030045000

Unavailable

14

O-RING 78,00X2,00 VIT. BLACK

0770078020

Unavailable

15

O-RING 52,00X2,0 VITON 75

0770052020

Unavailable

99

PISTON KIT GR.II 50 SX/TC

00050000209

Unavailable

99

PISTON KIT GR.I 50 SX/TC

00050000208

Unavailable
