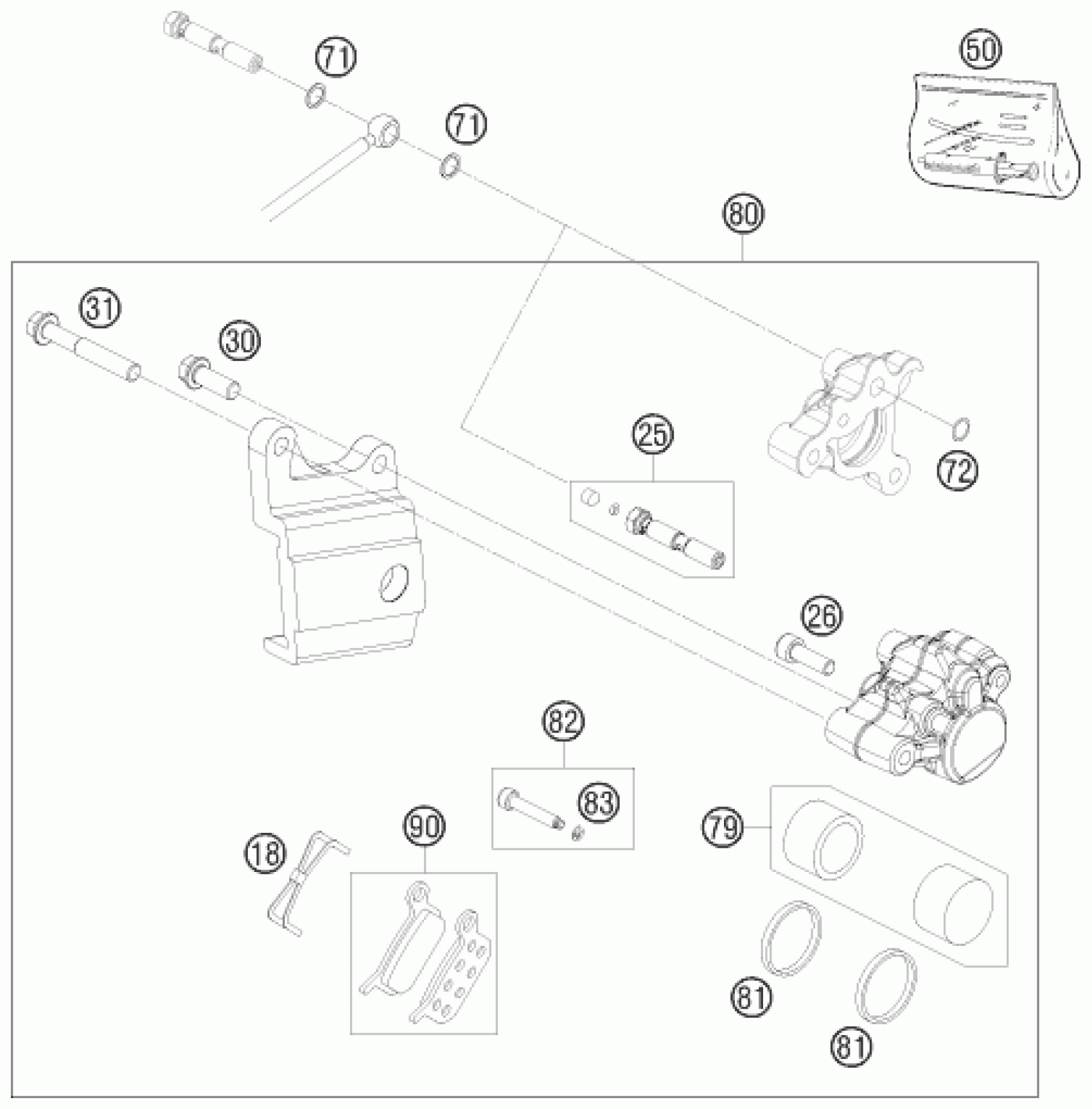

KTM 50 SX 2009 REAR BRAKE CALIPER Diagram

#

Description
Price

18

RETAINING SPRING 50 LC

45113018000

Unavailable

30

HH collar screw M6x20 TX30

0025060206

Unavailable

50

BLEEDER INJECTION-SET 50-65

45119050000

Unavailable

71

O-ring 6.00X1.00 FORMULA

0770060019

Unavailable

72

O-RING 8,00X1,00 FORMULA

0770080019

Unavailable

79

REPAIR KIT BRAKEPISTON

45113019100

Unavailable

80

BRAKE CALIPER REAR CPL.50LC 04

45113080000

Unavailable

81

O-RING 22X2X2 EPDM

0770022020

Unavailable

82

AH SCREW + CIRCLIP 50/65 04

45113225000

Unavailable

83

TAB WASHER DIN6799 RS2,5

0799025000

Unavailable

90

BRAKE PAD SET 50 LC 2002

45113030000

Unavailable

25

HOLLOW SCREW CPL.

46113225000

Unavailable

26

AH collar screw DIN 912 M5x16

0912050163

Unavailable

31

HH collar screw M6x40 TX30

0025060406

Unavailable
