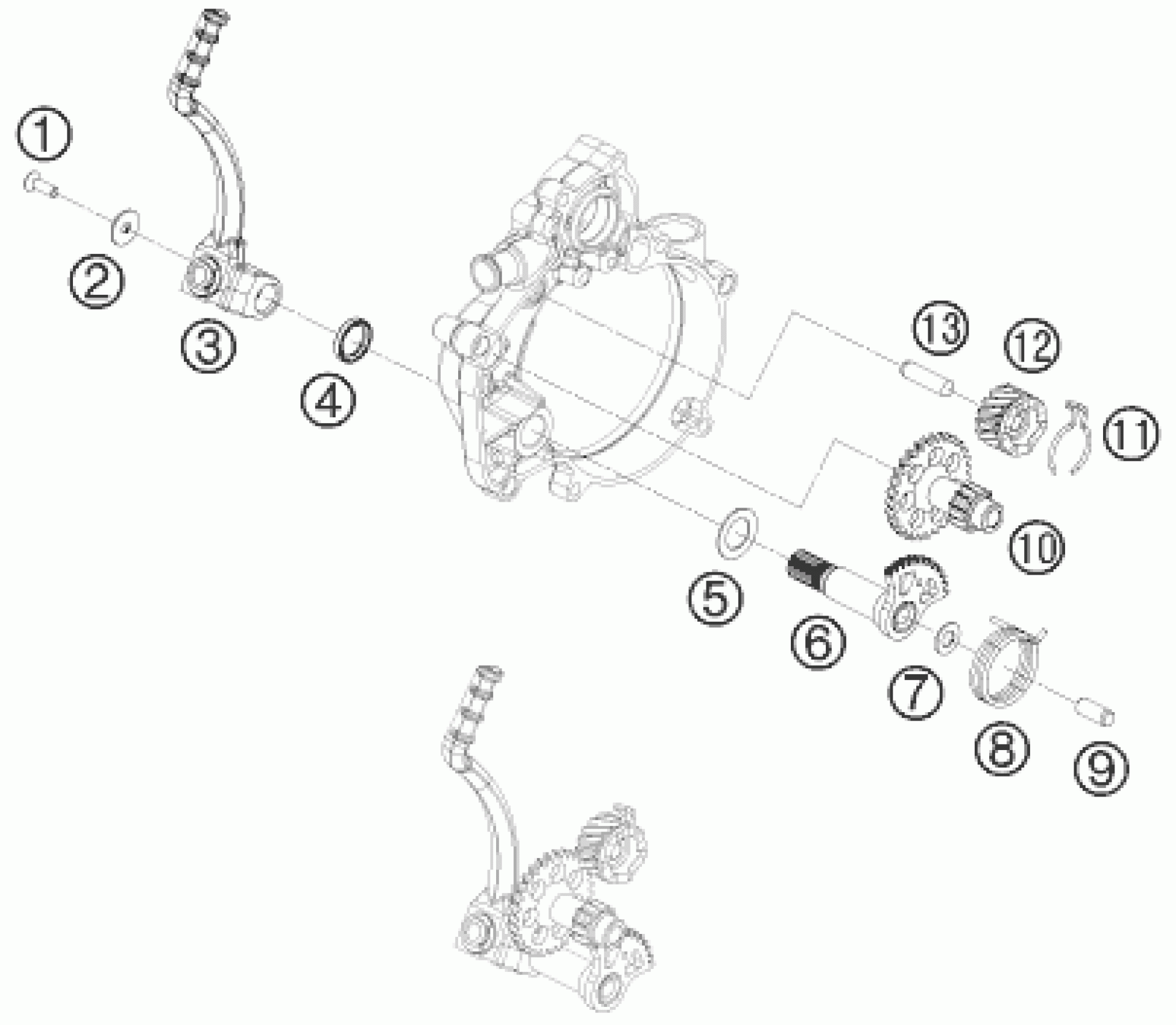

KTM 50 SX 2009 KICK STARTER Diagram

#

Description

Price

12

RATCHET GEAR

45233052016

Unavailable

13

CYLINDER STUD DIN6325 8X30 M6

0325080300

Unavailable

1

INT.TORX FLAT HEAD M 5X16 8.8

0019050163

Unavailable

2

SPECIAL WASHER FOR M5 03

60008045100

Unavailable

3

KICKSTARTER CPL.

45233070044

Unavailable

4

SHAFT SEAL RING BALANC. SHAFT

0760162240

Unavailable

5

WASHER 16,3X25,8X1

45233058000

Unavailable

6

KICK START SHAFT CPL.

45233050044

Unavailable

7

WASHER 8,2X16X1

45233057000

Unavailable

8

KICKSTARTER SPRING

45233054000

Unavailable

9

CYLINDER STUD DIN6325 8X20 M6

0325080200

Unavailable

10

KICKSTARTER SHAFT

45233053000

Unavailable

11

SPRING RATCHET GEAR

45233056000

Unavailable
