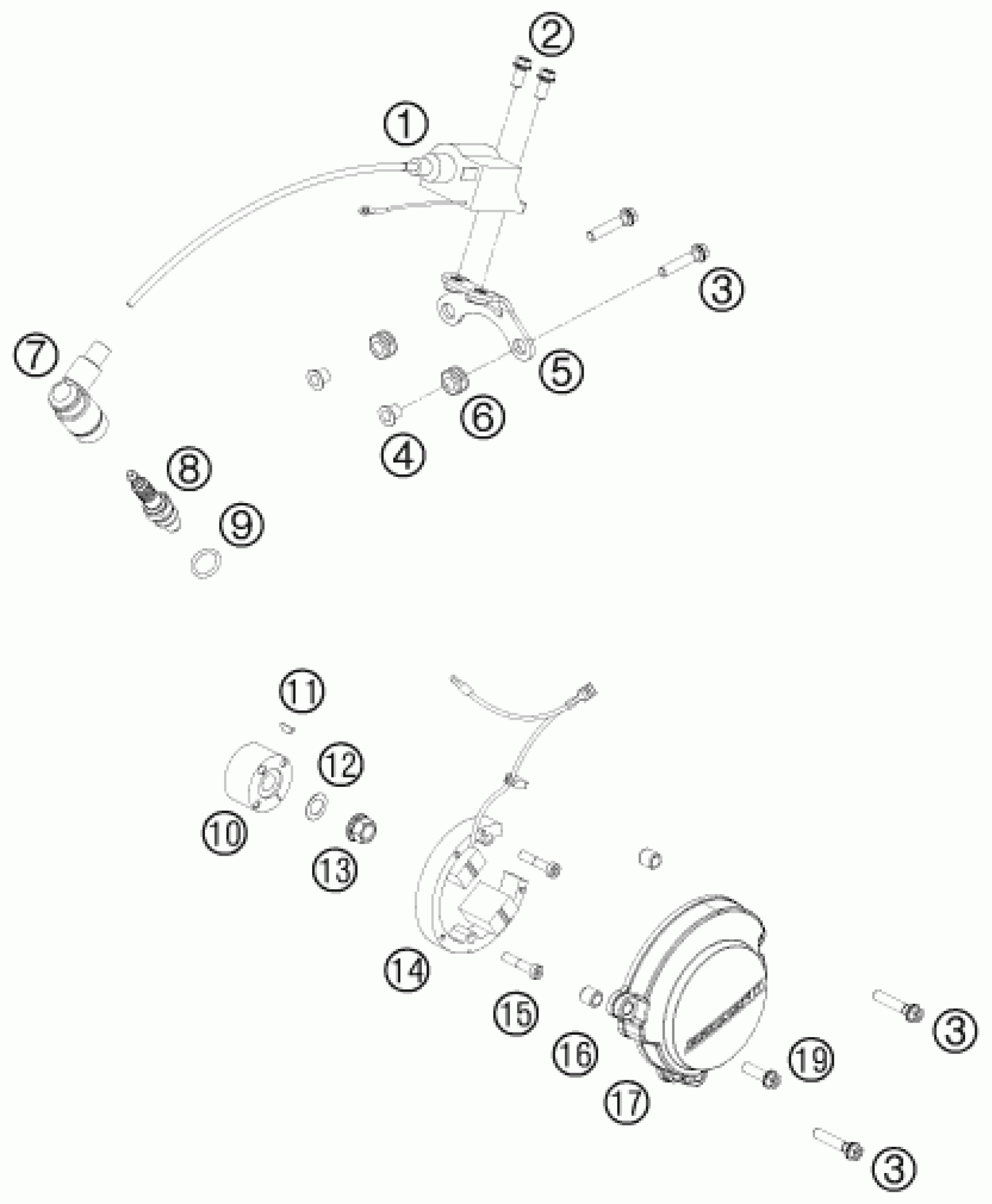

KTM 50 SX 2009 IGNITION SYSTEM Diagram

#

Description
Price

17

IGNITION COVER

45230002000

Unavailable

14

FLYWHEEL STATOR 50CCM LC 2001

45139004000

Unavailable

1

IGNITION COIL 50CCM LC 2001

45139006000

Unavailable

2

HH collar screw M6x12 TX30

0025060126

Unavailable

3

HH collar screw M6x30 TX30

0025060306

Unavailable

4

spacer bushing for speedometer

58314060050

Unavailable

5

IGNIT. COIL RETAIN. PLATE CPL.

45239010000

Unavailable

6

rubber grommet D=8mm open

31008060000

Unavailable

7

SPARK PLUG CONNECTOR

46239090000

Unavailable

8

SPARK PLUG

45239093000

Unavailable

9

O-RING 12,00X3,0 VITON 75

0770012030

Unavailable

10

FLYWEEL ROTOR 50 2004

45139005100

Unavailable

11

WOODRUFF KEY DIN6888-2,5X3

0888025030

Unavailable

15

AH SCREW DIN6912 M5X25

0012050253

Unavailable

16

DOWEL 9,8X7X5.5

45230024000

Unavailable

19

HH collar screw M6x20 TX30

0025060206

Unavailable

12

WASHER 10,4X16,8X0,4

45132020000

Unavailable

13

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

18

HH collar screw M6x30 TX30

0025060306

Unavailable
