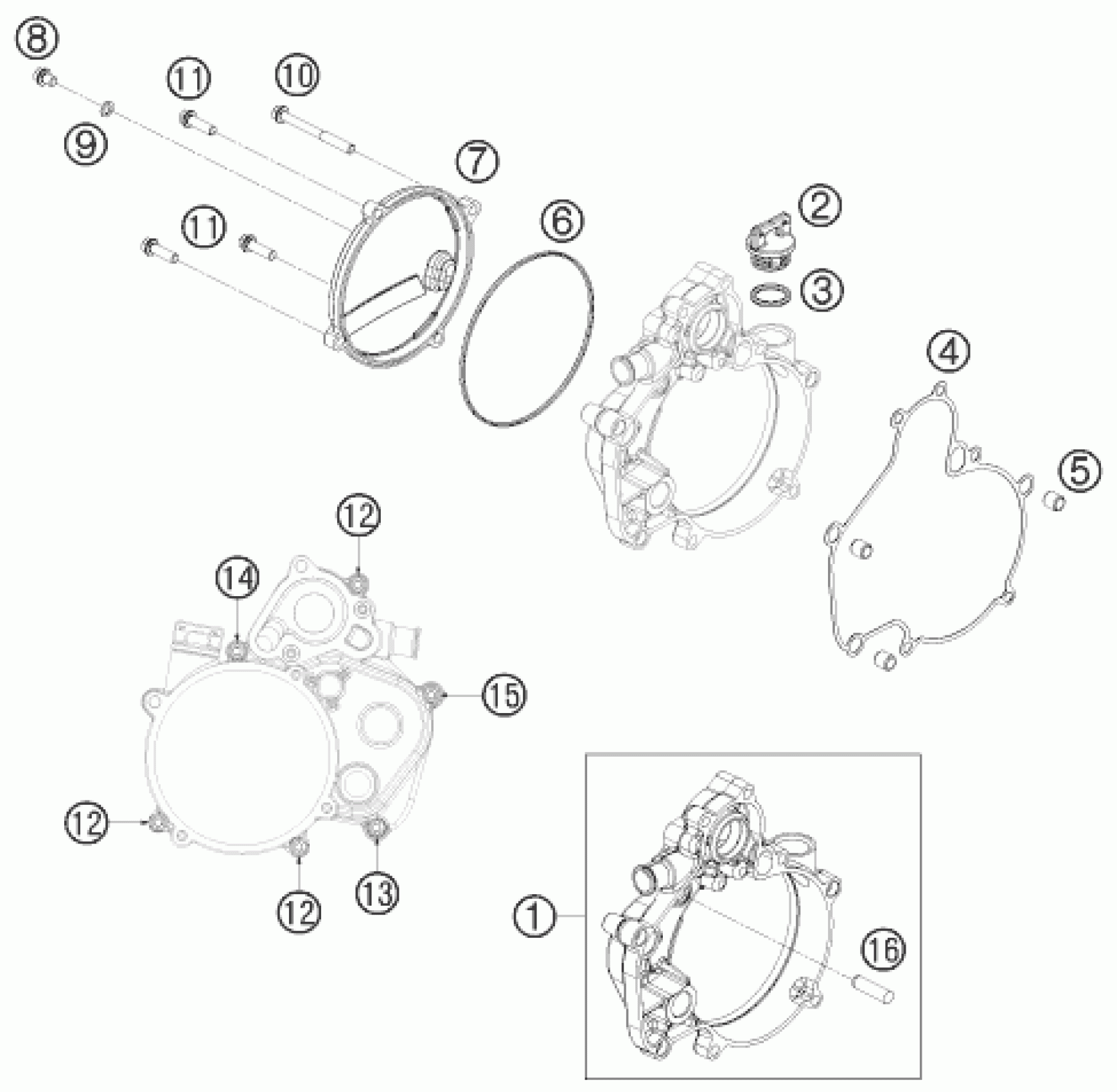

KTM 50 SX 2009 CLUTCH COVER Diagram

#

Description
Price

1

CLUTCH COVER INNER CPL.

45230001044

Unavailable

4

CLUTCH COVER GASKET INSIDE

45230025000

Unavailable

2

oil plug cpl. M24x3

58030020100

Unavailable

3

O-RING 19,00X3,00 NBR

0770191015

Unavailable

5

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

6

CLUTCH COVER GASKET

45230027000

Unavailable

7

CLUTCH COVER OUTSIDE

45230026000

Unavailable

8

HH collar screw M6x8 TX30

0025060086

Unavailable

9

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

10

HH collar screw M6x60 TX30

0025060606

Unavailable

11

HH collar screw M6x20 TX30

0025060206

Unavailable

12

HH collar screw M6x25 TX30

0025060256

Unavailable

13

HH collar screw M6x30 TX30

0025060306

Unavailable

14

HH collar screw M6x35 TX30

0025060356

Unavailable

15

HH collar screw M6x50 TX30

0025060506

Unavailable

16

CYLINDER STUD DIN6325 8X30 M6

0325080300

Unavailable
