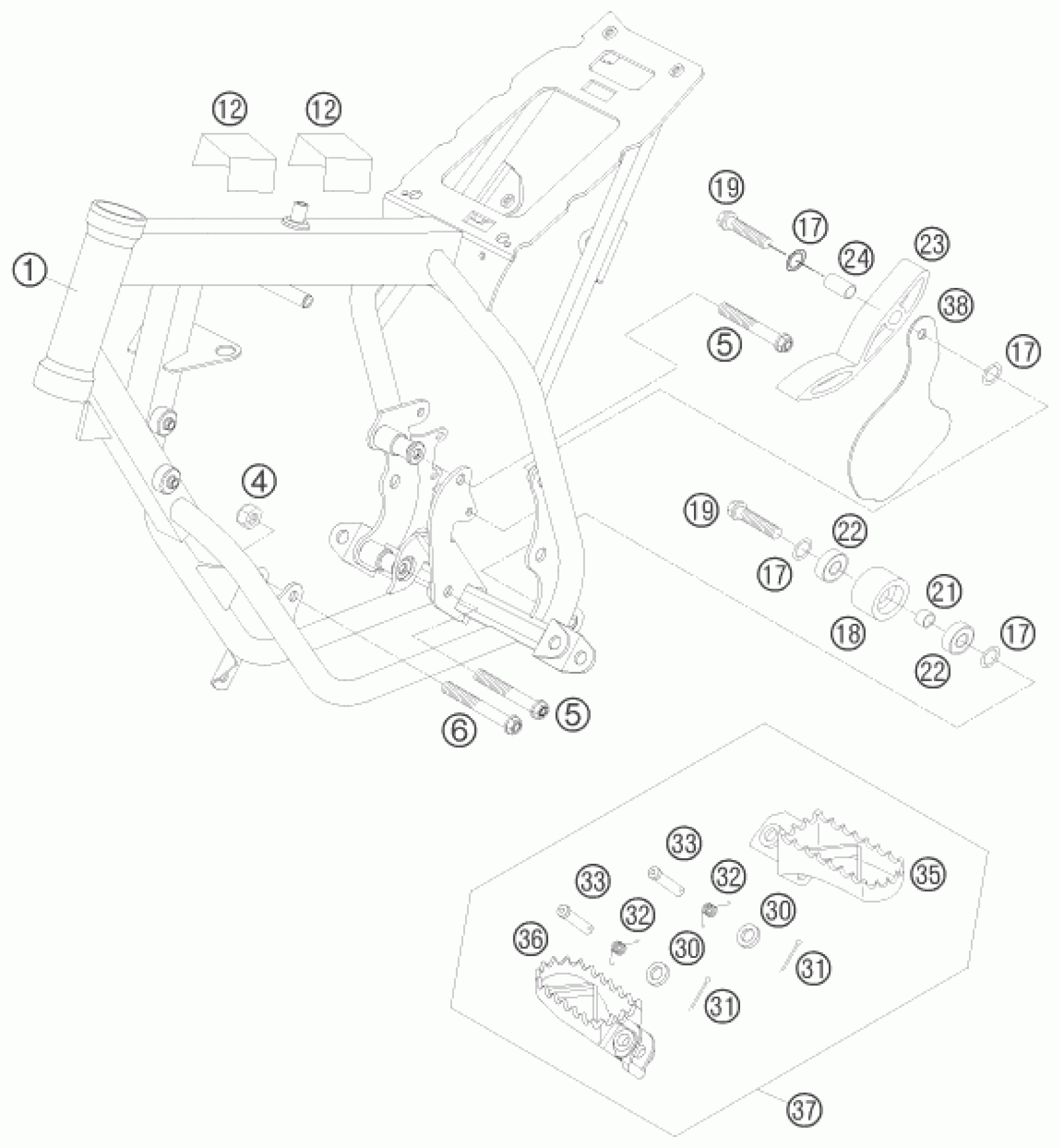

KTM 50 SX <2008> FRAME Diagram
#
Description
Price
1
FRAME PRO SENIOR ''MC4R'' bl.
4510300160030
Unavailable
4
Self locking nut M8 10.9
54310086200
Unavailable
5
HH COLLAR SCREW M8x60 TX40
0025080606
Unavailable
6
HH collar screw M8x65 TX40
0025080656
Unavailable
12
METAMOLL FOR BATTERY BRACKET
58711054050
Unavailable
17
LOCK WASHER 8MM
36003014000
Unavailable
18
CHAIN ROLL D=30MM
50203053000
Unavailable
19
HH collar screw M8x30
0025080306
Unavailable
21
BUSHING 8.2 X 12 X 6
74003021000
Unavailable
22
Grooved ball bearing 608 2RS C
0625006087
Unavailable
23
CHAIN SLIDING PIECE BELOW '97
51103053000
Unavailable
24
BUSHING 8,2X10X20
51103053051
Unavailable
30
washer DIN 125 A 10.5
0125100003
Unavailable
31
PIN DIN0094-3,2X25 STEEL
0094032253
Unavailable
32
FOOTREST SPRING L/S & R/S
54603041000
Unavailable
33
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
Unavailable
35
FOOT REST L/S SILVER
5460304000090
Unavailable
36
FOOT REST R/S SILVER '98
5460314000090
Unavailable
37
FOOTPEG L.+R. CPL. MINI 03
4510304013390A
Unavailable
38
CHAIN GUARD 08
45103096000
Unavailable
