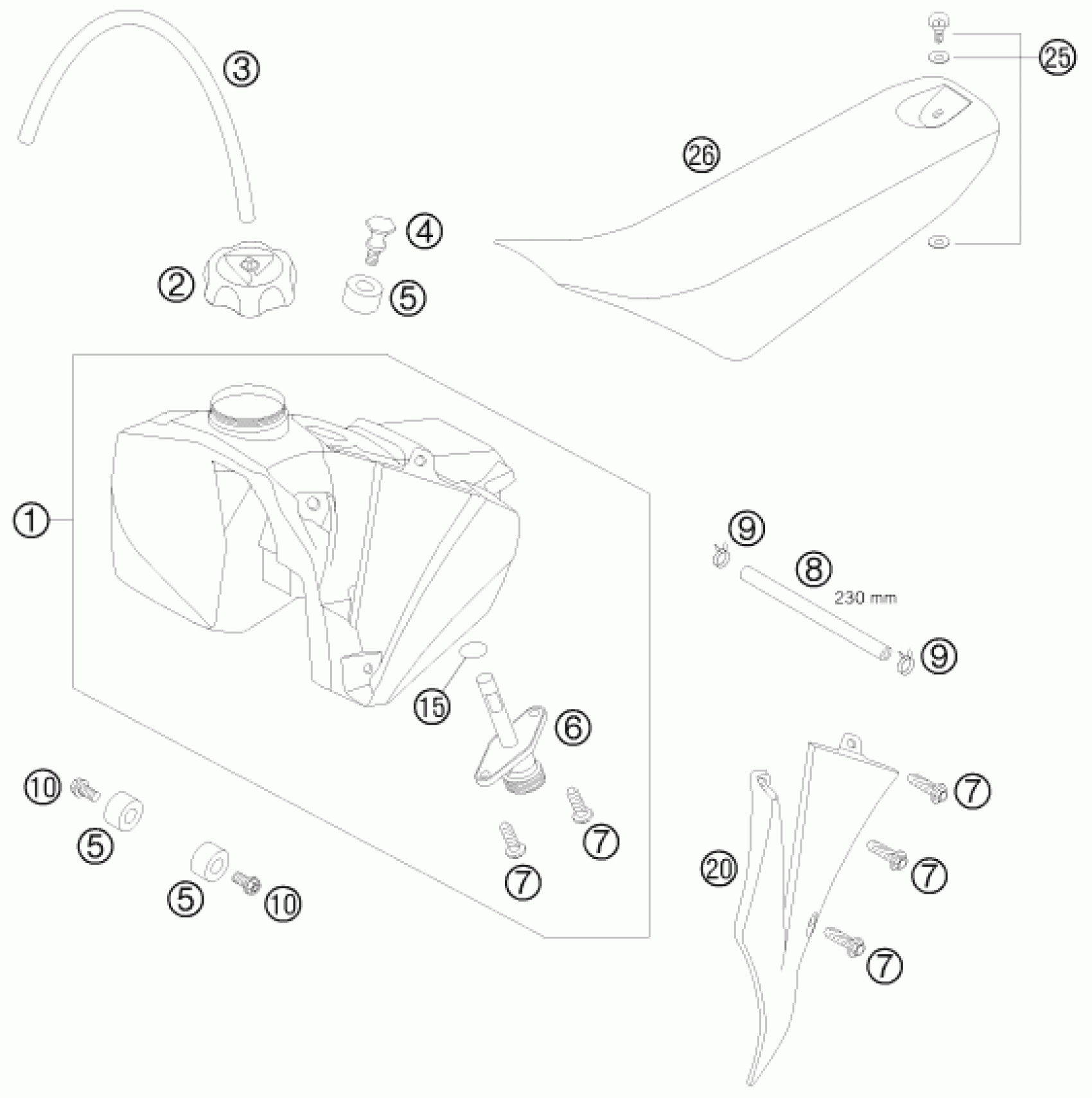

KTM 50 SX 2008 TANK, SEAT Diagram

#

Description
Price

1

FUEL TANK SX JUN/SEN ''LC''

4510701300030

Unavailable

2

FILLER CAP CPL. SMALL

49007008044

Unavailable

3

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

4

TANK SCREW MINI 50 2001

45107011000

Unavailable

5

TANK ROLLER 12X26X12 '98

50307014000

Unavailable

6

FUEL COCK CPL. SM. RALLYE'96

58507003000

Unavailable

7

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

8

FUEL HOSE VITON 6X1,5 PER/M

58307016001

Unavailable

9

YDNAC-CLAMP FUEL HOSE (8MM)

45031005000

Unavailable

10

HH collar screw M6x12 TX30

0025060126

Unavailable

15

O-RING 11X1,8 NBR 70

55007006200

Unavailable

20

SPOILER LEFT SX JUN/SEN 01

4510805000004

Unavailable

20

SPOILER RIGHT SX JUN/SEN 01

4510805100004

Unavailable

25

Quick lock

45007040051

Unavailable

26

SEAT 50 AC+LC 2005

45107040500

Unavailable
