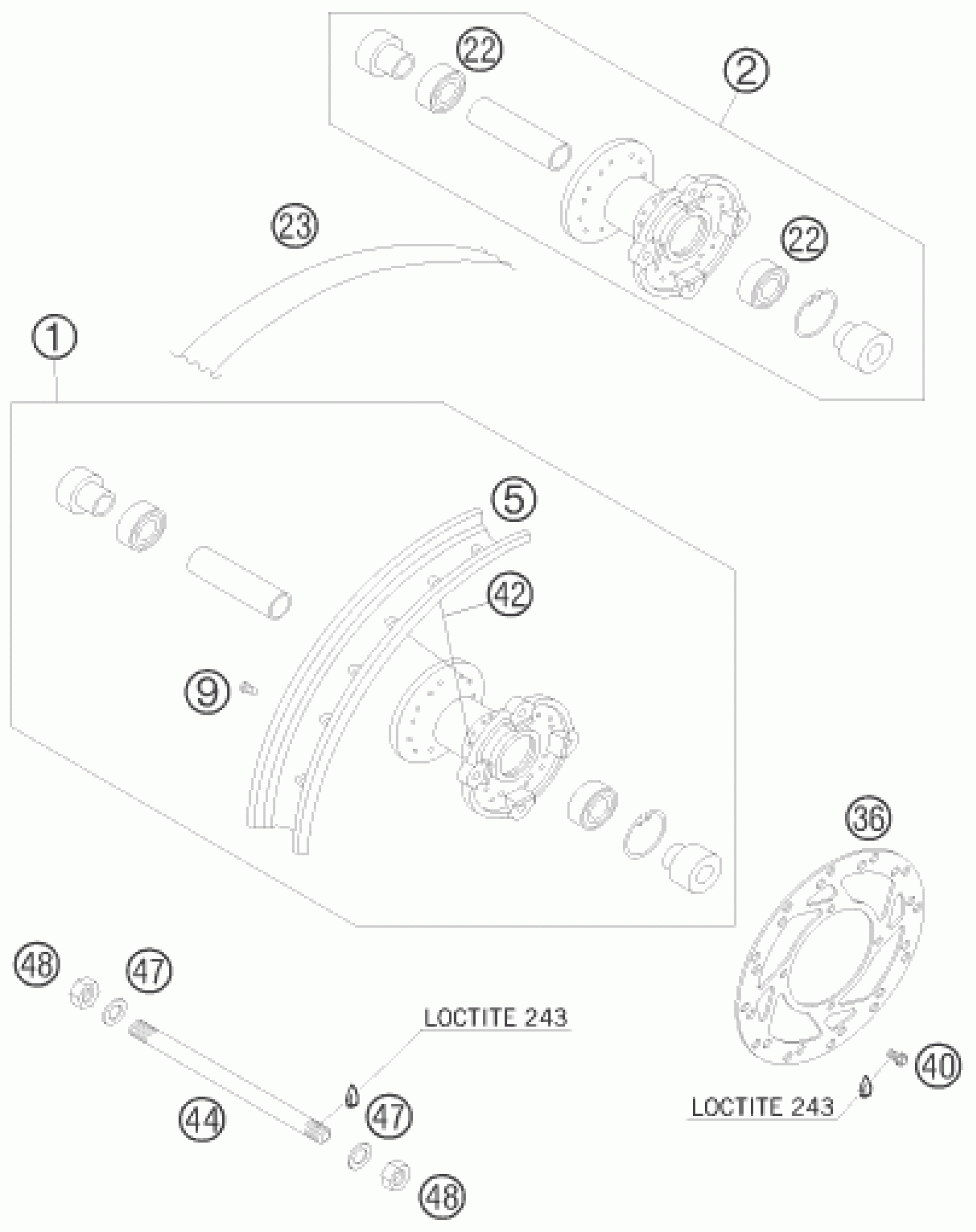

KTM 50 SX 2008 FRONT WHEEL Diagram

#

Description
Price

22

BALL BEARING 6202 2RS1 C3

0625062027

Unavailable

1

FRONT WHEEL CPL. 50 SX 2007

45109001544

Unavailable

9

SPOKE NIPPLE 3MM

45109072000

Unavailable

2

FRONT WHEEL HUB CPL. 2002

45109010044

Unavailable

5

RIM FRONT 1,5X12'' ALUMINIUM 0

45109070100

Unavailable

23

Rim band 12"

45109073100

Unavailable

36

BRAKE DISC FRONT JUN/SEN 02

45109060000

Unavailable

40

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

42

SPOKE 3X124X5MM-110° 02

45109071129

Unavailable

44

AXLE 207MM M12X1

46010085000

Unavailable

47

FLAT WASHER DIN0125-A13

0125120003

Unavailable

48

Nut M12x1 h10 WAF19 DIN 934

0934120103

Unavailable
