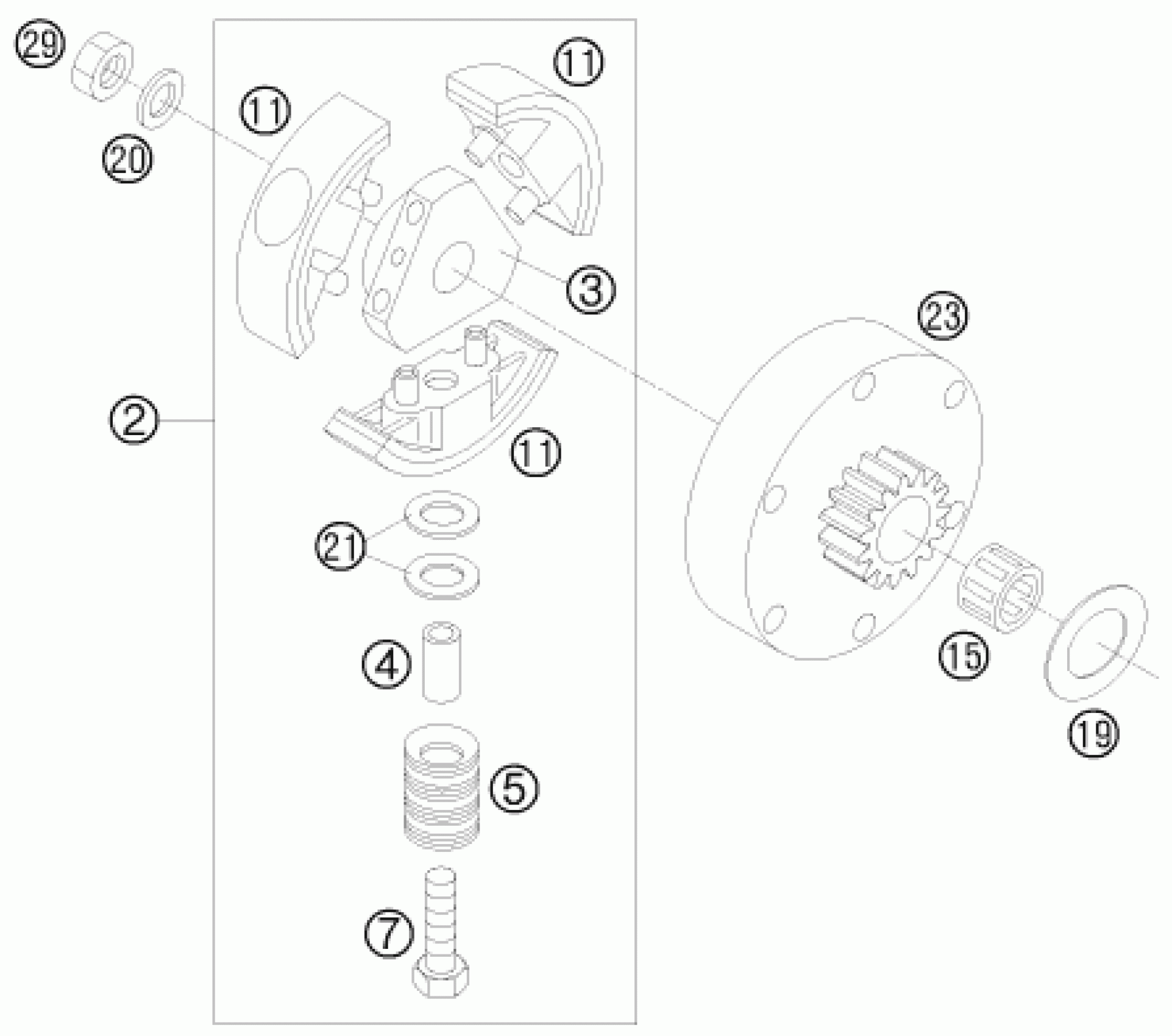

KTM 50 SX 2008 CLUTCH Diagram
#
Description
Price
2
CLUTCH CPL.50GS 2007
45132002244
Unavailable
3
CLUTCH HUB 50 LC 2002
45132002000
Unavailable
4
SPACER 6X8X19
45132004000
Unavailable
5
CLUTCH SPRING 2001
45132005000
Unavailable
7
HH SCREW DIN0933-M 6X25
0933060253
Unavailable
11
CLUTCH BLOCK 06
45132011200
Unavailable
15
NEEDLE BEARING 15X18X17
45132015000
Unavailable
19
SPACER WASHER 15X25X0,3
45132020030
Unavailable
19
SPACER WASHER 15X25X0,4
45132020040
Unavailable
19
STOP DISC 15X25X0,5
47033043000
Unavailable
19
STOP DISC 15X25X1
47033040000
Unavailable
20
WASHER 10,4X16,8X0,4
45132020000
Unavailable
21
WASHER 8X15,3X0,5
45132120000
Unavailable
21
WASHER 8X15,3X1
45132120100
Unavailable
21
WASHER 8X15,3X0,25
45132120200
Unavailable
23
CLUTCH DRUM 16-T
45132023016
Unavailable
29
SPECIAL NUT 10X1,25X8
45130029000
Unavailable
