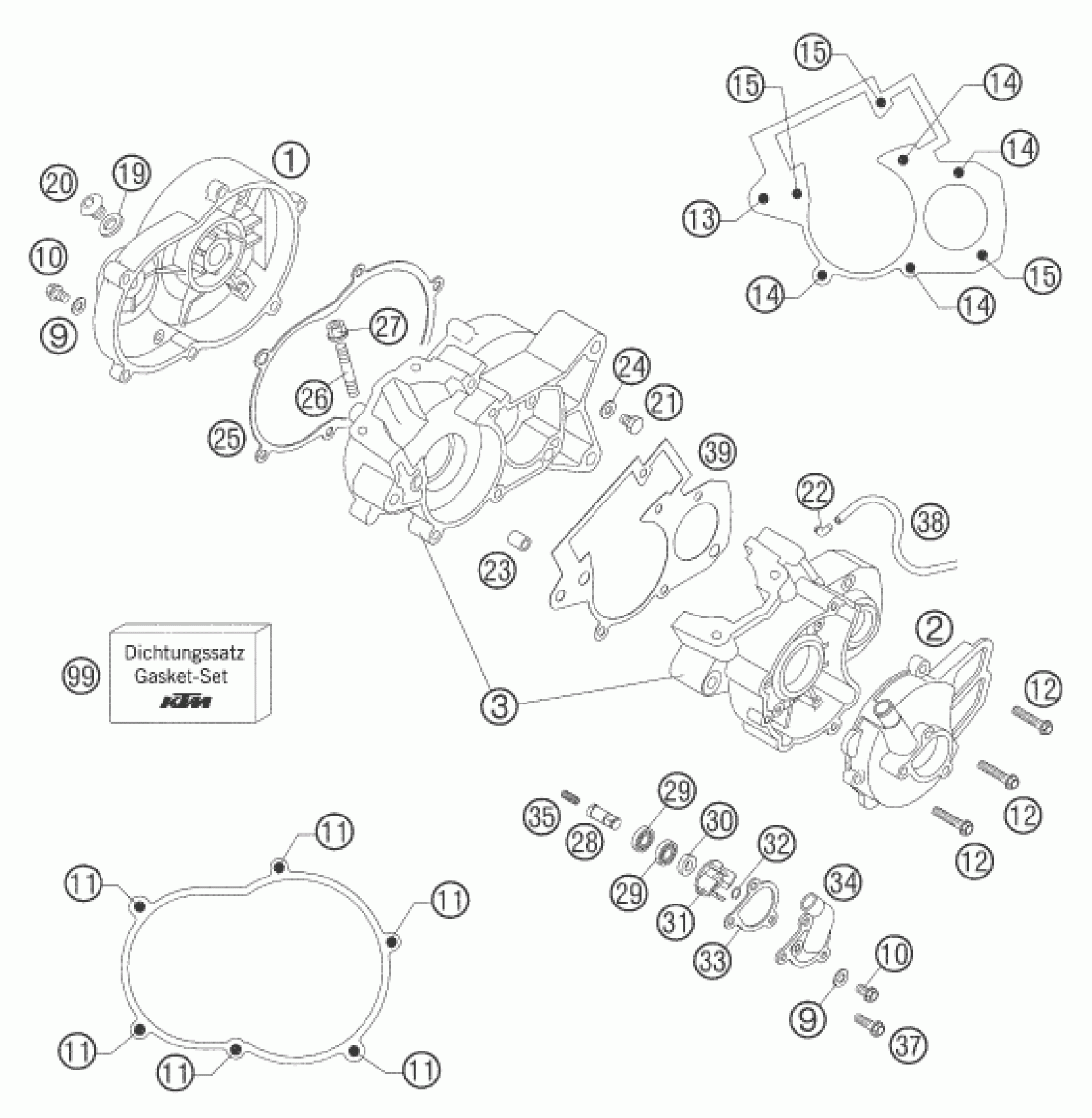

KTM 50 SX 2006 ENGINE CASE Diagram

#

Description
Price

1

CLUTCH COVER 50 2004

45130001100

Unavailable

2

IGNITION COVER 50CCM LC 2001

45130002000

Unavailable

3

ENGINGE CASE 50CCM LC 2001

45130000044

Unavailable

9

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

10

HH COLLAR SCREW M 6X10 WS=8

0015060103

Unavailable

11

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

12

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

13

HH COLLAR SCREW M 8X60 WS=10

0015080603

Unavailable

14

AH SCREW DIN0912-M 6X35

0912060353

Unavailable

15

AH SCREW DIN0912-M 6X40 A2

0912060404

Unavailable

19

GASKET FOR OIL PLUG

45130019000

Unavailable

20

OIL PLUG 50 LC 2001

45130020000

Unavailable

21

OIL DRAIN PLUG M10 WS=13

46030021100

Unavailable

22

ANGLE PIECE 50CCM LC 2001

45130022000

Unavailable

23

DOWEL 7X9X10

45130023000

Unavailable

24

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

25

GASKET FOR CLUTCH COVER 2001

45130025000

Unavailable

26

STUD M8X41

46030043000

Unavailable

27

flanged nut M8 WS10

46030045000

Unavailable

28

WATER PUMP SHAFT 50 LC 2004

45135054000

Unavailable

29

WA.PU.BEAR. 10X19X5 DOUBLELIP

46035058000

Unavailable

30

SHAFT SEAL RING 10X18X4

46035056100

Unavailable

31

WATER PUMP WHEEL 60/65 '99

46035055100

Unavailable

32

CIRCLIP DIN0471- 9X1

0471090010

Unavailable

33

GASKET WATER PUMP COVER 02

45135053000

Unavailable

34

WATER PUMP COVER 50 LC 2002

45135052000

Unavailable

35

SPRING FOR WATER PUMP SHAFT 04

45135058000

Unavailable

37

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

38

PVC-HOSE 3X5MM

52031137001

Unavailable

39

ENGINE CASE GASKET 50 LC 2001

45130039000

Unavailable

99

GASKET SET CPL. 50 LC 2001

45130099000

Unavailable
