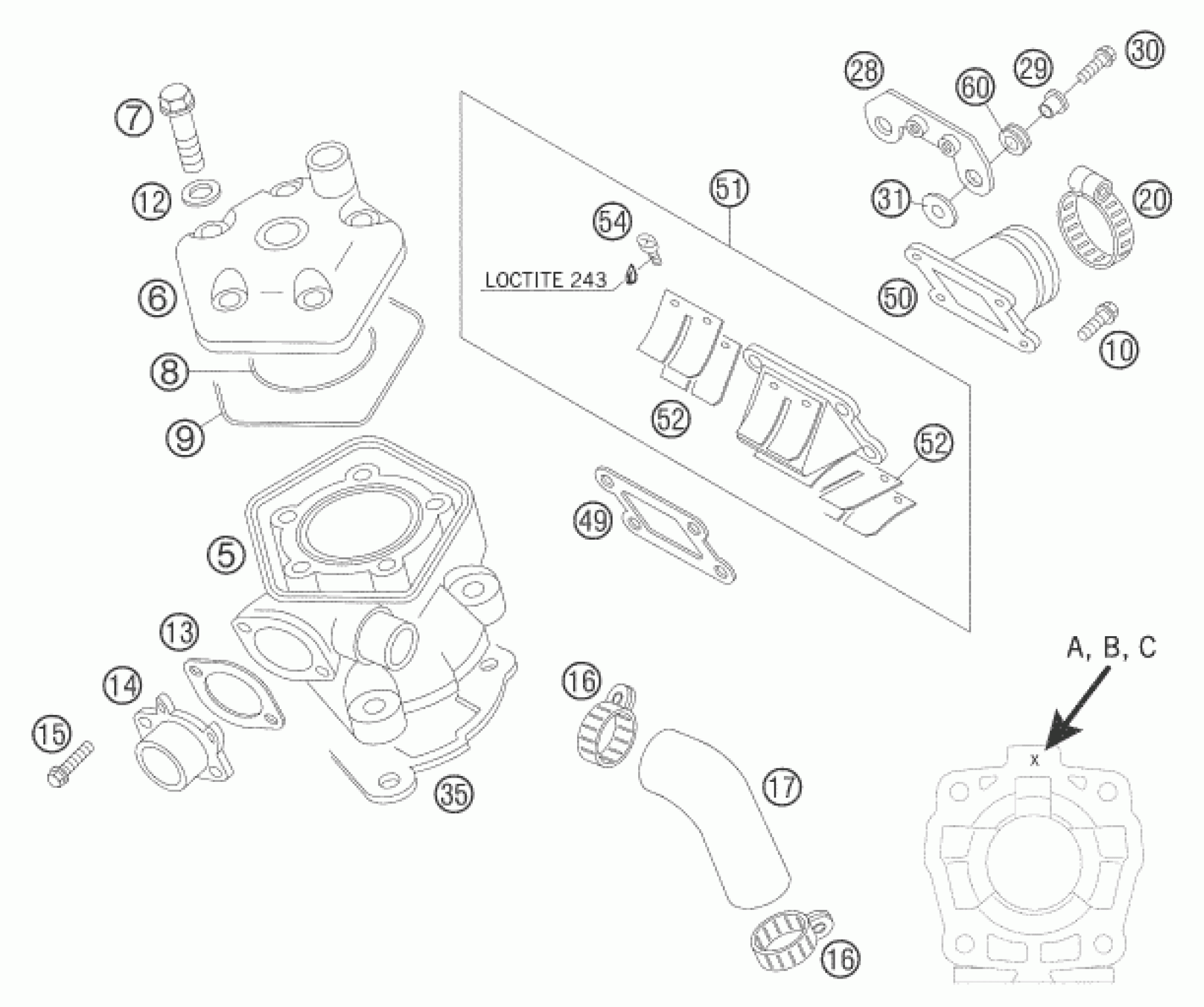

KTM 50 SX 2006 CYLINDER, CYLINDER HEAD Diagram

#

Description
Price

5

CYLINDER 50 LC ''A'' 2002

45130005100 A

Unavailable

5

CYLINDER 50 LC ''B'' 2002

45130005100 B

Unavailable

5

CYLINDER 50 LC ''C'' 2002

45130005100 C

Unavailable

6

CYLINDER HEAD 50 LC 2002

45130006100

Unavailable

7

CYLINDERHEADSCR.HH-M7X33 2001

46030079000

Unavailable

8

O-RING 53,7X1,78 VITON

46030036000

Unavailable

9

O-RING 94,97X1,78

46030037000

Unavailable

10

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

12

CU-SEAL RING 7,3 X 12 X 0,5

50230032010

Unavailable

13

EXHAUST GASKET 60/65 CCM

46030046000

Unavailable

14

EXHAUST FLANGE 50 LC 2002

45105003100

Unavailable

15

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

16

HOSE CLAMP GEMI 18-29

10001020000

Unavailable

17

PRE-FORM HOSE CYL.-W.COVER

45135027000

Unavailable

20

Hose clamp 25-40 SGT 4

10001120000

Unavailable

28

BRACKET IGNITI. COIL 50LC 2001

45139028000

Unavailable

29

COLLAR BUSHING 6,3X8X7,5

45139128000

Unavailable

30

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

31

WASHER DIN0125-A 6,4

0125060003

Unavailable

35

CYLINDER BASE GASKET 0,2 MM

46030035020

Unavailable

35

CYLINDER BASE GASKET 0,5 MM

46030035050

Unavailable

49

INTAKE VALVE GASKET

46030049000

Unavailable

50

INLET MANIFOLD 50CCM LC 2001

45130050000

Unavailable

51

MEMBRANE HOUSING CPL.65SX 2001

46030051144

Unavailable

52

MEMBRANE LOOSE 60/65 CCM

46030052000

Unavailable

54

FLAT HEAD SCREW DIN7985-M 3X6

0985030063

Unavailable

60

rubber grommet D=8mm open

31008060000

Unavailable
