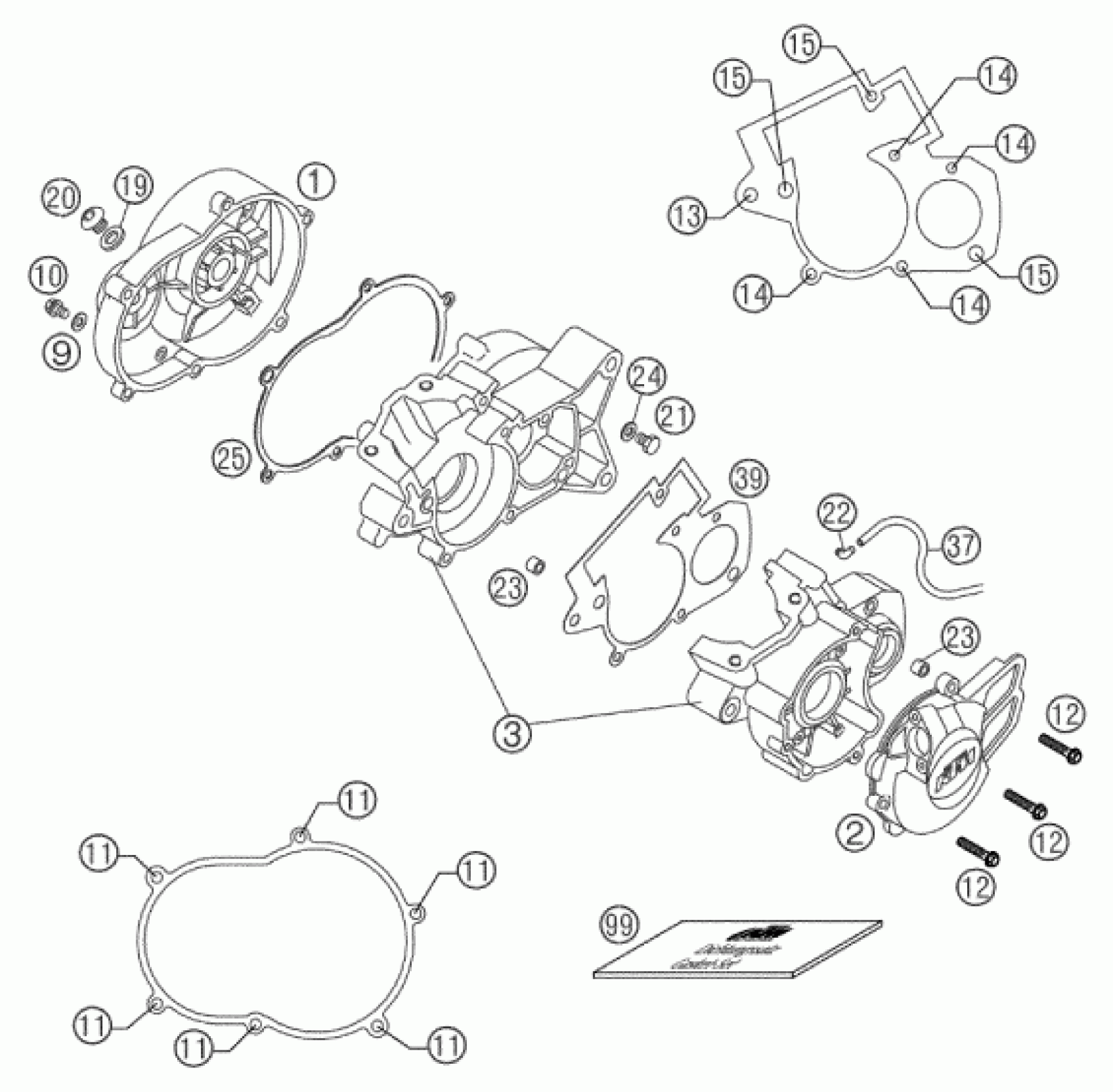

KTM 50 MINI ADVENTURE GS 2002 ENGINE CASE Diagram

#

Description
Price

1

CLUTCH COVER 50CCM LC 2001

45130001000

Unavailable

2

IGNITION COVER 50 GS 2002

45130502100

Unavailable

3

ENGINGE CASE 50CCM LC 2001

45130000044

Unavailable

9

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

10

HH COLLAR SCREW M 6X10 WS=8

0015060103

Unavailable

11

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

12

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

13

HH COLLAR SCREW M 8X60 WS=10

0015080603

Unavailable

14

AH SCREW DIN0912-M 6X35

0912060353

Unavailable

15

AH SCREW DIN0912-M 6X40 A2

0912060404

Unavailable

19

GASKET FOR OIL PLUG

45130019000

Unavailable

20

OIL PLUG 50 LC 2001

45130020000

Unavailable

21

OIL DRAIN PLUG M10 WS=14

46030021000

Unavailable

22

ANGLE PIECE 50CCM LC 2001

45130022000

Unavailable

23

DOWEL 7X9X10

45130023000

Unavailable

24

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

25

GASKET FOR CLUTCH COVER 2001

45130025000

Unavailable

37

PVC-HOSE 3X5MM

52031137001

Unavailable

39

ENGINE CASE GASKET 50 LC 2001

45130039000

Unavailable

99

GASKET SET CPL. 50 AC 2002

45130599000

Unavailable
