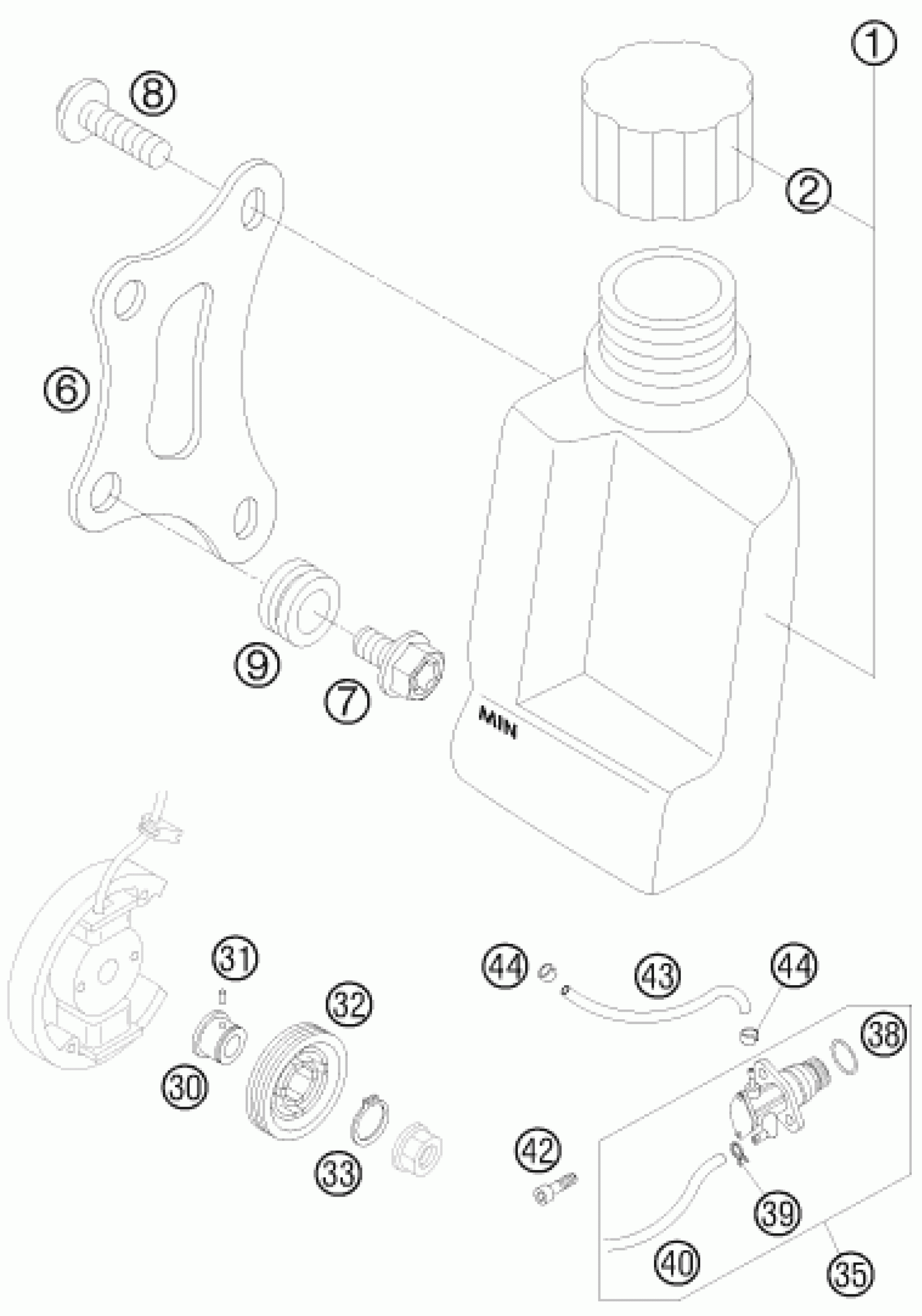

KTM 50 MINI ADVENTURE 2008 LUBRICATING SYSTEM Diagram

#

Description
Price

30

SPACER FOR OIL PUMP GEAR

45138064000

Unavailable

31

RETA.PIN/BEAR.NEEDLE NRO 3X8,0

0402030800

Unavailable

1

OIL TANK 50 ADV. 'GS' 2002

45138061000

Unavailable

2

OIL TANK COVER 50 GS 2002

45138062000

Unavailable

6

BRACKET FOR OIL TANK 2002

45138061050

Unavailable

7

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

8

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

9

rubber grommet D=8mm open

31008060000

Unavailable

32

OIL PUMP GEAR 50 GS 2002

45138065000

Unavailable

33

CIRCLIP DIN472 19x1

0472019100

Unavailable

35

OIL PUMP 50 GS 2007

45138063100

Unavailable

38

O-RING 19,10X1,60 NBR 70

0770191016

Unavailable

39

YDNAC-clamp 10101 (10.4MM)

58007017000

Unavailable

40

HOSE 5X9MM

45138067000

Unavailable

42

AH SCREW DIN912 M5x14

0912050143

Unavailable

43

PREFORM. HOSE CARB.-PUMP 2X5MM

45138068000

Unavailable

44

CLAMP 5 FOR OIL PUMP

45138069000

Unavailable
