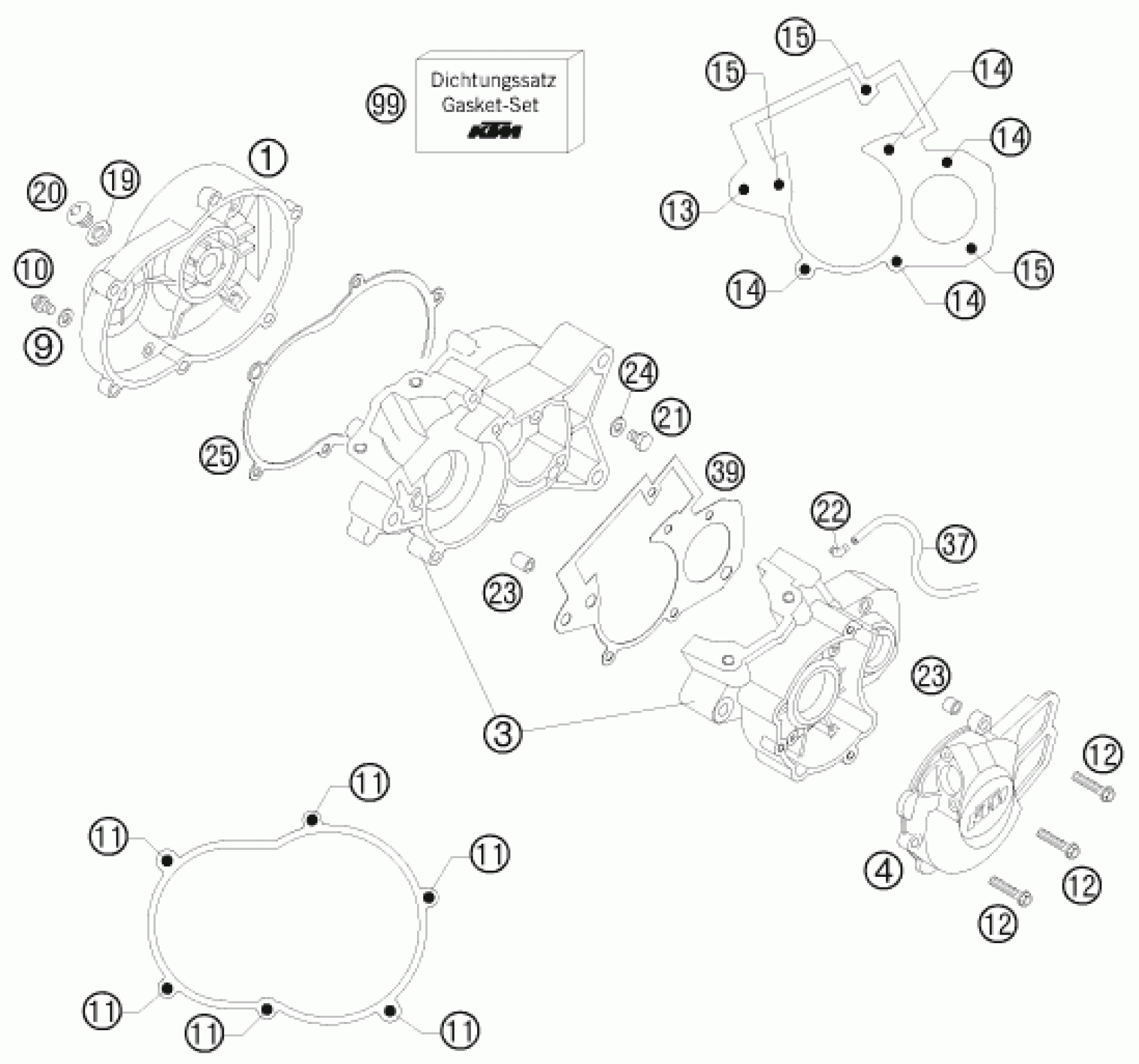

KTM 50 MINI ADVENTURE 2008 ENGINE CASE Diagram

#

Description
Price

20

OIL PLUG 50 LC 2001

45130020000

Unavailable

21

OIL DRAIN PLUG M10 WS=13

46030021100

Unavailable

22

ANGLE PIECE 50CCM LC 2001

45130022000

Unavailable

12

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

99

GASKET SET CPL. 50 AC 2002

45130599000

Unavailable

13

HH COLLAR SCREW M 8X60 WS=10

0015080603

Unavailable

14

AH SCREW DIN0912-M 6X35

0912060353

Unavailable

15

AH SCREW DIN0912-M 6X40 A2

0912060404

Unavailable

19

GASKET FOR OIL PLUG

45130019000

Unavailable

1

CLUTCH COVER 50 2004

45130001100

Unavailable

3

ENGINGE CASE 50CCM LC 2001

45130000044

Unavailable

4

IGNITION COVER 50 GS 2002

45130502100

Unavailable

9

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

10

HH COLLAR SCREW M 6X10 WS=8

0015060103

Unavailable

11

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

23

DOWEL 7X9X10

45130023000

Unavailable

24

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

25

GASKET FOR CLUTCH COVER 2001

45130025000

Unavailable

37

PVC-HOSE 3X5MM

52031137001

Unavailable

39

ENGINE CASE GASKET 50 LC 2001

45130039000

Unavailable
