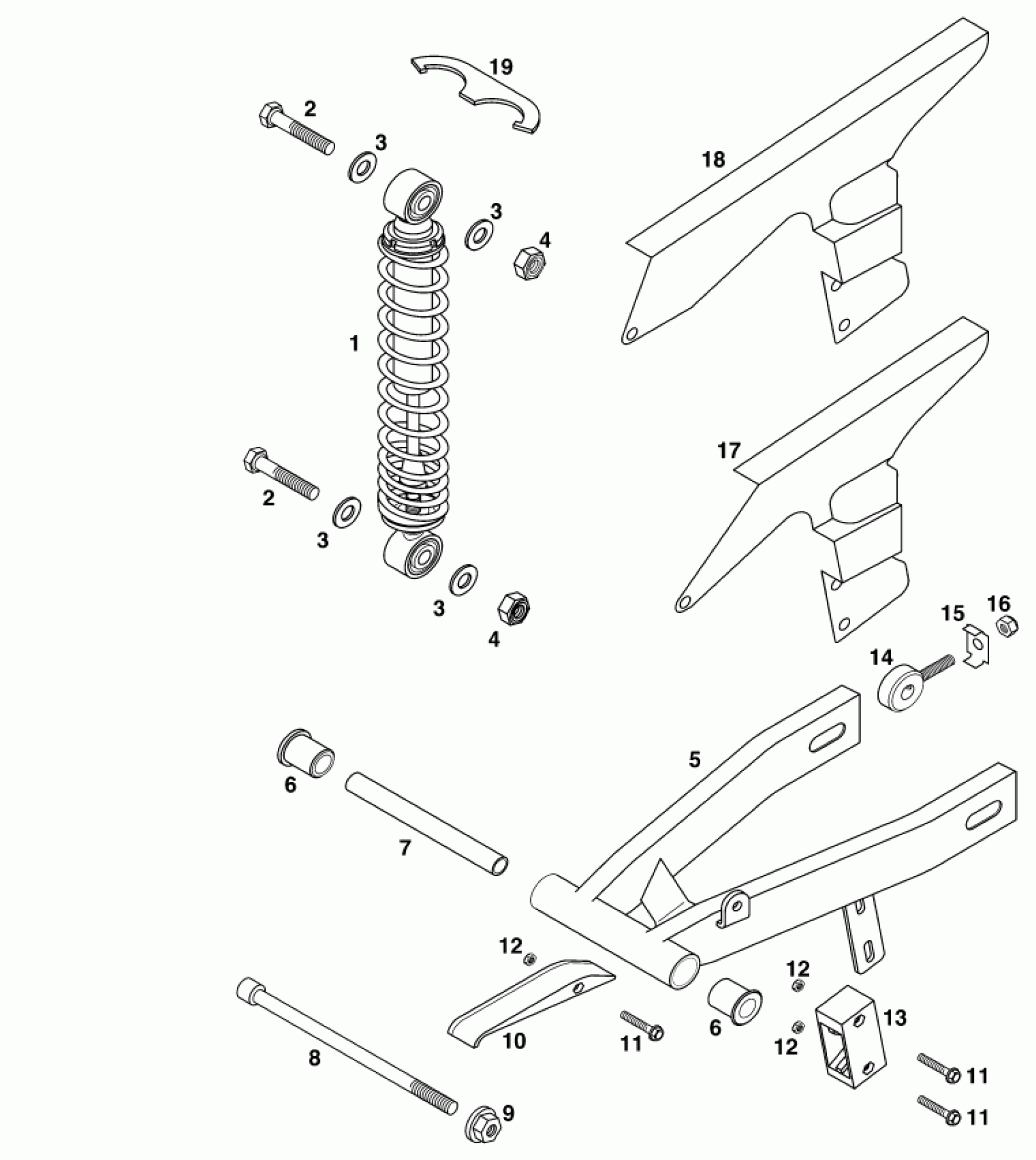

KTM 50 MINI ADVENTURE <1997> SHOCK ABSORBER Diagram

#

Description
Price

1

SHOCK ABSORBER

45004010000

Unavailable

1

% SHOCK ABSORBER

45004010100

Unavailable

2

HH SCREW DIN0931-M10X45

0931100453

Unavailable

3

washer DIN 125 A 10.5

0125100003

Unavailable

4

SELF LOCKING NUT DIN0985-M10

0985100003

Unavailable

5

SWINGARM ADV/PRO JR

45004030000

Unavailable

5

SWINGARM

45004030200

Unavailable

6

BUSHING BOX L=30 MM

45004031000

Unavailable

7

SPACING TUBE 10X13X140 MM

45004039000

Unavailable

8

AH SCREW DIN0912-M10X160

0912101603

Unavailable

9

COLLAR NUT M10 WS=13

54630044000

Unavailable

10

CHAIN GUIDE FRONT

45004066000

Unavailable

11

HH COLLAR SCREW M 5X30 WS=8

0015050303

Unavailable

12

Self locking nut DIN 985 M5

0985050003

Unavailable

13

CHAIN GUIDE REAR

45004070000

Unavailable

14

CHAIN ADJUSTER

45010083000

Unavailable

15

SUPPORTING BRACKET

45010083060

Unavailable

16

SELF LOCKING NUT DIN0985-M 8

0985080003

Unavailable

17

CHAINGUARD 50 SXR ADV./JUN.

45007060000

Unavailable

18

CHAINGUARD 50 SXR PRO SEN.

45007060100

Unavailable

19

HOOK WRENCH 50 SXR

45004010090

Unavailable
