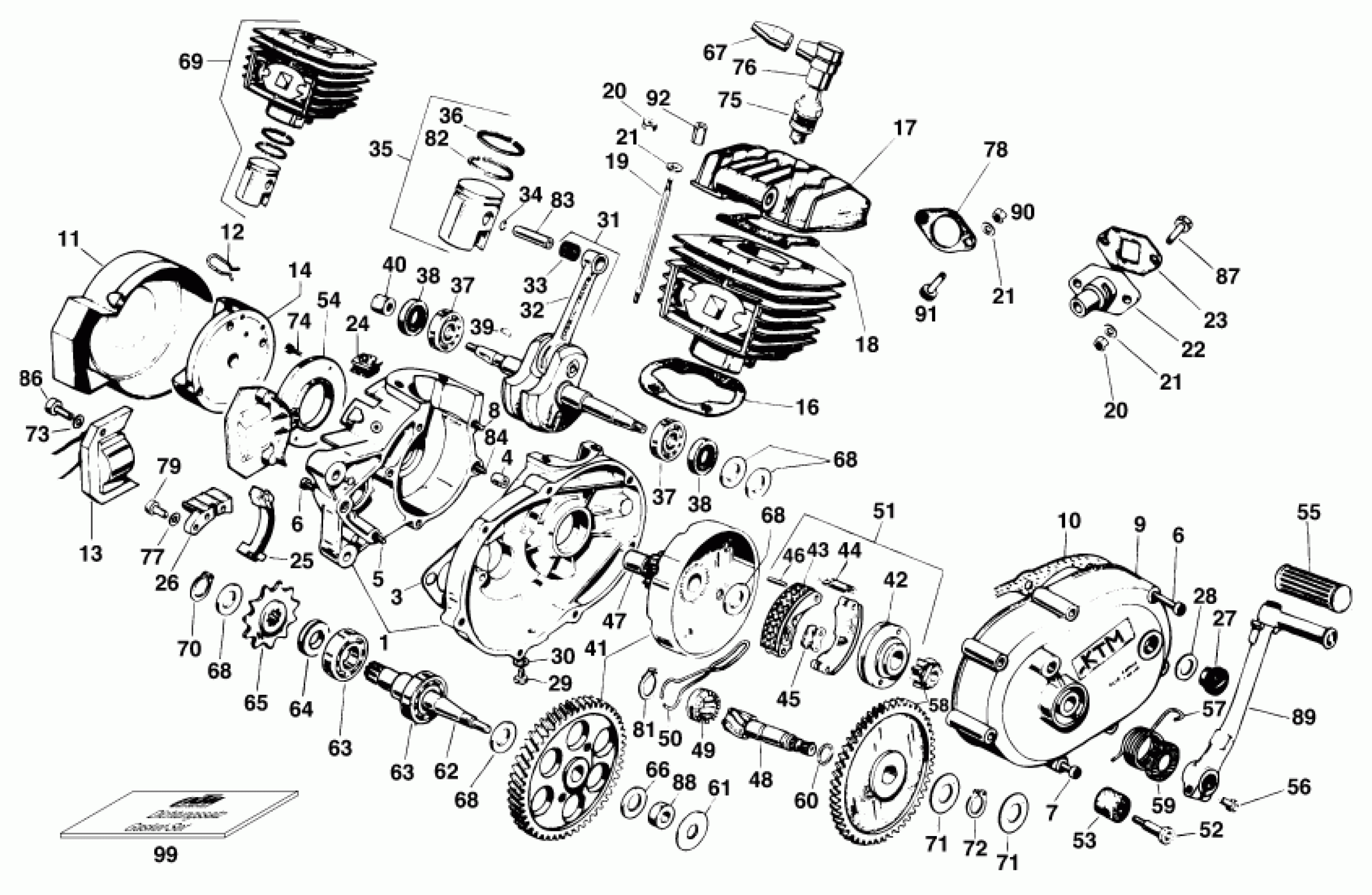

KTM 50 MINI ADVENTURE <1997> ENGINE CASE Diagram

#

Description
Price

1

ENGINE CASE CPL. '97

45030000044

Unavailable

3

ENGINE CASE GASKET

45030039000

Unavailable

4

TENSION PIN 14X10X8

45030023000

Unavailable

5

AH SCREW DIN0912-M 6X40

0912060403

Unavailable

6

AH SCREW DIN0912-M 6X45

0912060453

Unavailable

7

AH SCREW DIN0912-M 6X50

0912060503

Unavailable

8

AH SCREW DIN0912-M 6X55

0912060553

Unavailable

9

* CLUTCH COVER

45030001000

Unavailable

10

GASKET CLUTCH COVER

45030025000

Unavailable

11

* IGNITION COVER

45030002000

Unavailable

12

* RETAINING SPRING

45030092000

Unavailable

13

* IGNITION COIL CPL.

45039006000

Unavailable

14

FLYWHEEL

45039005000

Unavailable

16

* CYL. BASE GASKET

36330030000

Unavailable

17

CYLINDER HEAD

45030006000

Unavailable

18

* CYL. HEAD GASKET

36330036000

Unavailable

19

STUD BOLT M6X112-25/15

36330042000

Unavailable

20

Hex. nut DIN 934 M6

0934060003

Unavailable

21

WASHER DIN0125-A 6,4

0125060003

Unavailable

22

INTAKE FLANGE FOR DELLORTO

36330050000

Unavailable

23

GASKET FOR INTAKE PIPE

49130438000

Unavailable

24

RUBBER GASKET

45030091000

Unavailable

25

* RUBBER FOR FLYWHEEL

45030095000

Unavailable

26

* SECURING GUIDE

45030047000

Unavailable

27

OIL LEVEL CONTR. PLUG PVCM14

15130020000

Unavailable

28

SEAL RING 14,2X20X1

15130021000

Unavailable

29

HH SCREW DIN0933-M 8X10

0933080103

Unavailable

30

SEAL RING 8X14X1 AI

45038017000

Unavailable

31

% CRANKSHAFT STROKE 41,7MM

45030018000

Unavailable

32

% CON.ROD REPAIR KIT

45030015000

Unavailable

33

* NEEDLE BEARING 12X15X15

15130034000

Unavailable

34

* CIRCLIP

45030074000

Unavailable

35

PISTON CPL. 39MM

45030007000

Unavailable

36

PISTON RING D=39MM

36330031000

Unavailable

37

BALL BEARING 6203 TN9.C3

0625062031

Unavailable

38

* RADIAL SEAL RING 17X35X8

15130086000

Unavailable

39

WOODRUFF KEY DIN6888-2,5X3

0888025030

Unavailable

40

* HH-NUT M8X14, WS=15

16030028000

Unavailable

41

% CLUTCH HUB 52-Z W.PRIM. 15-Z

45032001000

Unavailable

42

INNER CLUTCH HUB

45032002000

Unavailable

43

BUSHING SLEEVE

16032011000

Unavailable

44

* CLUTCH SPRING

45032005000

Unavailable

45

JOINT FOR BLOCKS

45032008000

Unavailable

46

ROLLER 3X13,8

45032045000

Unavailable

47

* BUSHING 15X18X18

16032095000

Unavailable

48

STARTING SHAFT

45033050000

Unavailable

49

* KICKST. RATCHET

45033052000

Unavailable

50

SPRING

45033056000

Unavailable

51

CLUTCH HUB CPL. MORINI '97

45032002044

Unavailable

52

STOP SCREW M8

16233039000

Unavailable

53

RUBBER 10X26X18

16233040000

Unavailable

54

* GROUND PLATE IGNITION COIL

45039003000

Unavailable

55

* KICKSTARTER RUBBER

45033076000

Unavailable

56

HH SCREW DIN0933-M 7X25

0933070253

Unavailable

57

* KICKSTARTER SPRING

45033054000

Unavailable

58

KICKSTARTER SPROCKETS

45033051000

Unavailable

59

PLASTIC CAP KICKSTARTER

45033077000

Unavailable

60

O-RING 12X 2 NBR 70

0770012020

Unavailable

61

* WASHER 8,4X25X0,4

45033078000

Unavailable

62

COUNTER SHAFT

45033002000

Unavailable

63

BALL BEARING 6202 2RS1 C3

0625062027

Unavailable

64

* RADIAL SEAL RING 15X24X5

15133028000

Unavailable

65

CHAIN SPROCKET 11-Z

45033029000

Unavailable

66

WASHER 12,2X20X1,8

15133031000

Unavailable

67

RUBBER CAP

45039008000

Unavailable

68

* WASHER 15X22X0,4

45033022000

Unavailable

69

CYLINDER + PISTON

45030009000

Unavailable

70

CIRCLIP 14X1,2

36333096000

Unavailable

71

WASHER 16X25X0,5

45033023000

Unavailable

72

CIRCLIP DIN0471-16X1

0471160150

Unavailable

73

WASHER DIN0125-A 5,3

0125050003

Unavailable

74

SCREW M4X10

45030090000

Unavailable

75

SPARK PLUG BOSCH W 4 AC

45039093004

Unavailable

76

* SPARK PLUG CONNECTOR

45039090000

Unavailable

77

TOOTH LOCK WASH. DIN6797-J 5,3

0797050003

Unavailable

78

EXHAUST GASKET ENGINE S5-E

45030046000

Unavailable

79

AH SCREW DIN0912-M 5X12

0912050123

Unavailable

81

CIRCLIP 17,5X1,2

45033024000

Unavailable

82

* COMP. RING D=39MM

36330032000

Unavailable

83

* PISTON PIN 8X12X31,4

15130033000

Unavailable

84

AH SCREW DIN0921-M 6X60

0912060603

Unavailable

86

AH SCREW DIN0912-M 5X20

0912050203

Unavailable

87

HH SCREW DIN0933-M 6X25

0933060253

Unavailable

88

HH-NUT M12X1,25 6MM HIGH

15133032000

Unavailable

89

* STARTING LEVER

45033070000

Unavailable

90

SELF LOCKING NUT M 6 COPPER

51010086000

Unavailable

91

HH SCREW DIN0933-M 6X20

0933060203

Unavailable

92

HH-NUT M6 36MM HIGH WS=12

45030079000

Unavailable

99

GASKET SET GASKETS

45030099000

Unavailable

99

GASKET SET SEAL RINGS

45030099100

Unavailable
