- 50 MINI ADVENTURE <1997>
CARBURETOR

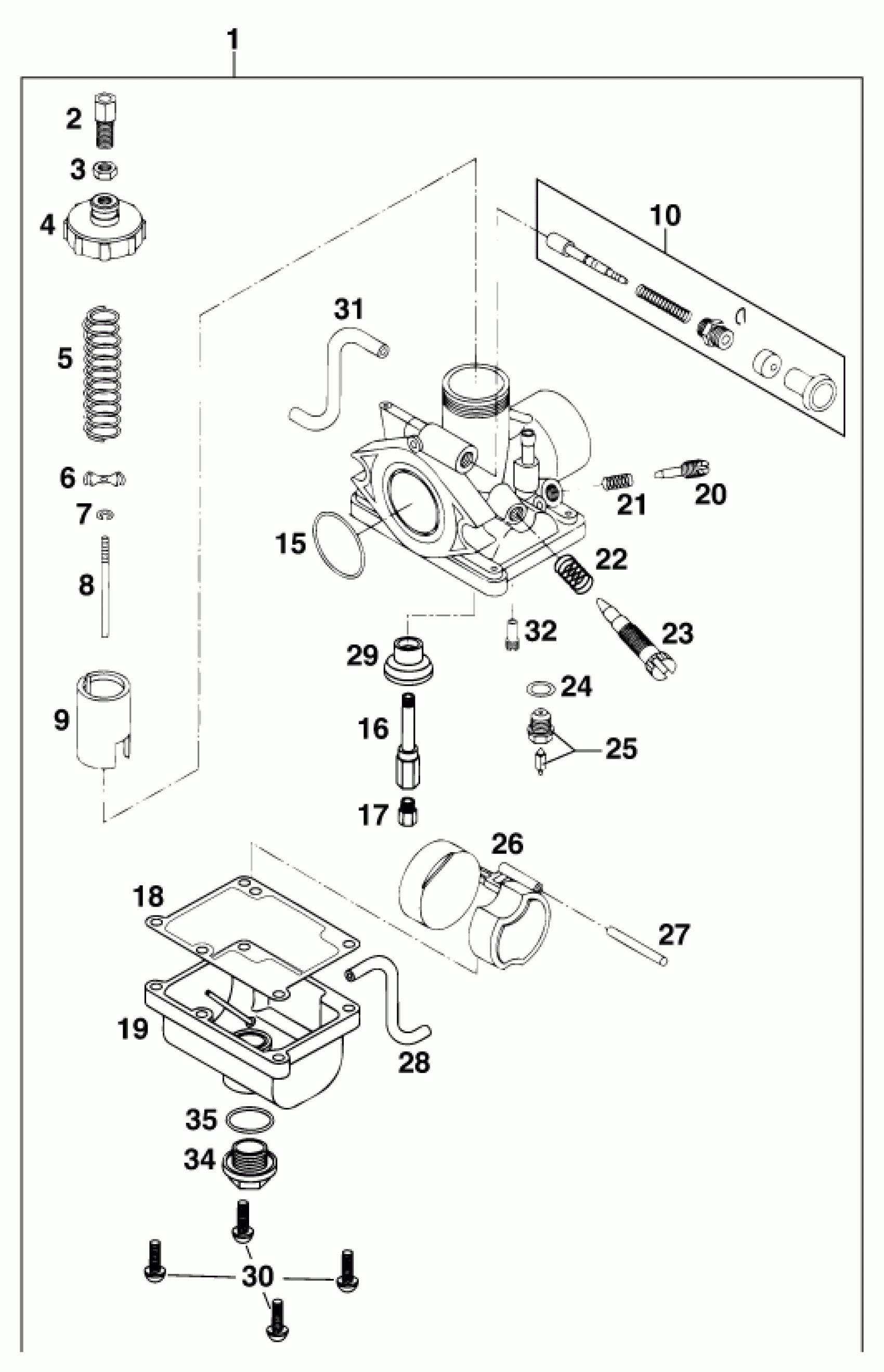

KTM 50 MINI ADVENTURE <1997> CARBURETOR Diagram
#
1
CARBURETOR MIKUNI VM20-364'99
45031001344
Unavailable
2
ADJUSTING SCREW M6X0,75
45031025000
Unavailable
3
HH-NUT M6X0,75
45031026000
Unavailable
4
CARBURETOR COVER VM20-352
45031027100
Unavailable
5
THROTTLE VALVE SPRING VM20-352
45031030100
Unavailable
6
RETAINING SPRING VM20-352 MIK.
45031009100
Unavailable
7
SPRING
45031045000
Unavailable
8
JET NEEDLE 4J13 MIKUNI
45031034100
Unavailable
9
*THROTTLE VALVE 23MM MIK. NO.2
45031035100
Unavailable
10
STARTER KNOB CPL. VM20
45031048144
Unavailable
15
O-RING 24X2 MIKUNI
45031039100
Unavailable
16
NEEDLE JET N-6
45031021200
Unavailable
17
MAIN JET 100 MIKUNI
45031023100
Unavailable
17
MAIN JET 105 MIKUNI
45031023105
Unavailable
17
MAIN JET 110 MIKUNI
45031023110
Unavailable
17
MAIN JET 115 MIKUNI
45031023115
Unavailable
17
MAIN JET 120 MIKUNI
45031023120
Unavailable
18
GASKET FLOAT BOWL
45031010100
Unavailable
19
FLOAT CHAMBER VM20-364 '99
45031011200
Unavailable
20
AIR REG. SCREW
45031017000
Unavailable
21
SPRING
45031015000
Unavailable
22
SPRING MIKUNI
45031015100
Unavailable
23
IDLE ADJ. SCREW VM20
45031019100
Unavailable
24
SEAL RING
45031018000
Unavailable
25
NEEDLE VALVE
45031020000
Unavailable
26
FLOAT VM20-352 MIKUNI
45031006100
Unavailable
27
PIN 2,5X27
45031008000
Unavailable
28
PVC-HOSE 3X5MM
52031137001
Unavailable
29
BUFFLE
46031074000
Unavailable
30
LINTIL HEAD SCREW M4X16 (SET)
45031014016
Unavailable
31
PVC-HOSE 3X5MM
52031137001
Unavailable
32
IDLING JET VM20-352 MIKUNI
45031007100
Unavailable
34
PLUG SCREW M16 WS=17
46031014000
Unavailable
35
O-RING 17,5X1,4
46031043000
Unavailable
