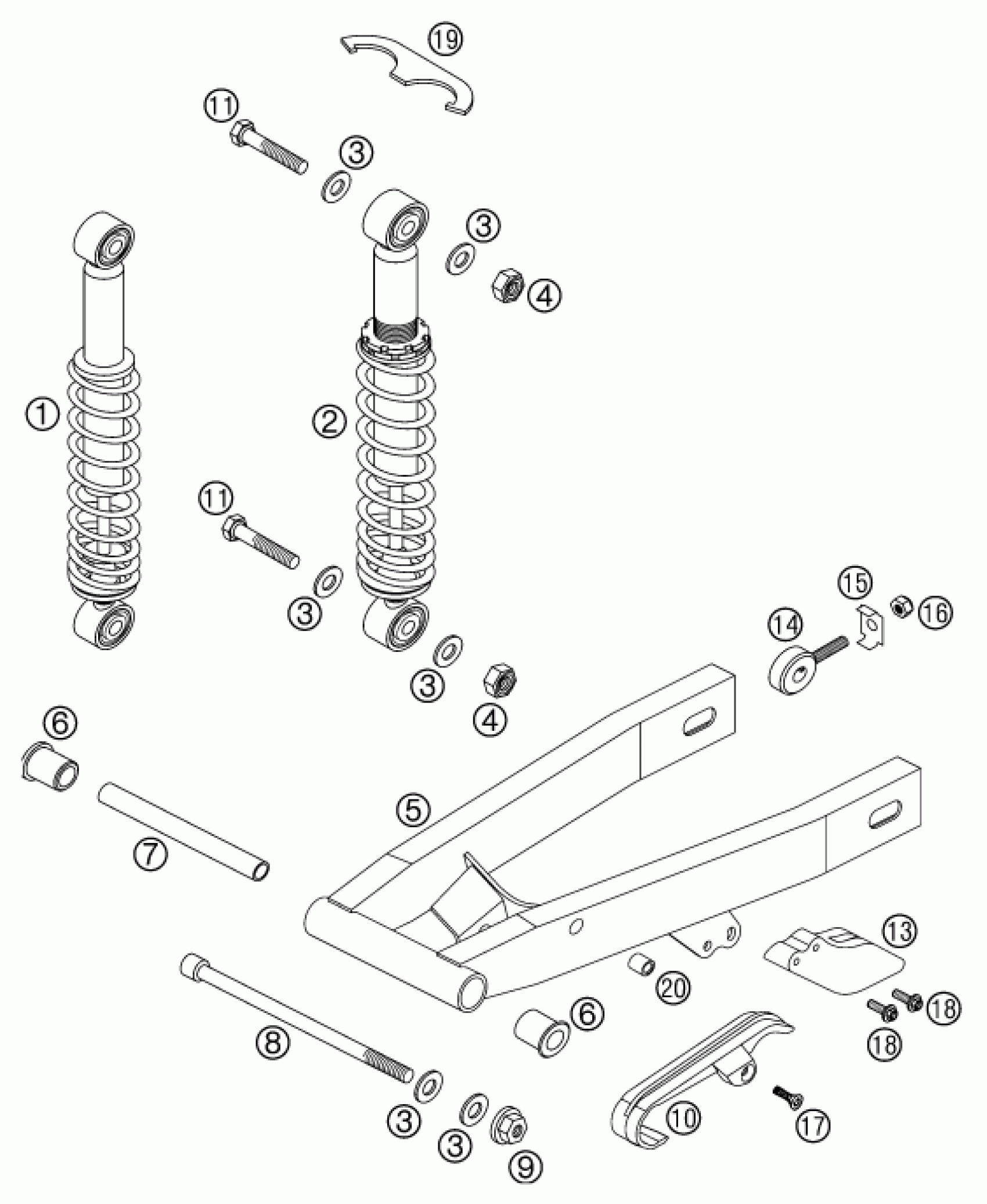

KTM 50 JUNIOR ADVENTURE 2002 SHOCK ABSORBER Diagram

#

Description
Price

1

SHOCK ABSOR. ADV. MC24 L=248

45004010500

Unavailable

2

SHOCK ABSORB. SX JUN. L=255

45104010300

Unavailable

3

washer DIN 125 A 10.5

0125100003

Unavailable

4

SELF LOCKING NUT DIN0985-M10

0985100003

Unavailable

5

SWINGARM CPL. JUN. ADV.+LC 02

45104030044

Unavailable

6

BUSHING BOX L=30 MM

45004031000

Unavailable

7

SPACING TUBE 10X13X140 MM

45004039000

Unavailable

8

AH SCREW DIN0912-M10X160

0912101603

Unavailable

9

flanged hex nut DIN 6927 M10 W

49009082000

Unavailable

10

CHAIN SLID. GUARD FRO. MINI 02

45104066000

Unavailable

11

HH SCREW DIN0931-M10X45

0931100453

Unavailable

13

CHAIN GUARD MINI 20

45104070000

Unavailable

14

CHAIN ADJUSTER

45010083000

Unavailable

15

SUPPORTING BRACKET

45010083060

Unavailable

16

SELF LOCKING NUT DIN0985-M 8

0985080003

Unavailable

17

FLAT H.SCREW DIN7991-M6X20

0991060203

Unavailable

18

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

19

HOOK WRENCH 50 SXR

45004010090

Unavailable

20

BLIND RIVET THREAD M6 STE. 4MM

55003139900

Unavailable
