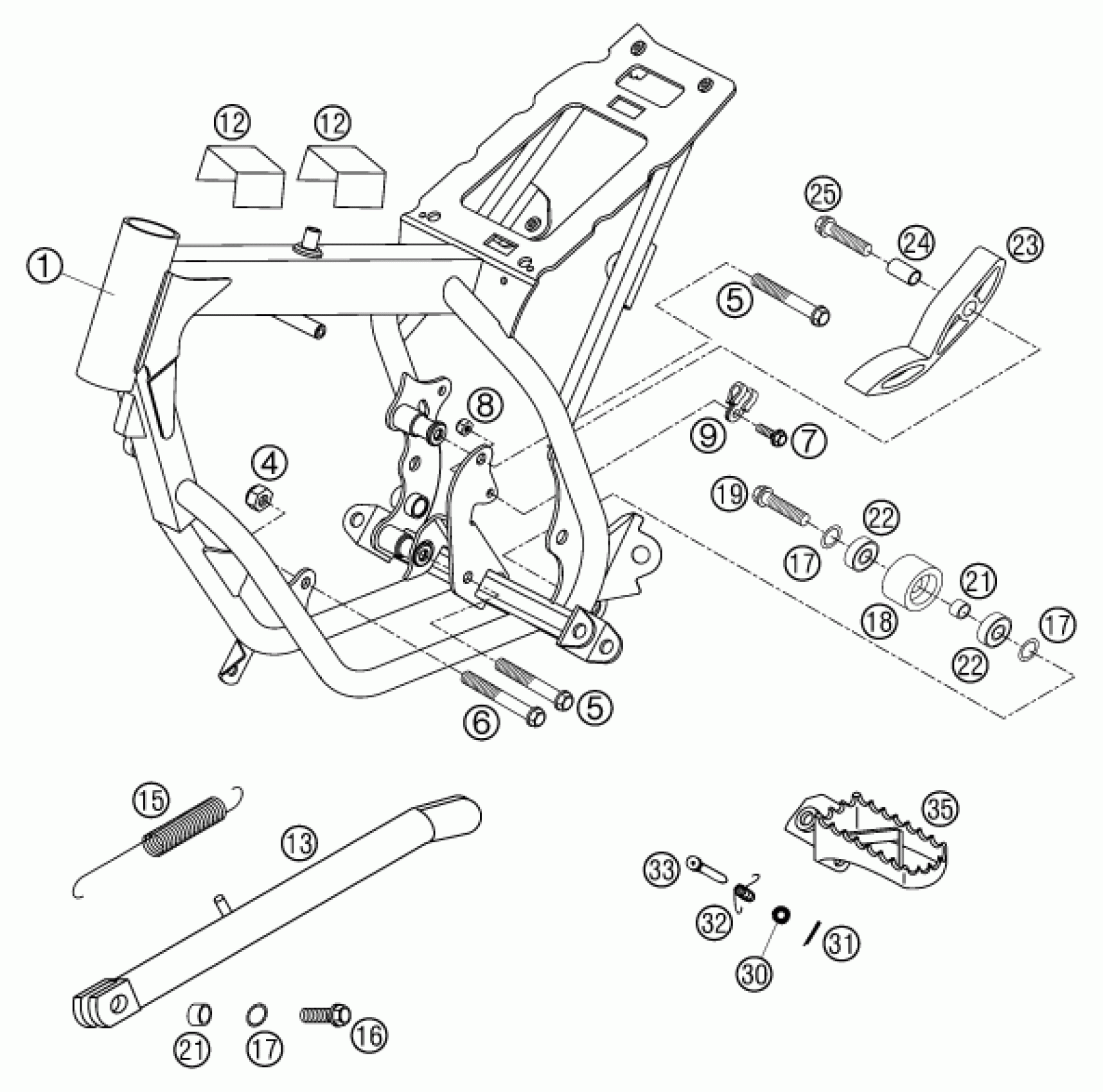

KTM 50 JUNIOR ADVENTURE 2002 FRAME Diagram

#

Description
Price

1

FRAME MINI ADV./JUN.''MA2R''

45103001200

Unavailable

4

Self locking nut M8 10.9

54310086200

Unavailable

5

HH COLLAR SCREW M 8X60 WS=10

0015080603

Unavailable

6

HH COLLAR SCREW M 8X65 WS=10

0015080653

Unavailable

7

HH COLLAR SCREW M 5X16 WS=8

0015050163

Unavailable

8

Self locking nut DIN 985 M5

0985050003

Unavailable

9

BRAKE CABLE CLAMP RSGU 9/12

45001070000

Unavailable

12

METAMOLL FOR BATTERY BRACKET

58711054050

Unavailable

13

SIDE STAND L=270MM SILVER 02

4510302310090

Unavailable

13

SIDE STAND L=285MM SILVER 02

4510302320090

Unavailable

15

SIDESTAND SPRING LONG

51003021000

Unavailable

16

HH COLLAR SCREW M 8X20 WS=10

0015080203

Unavailable

17

LOCK WASHER 8MM

36003014000

Unavailable

18

CHAIN ROLL D=30MM

50203053000

Unavailable

19

HH COLLAR SCREW M 8X30 WS=10

0015080303

Unavailable

21

BUSHING 8.2 X 12 X 6

74003021000

Unavailable

22

Grooved ball bearing 608 2RS C

0625006087

Unavailable

23

CHAIN SLIDING PIECE BELOW '97

51103053000

Unavailable

24

BUSHING 8,2X10X20

51103053051

Unavailable

25

HH COLLAR SCREW M 8X25 WS=10

0015080253

Unavailable

30

washer DIN 125 A -8.4

0125080003

Unavailable

31

PIN DIN0094-3,2X25 STEEL

0094032253

Unavailable

32

FOOTREST SPRING L/S & R/S

54603041000

Unavailable

33

BOLT FOR FOOTREST 9,8 X 50

54603044000

Unavailable

35

FOOT REST L/S SILVER

5460304000090

Unavailable

0

FOOT REST R/S SILVER '98

5460314000090

Unavailable
