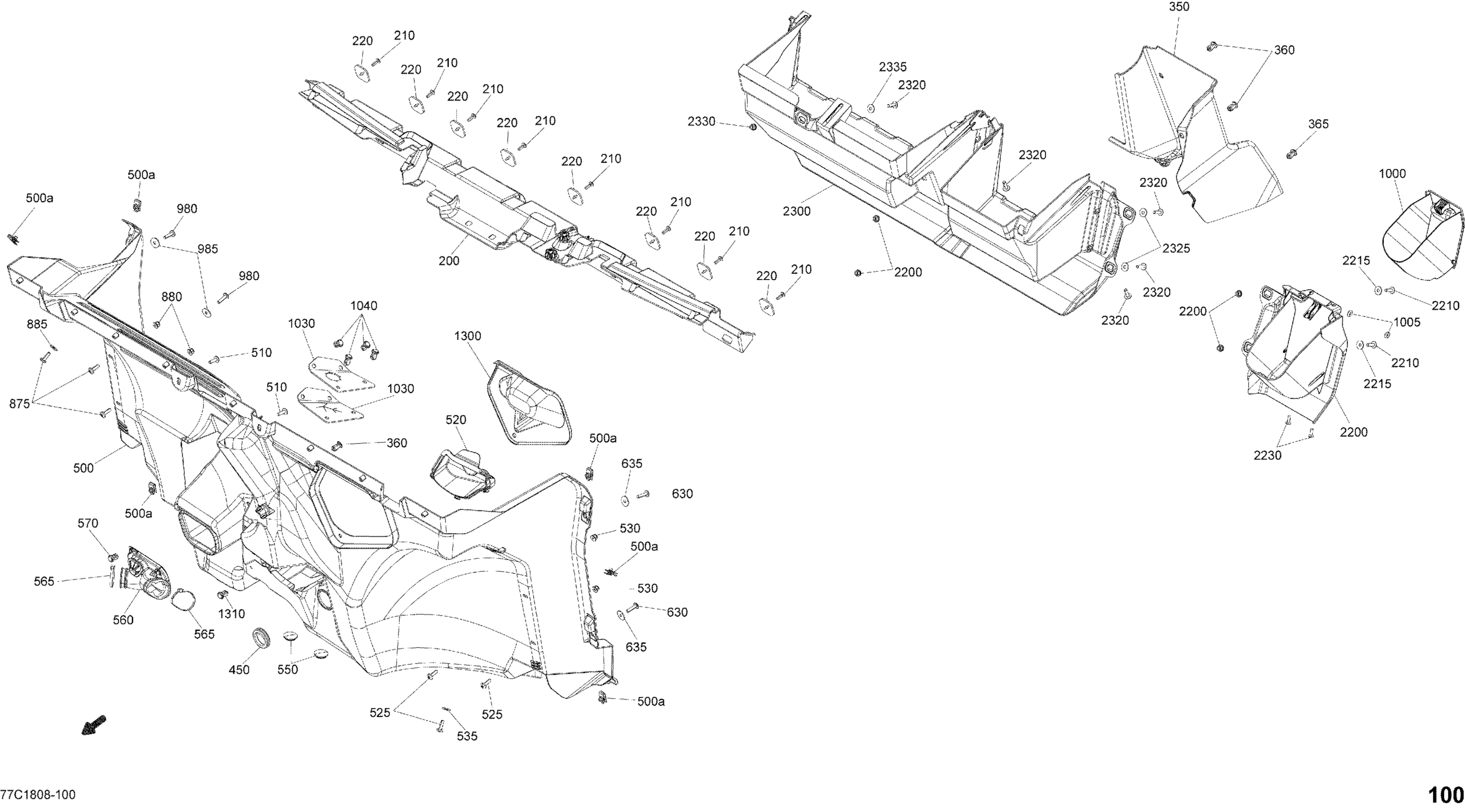

Can-Am Traxter MAX HD10, 2018 Cab Interior Front Part Defender MAX Diagram

Upper Front Deflector

707900296

$50.74

Torx Screw K50 X 16

250000720

$1.39

Support Plate

705003841

$0.91

Front Bulkhead Cover

707900289

$46.12

Tuflok Plastic Rivet

293150230

$1.21

Tuflok Plastic Rivet

293150230

$1.21

Rubber Cover

293250242

$5.38

Front Bulkhead

707900430

$272.28

Panel Nut M6 X 1.0

250100198

$1.73

Torx Screw M6 X 20

250000722

$1.34

DPS Cover

707900408

$16.89

Torx Screw M6 X 20

250000712

$1.74

Hex. Flange Elastic Nut M6

233261494

$1.26

Stainless Steel Flat Washer

234062670

$1.74

Bumber Cap | Except Cab Package

291002744

$10.21

RH Rubber Cover

707900390

$16.89

Tie Wrap 368 mm

293750008

$0.85

Tuflok Plastic Rivet

293150230

$1.21

Torx Truss Screw M6 X 25

250000807

$1.74

Flat Washer M6.6 X 22

250200162

$1.91

Torx Screw M6 X 20

250000712

$1.74

Hex. Flange Elastic Nut M6

233261494

$1.26

Stainless Steel Flat Washer

234062670

$1.74

Torx Truss Screw M6 X 25

250000807

$1.74

Flat Washer M6.6 X 22

250200162

$1.91

Drawer

707900252

$18.43

O-Ring

293300194

$1.15

Steering Column Deflector

707900318

$17.66

Steering Column Deflector | Except Package STD, Except Base

707900645

$16.89

Tuflok Plastic Rivet

293150230

$1.21

Exterior Cover

707900389

$11.54

Tuflok Plastic Rivet

293150230

$1.21

LH Lower Dash | Except Base Package

707900251

Unavailable

Torx Screw M6 X 20

250000722

$1.34

Stainless Steel Flat Washer

234062670

$1.74

Insert Half Hex Body M6 x 1.0

250100199

$2.54

Torx Screw K50 X 16

250000720

$1.39

RH Lower Dash | Except Base, Cab Package

707900250

$109.97

Torx Screw M6 X 20

250000722

$1.34

Stainless Steel Flat Washer

234062670

$1.74

Insert Half Hex Body M6 x 1.0

250100199

$2.54

Stainless Steel Flat Washer

234062670

$1.74
