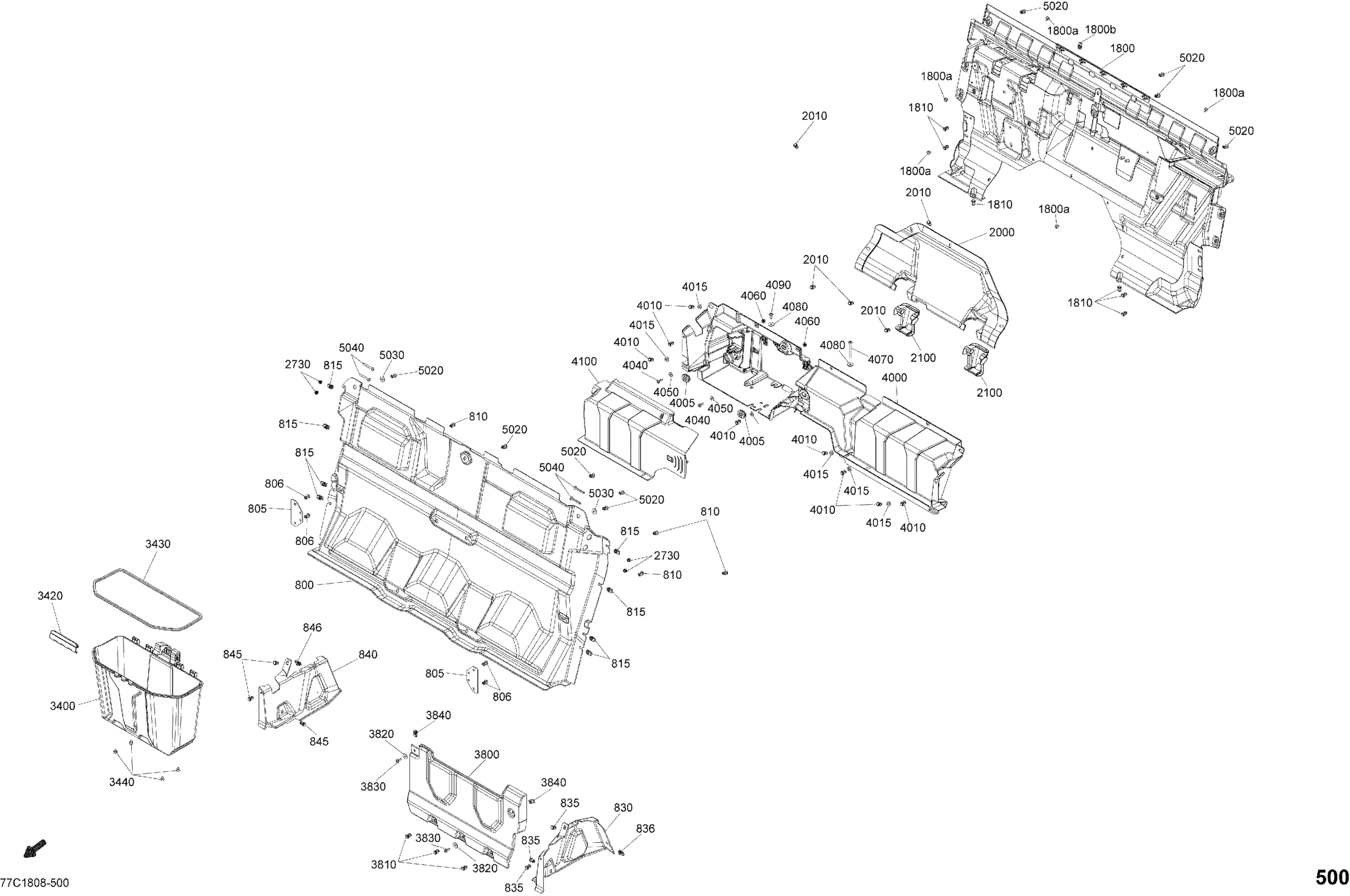

Can-Am Traxter MAX HD10, 2018 Cab Interior Divisions Defender MAX Diagram

#

Description
Price

800

Median Deflector Kit

715007481

$290.74

805

Plate

707900469

$28.43

806

Tuflok Plastic Rivet

293150230

$1.21

810

Tuflok Plastic Rivet

293150230

$1.21

815

Panel Nut M6 X 1.0

250100198

$1.73

830

LH Lower Panel

707900994

$78.43

835

Tuflok Plastic Rivet

293150230

$1.21

836

Panel Nut M6 X 1.0

250100198

$1.73

840

RH Lower Cover

707900444

$78.43

845

Tuflok Plastic Rivet

293150230

$1.21

846

Panel Nut M6 X 1.0

250100198

$1.73

1800>1800b

Rear Upper Deflector Ass'y

707900635

$216.89

1800a

Rubber Bumper

293830005

$5.33

1800b

Panel Nut M6 X 1.0

250100198

$1.73

1810

Tuflok Plastic Rivet

293150230

$1.21

2000

Engine Service Cover

707900326

$36.89

2010

Tuflok Plastic Rivet

293150230

$1.21

2100

Support belt cover

707900419

$10.00

2730

Insert Half Hex Body M6 x 1.0

250100199

$2.54

3400

Storage Box

715003314

$109.24

3420

Clip | Outlander Max

269501945

$15.19

3430

Neoprene Seal

293250453

$14.92

3440

Rubber Bumper

293830005

$5.33

3800

Rear Panel

707900996

$92.28

3810

Tuflok Plastic Rivet

293150230

$1.21

3820

Flat Washer M6.6 X 22

250200162

$1.91

3830

Torx Screw M6 X 20

250000722

$1.34

3840

Panel Nut M6 X 1.0

250100198

$1.73

4000

Rear Lower Bulkhead

707900228

$92.28

4005

Oval Washer

705005156

$4.85

4010

Tuflok Plastic Rivet

293150230

$1.21

4015

Washer

503192494

$3.11

4040

Torx Screw M6 X 20

250000722

$1.34

4050

Stainless Steel Flat Washer

234062670

$1.74

4060

Insert Half Hex Body M6 x 1.0

250100199

$2.54

4070

Torx Screw M6 X 70

250000954

$1.56

4080

Flat Washer M6.6 X 22

250200162

$1.91

4090

Torx Screw M6 X 20

250000722

$1.34

4100

Battery Cover

707900282

$32.28

5020

Tuflok Plastic Rivet

293150230

$1.21

5030

Flat Washer 8 mm, Nylon

292001663

$1.18

5040

Torx Truss M6 X 50

250000868

$1.74
