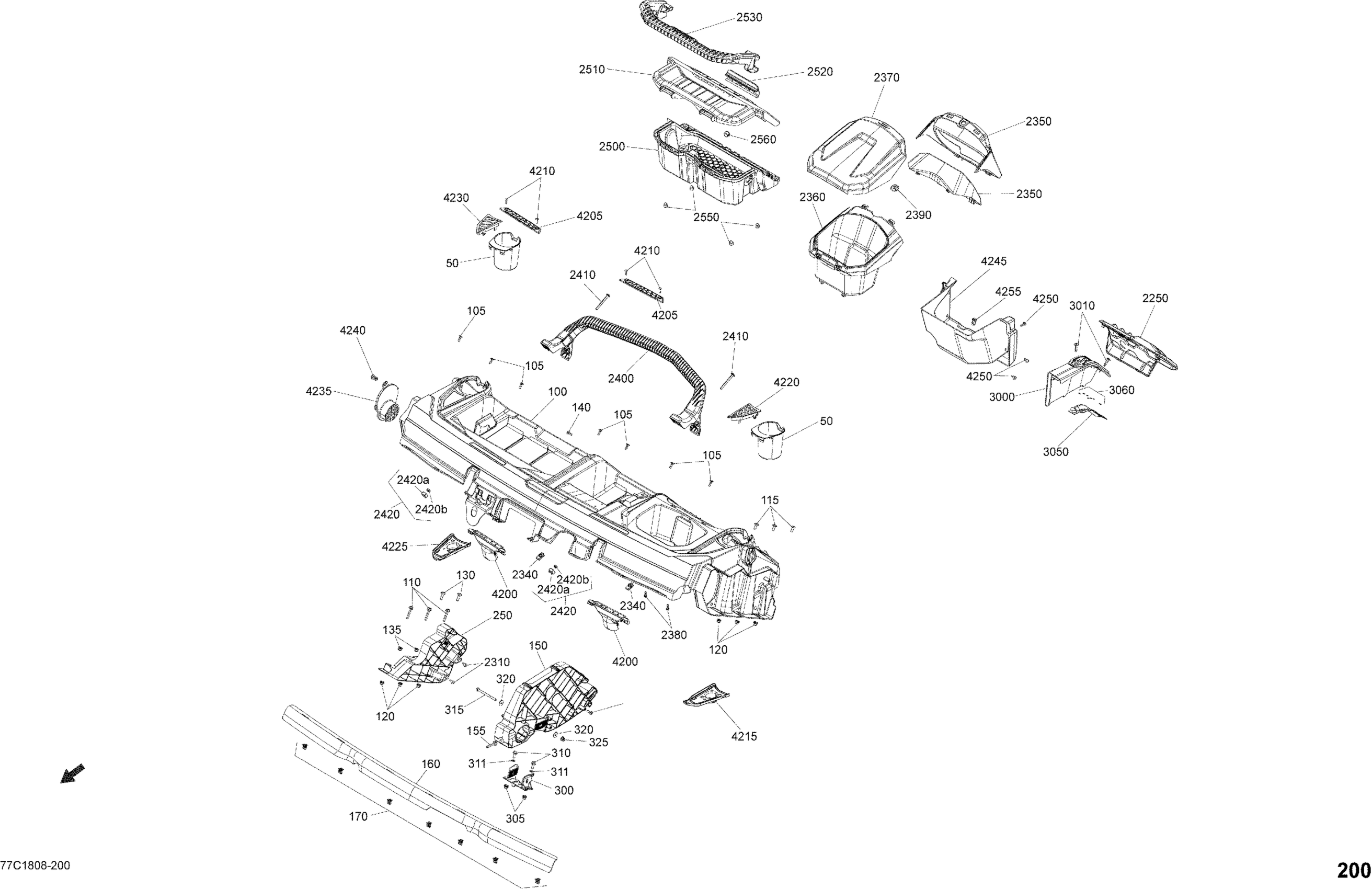

Can-Am Traxter MAX HD10, 2018 Cab Interior Dashboard Defender MAX Diagram

#

Description
Price

50

Cup Holder

707900288

$13.85

100

Dashboard Upper Kit

715006520

$193.82

105

Torx Screw K50 X 16

250000720

$1.39

110

Hex. Flange Screw S.Grip M6 X 35

207563544

$1.74

115

Torx Truss Screw M6 X 16

250000721

$1.39

120

Insert Half Hex Body M6 x 1.0

250100199

$2.54

130

Torx Screw M6 X 20

250000712

$1.74

135

Hex. Flange Elastic Nut M6

233261494

$1.26

140

Torx Screw K50 X 16

250000720

$1.39

150

Dash Support

707900249

$64.58

155

Hex. Flange Screw S.Grip M6 X 35

207563544

$1.74

160

Dash Trim

707900411

$15.22

170

Edge Clip

517302785

$0.70

250

RH Support

707900367

$35.35

300

Plier

707900940

$5.98

305

Insert Half Hex Body M6 x 1.0

250100199

$2.54

310

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.56

311

Flat Washer 6 mm

234061410

$1.04

315

Hex. Screw M6 X 80

207068044

$3.39

320

Stainless Steel Flat Washer

234062670

$1.74

325

Hex. Flange Elastic Nut M6

233261494

$1.26

2250

Switch Support

703501098

$15.22

2310

Torx Screw K50 X 16

250000720

$1.39

2340

Panel Nut M6 X 1.0

250100198

$1.73

2350

Cluster Support | Except XT, Cab Package

707900285

$19.20

2350

Cluster Support | Package XT, Cab

707900358

$17.66

2360

Storage Box Ass'y | Includes 2370 to 2370b

703501087

$41.51

2370

Storage Box Ass'y | Includes 2370 to 2370b

703501087

$41.51

2380

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

2390

Grommet

705003264

$3.43

2400

Passenger Handhold

707900248

$50.74

2410

Torx Screw M6 X 60

250000648

$6.15

2420>2420b

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$3.73

2420a

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

2420b

Hex. Elastic Stop Nut M6

232561600

$0.92

2500

Removable Storage Bin

715004344

$87.66

2510

Removable Storage Bin

715004344

$87.66

2520

Clip | Outlander Max

269501945

$15.19

2530

Handle | DPS Package

707900567

$18.43

2550

Rubber Bumper

293830005

$5.33

2560

Cap

293000120

$2.75

3000

Shifter Gate

707900608

$8.98

3010

Torx Screw M6 X 25 | XT Models

250000728

$3.61

3050

Shifter Gate Deflector

707900506

$5.52

3060

Push Nut

250100178

$0.58

4200

Central Adaptor

707900452

$15.22

4205

Front Grid

707900434

$11.83

4210

Torx-Truss Pt K40 X 16

250000759

$1.74

4215

LH Adaptor

707900437

$20.74

4220

LH Grid

707900435

$20.74

4225

RH Adaptor

707900455

$20.74

4230

RH Grid

707900436

$20.74

4235

Side Flange

707900438

$12.91

4240

Tuflok Plastic Rivet

293150230

$1.21

4245

Storage Box LWR F

707900852

$36.89

4250

Torx Screw K50 X 16

250000720

$1.39

4255

Tuflok Plastic Rivet

293150230

$1.21
