1989 Kawasaki 454 LTD Owner's Tools Diagram

← All diagrams

Find the part on the Owner's Tools diagram for your 1989 Kawasaki 454 LTD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

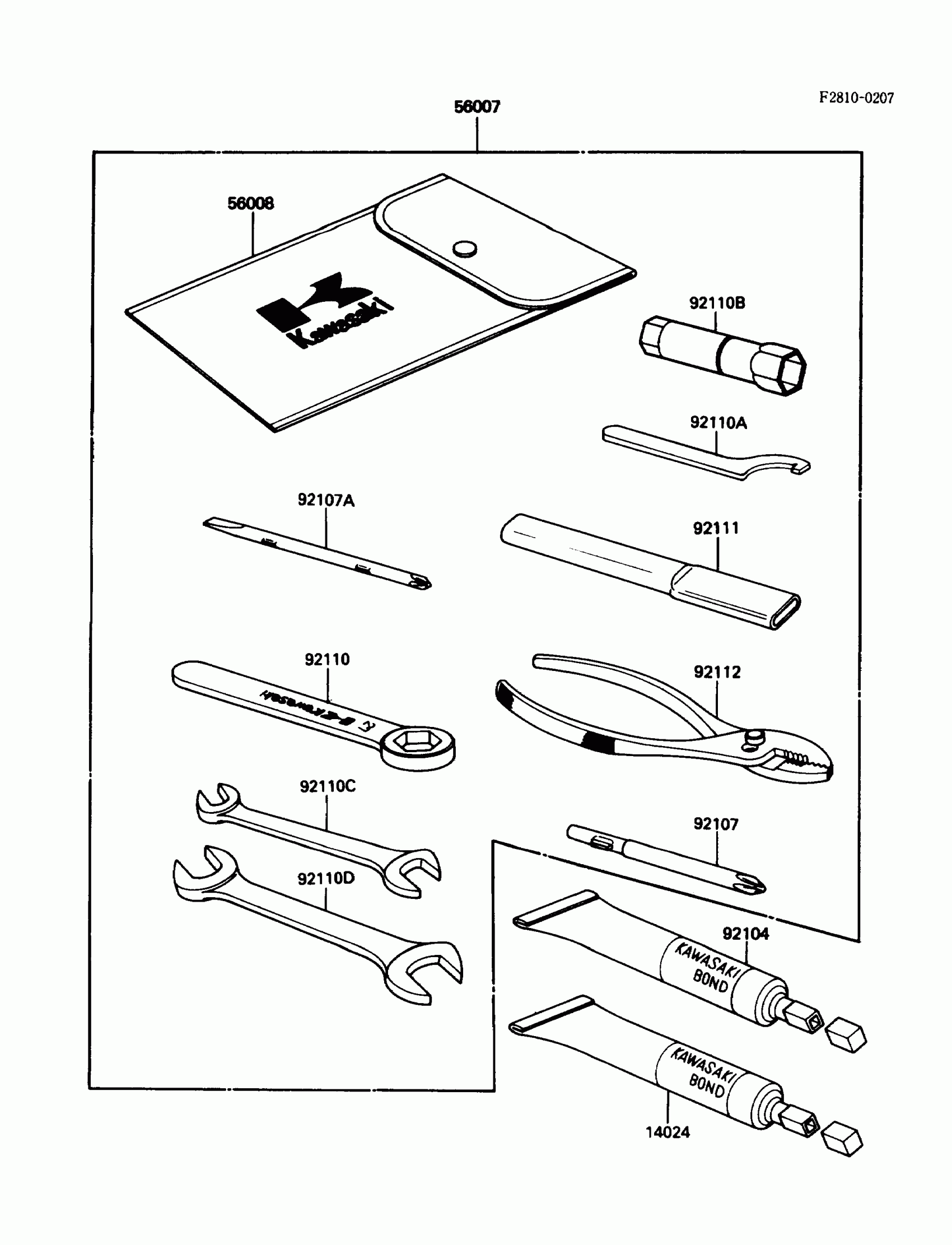

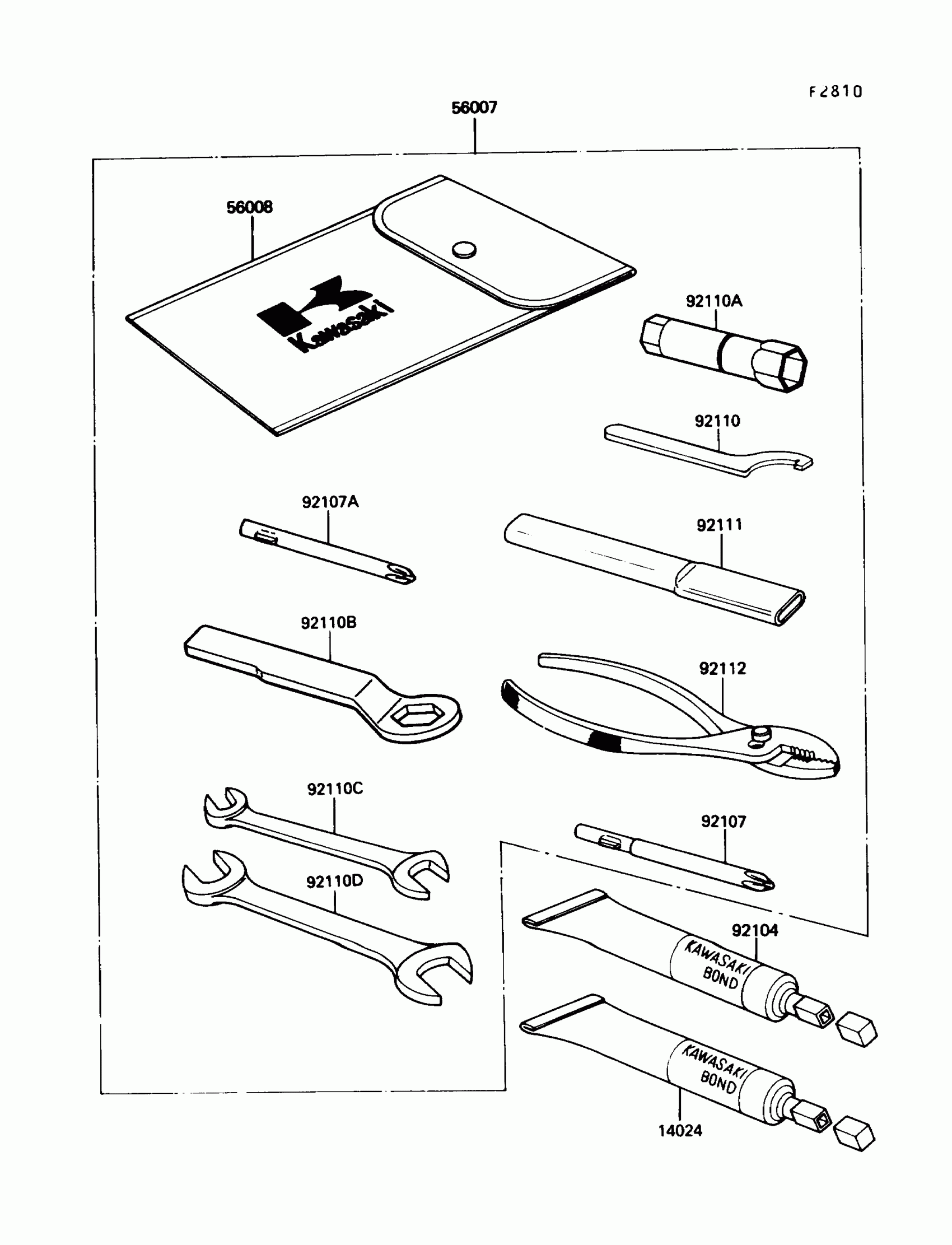

1989 Kawasaki 454 LTD Owner's Tools Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14024

GASKET-LIQUID,TB1211,WHITE

56019-120

1
Out of stock

56007

TOOLKIT

56007-1229

1

$131.03

In stock

56008

BAG,TOOL

56008-1019

1

$16.49

In stock

92104

1

$9.96

In stock

92107

TOOL-DRIVER,#3PHILLIPS

92107-005

1
Out of stock

92107A

1

$7.72

In stock

92110

1

$21.22

In stock

92110A

TOOL-WRENCH,HOOK,45MM

92110-1007

1
Out of stock

92110B

1

$17.27

In stock

92110C

1

$19.66

In stock

92110D

1

$17.39

In stock

92111

TOOL-BAR,BOX END WRENCH

92111-1051

1
Out of stock

92112

TOOL-PLIERS

92112-003

1

$26.00

In stock
