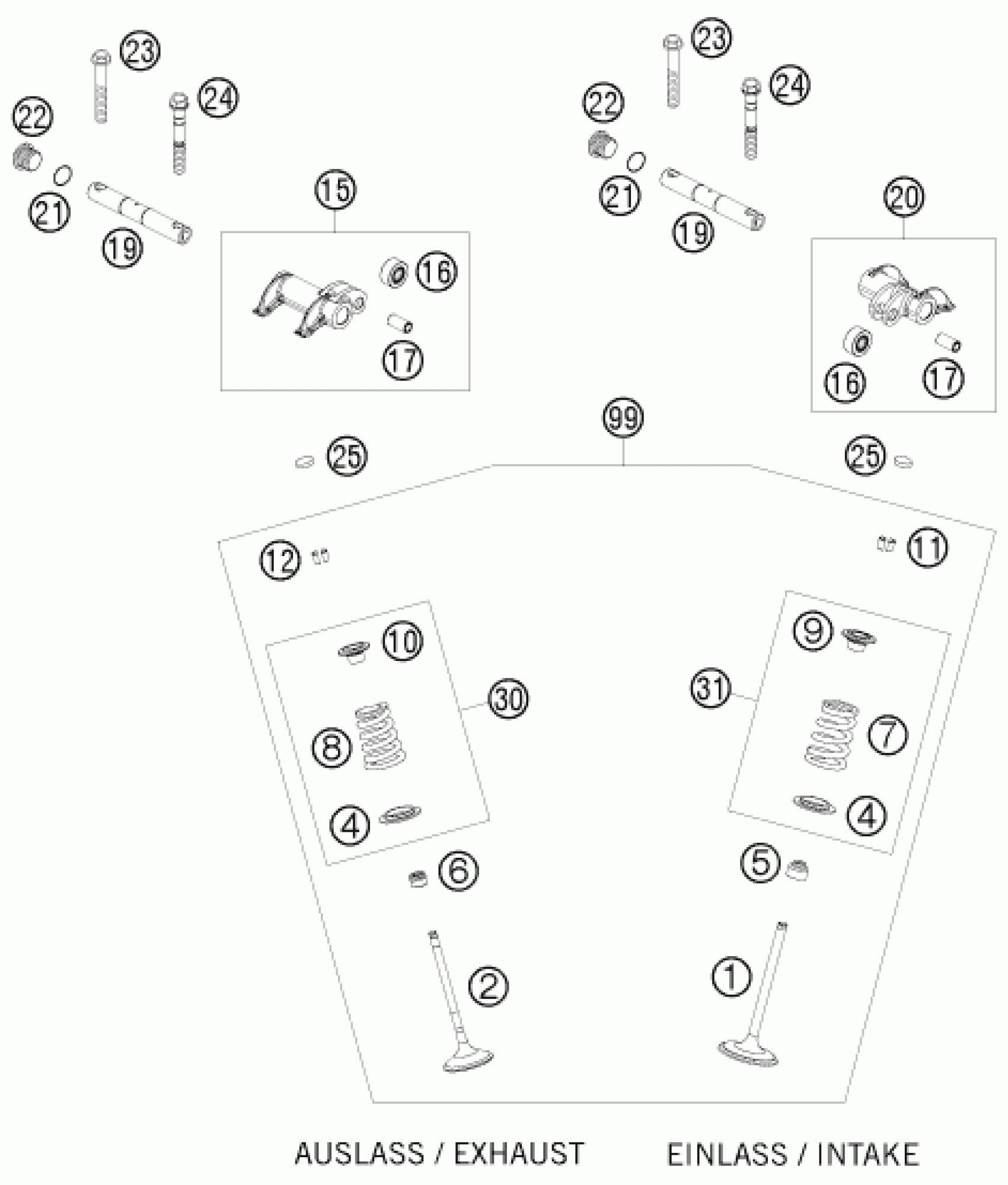

KTM 450 XCR-W 2008 VALVE DRIVE Diagram

#

Description
Price

22

HOLDING BOLT M14X1,5

78036081000

Unavailable

25

SHIM D=10/2,00 03

60036035200

Unavailable

25

SHIM D=10/2,05 03

60036035205

Unavailable

30

VALVE SPRING KIT EX. 450-530

78036029044

Unavailable

31

VALVE SPRING KIT INT. 450-530

78036028044

Unavailable

25

SHIM D=10/2,10 03

60036035210

Unavailable

25

SHIM D=10/2,15 03

60036035215

Unavailable

25

SHIM D=10/2,20 03

60036035220

Unavailable

25

SHIM D=10/2,25 03

60036035225

Unavailable

25

SHIM D=10/2,30 03

60036035230

Unavailable

25

SHIM D=10/2,35 03

60036035235

Unavailable

25

SHIM D=10/2,40 03

60036035240

Unavailable

25

SHIM D=10/2,45 03

60036035245

Unavailable

25

SHIM D=10/2,50 03

60036035250

Unavailable

25

SHIM D=10/2,55 03

60036035255

Unavailable

25

SHIM D=10/2,60 03

60036035260

Unavailable

25

SHIM D=10/2,65 03

60036035265

Unavailable

25

SHIM D=10/2,70 03

60036035270

Unavailable

25

SHIM D=10/2,75 03

60036035275

Unavailable

25

SHIM D=10/2,80 03

60036035280

Unavailable

25

SHIM D=10/2,85 03

60036035285

Unavailable

25

SHIM D=10/2,90 03

60036035290

Unavailable

25

SHIM D=10/2,95 03

60036035295

Unavailable

25

SHIM D=10/3,00 03

60036035300

Unavailable

25

SHIM D=10/3,05 03

60036035305

Unavailable

25

SHIM D=10/3,10 03

60036035310

Unavailable

1

INTAKE VALVE

78036030000

Unavailable

2

EXHAUST VALVE

78036031000

Unavailable

4

VALVE SPRING HOLDER EXHAUST

78036136000

Unavailable

5

VALVE-STEM SEALING RACING

59036027000

Unavailable

6

VALVE-STEM SEALING 05

77036027000

Unavailable

7

VALVE SPRING INTAKE

78036028000

Unavailable

8

VALVE SPRING EXHAUST

78036029000

Unavailable

9

VALVE SPRING RETAINER INTAKE

78036132000

Unavailable

10

VALVE SPRING RETAINER EXHAUST

78036032000

Unavailable

11

VALVE COLLET LK 6H

78036033000

Unavailable

12

valve collet

77036033000

Unavailable

15

ROCKER ARM EXHAUST CPL.

78036061044

Unavailable

16

ROCKER ARM ROLLER

59036061091

Unavailable

17

BEARING BOLT ROCKER ARM ROLLER

78036061092

Unavailable

19

ROCKER ARM SHAFT

78036056000

Unavailable

20

ROCKER ARM INTAKE CPL.

78036060044

Unavailable

21

O-ring 11x1.5 VITON

0770110015

Unavailable

23

SPECIAL SCREW M7X40 WS10

77036080000

Unavailable

24

FIT BOLT M7X1X55

78036080000

Unavailable

25

SHIM D=10/3,15 03

60036035315

Unavailable

25

SHIM D=10/3,20 03

60036035320

Unavailable

99

VALVE KIT 450/530 EXC/R 08-13

78036030010

Unavailable

25

SHIM D=10/3,3

60036035330

Unavailable
