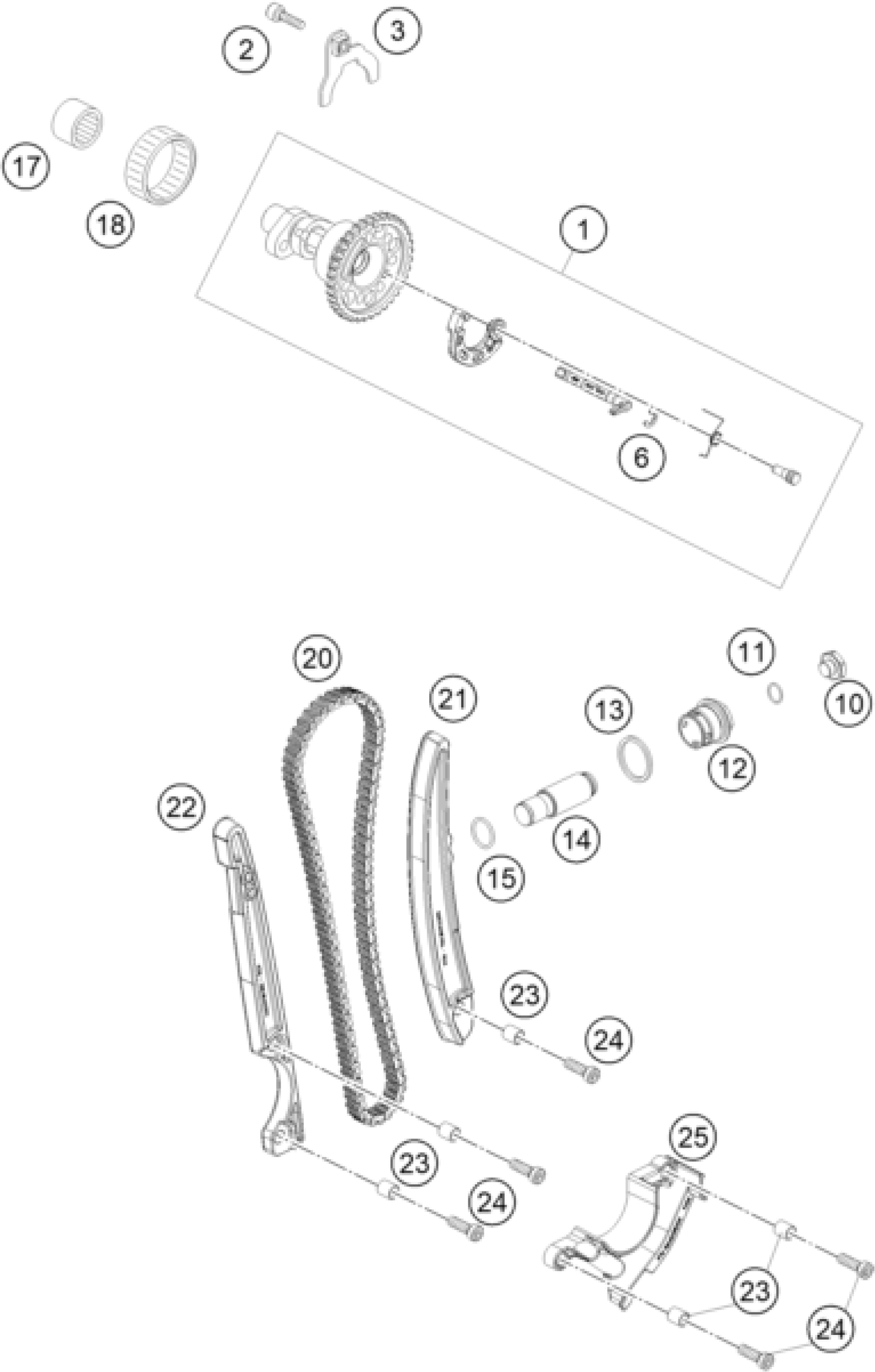

KTM 450 XCR-W 2008 TIMING DRIVE Diagram

#

Description
Price

1

CAMSHAFT CPL. W. DECO 08

78036010133

Unavailable

2

AH SCREW DIN0912-M 6X20 SS

0912060208

Unavailable

3

RETAINING PLATE CAMSHAFT CPL.

78036012033

Unavailable

6

TAB WASHER DIN6799 RS5

0799050000

Unavailable

10

HOLDING BOLT

77336008010

Unavailable

11

o-ring 10.00x1.00 NBR70

0770010010

Unavailable

12

CHAIN ADJUSTER HOLDING BOLT

78036008100

Unavailable

13

CU SEAL-RING DIN7603 A24X29X2

0603242920

Unavailable

14

CHAIN ADJUSTER HYD. 05

77036003000

Unavailable

15

o-ring 18.00x2.00 NBR70

0770180020

Unavailable

20

TIMING CHAIN 110T 08

78036013000

Unavailable

21

TENSIONER RAIL

78036002000

Unavailable

22

GUIDE RAIL

78036001000

Unavailable

23

SPACER BUSHING 6.1X8.2X9.1 05

77036001050

Unavailable

24

AH SCREW DIN6912-M 6X20 8.8

0984060203

Unavailable

25

SECURING PROTECTION

78036005000

Unavailable

17

NEEDLE SLEEVE HK1814RS18/24/14

0618182414

Unavailable

18

NEEDLE SLEEVE HK4012B40X47X12

0618404712

Unavailable
