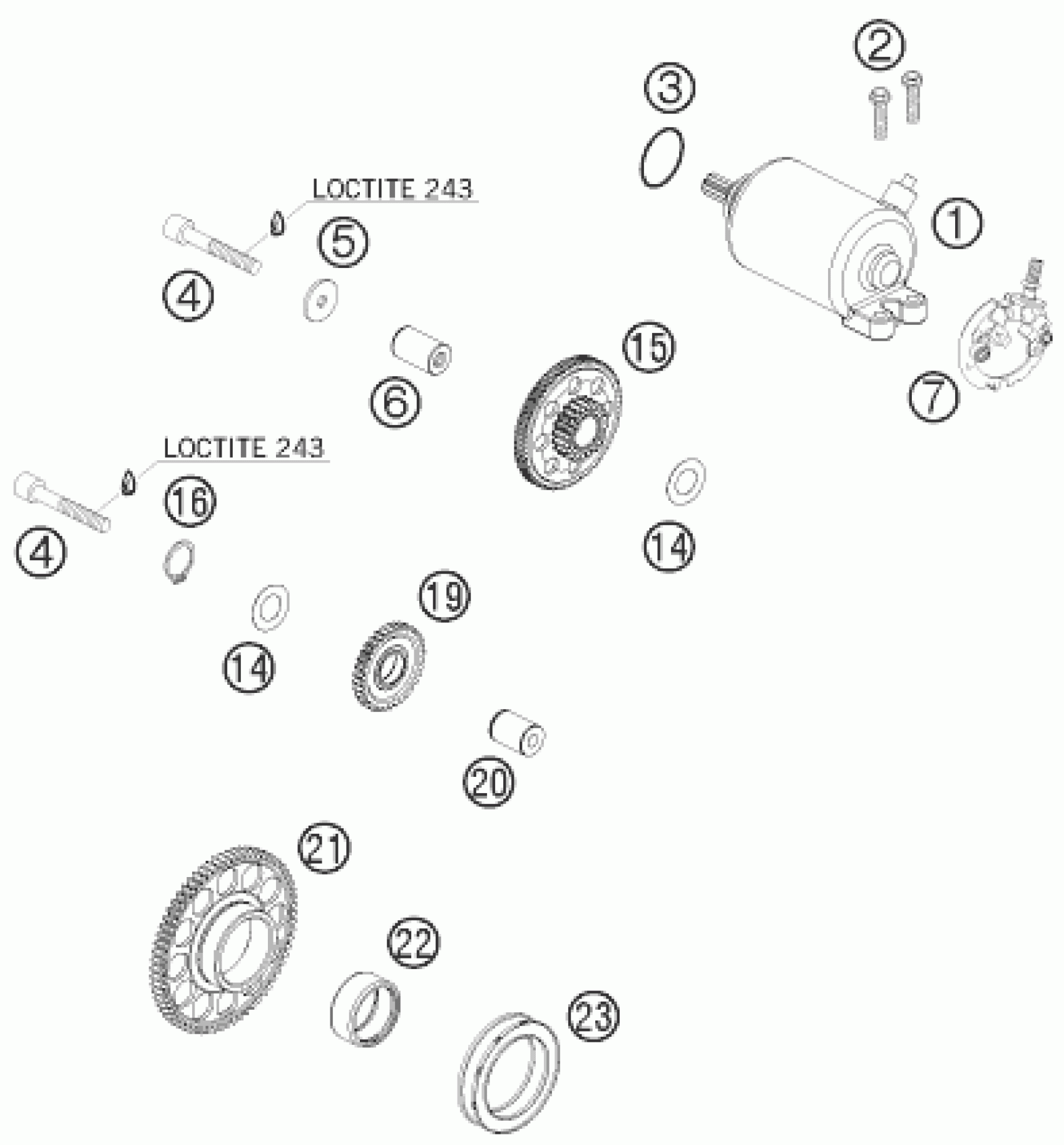

KTM 450 XCR-W 2008 ELECTRIC STARTER Diagram

#

Description
Price

21

FREEWHEEL GEAR 66-T

78040020066

Unavailable

22

NEEDLE BEARING HK 3016 B

0618301617

Unavailable

23

FREE WHEEL CLUTCH MECHANISM 97

H25015301

Unavailable

19

IDLER GEAR 30-T CPL.

78040022000

Unavailable

1

E-START. ENGINE CPL. 0,45KW 08

78040001000

Unavailable

2

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

3

O-RING 25,12X1,78 NBR70

0770020220

Unavailable

4

AH SCREW DIN0912-M 6X40 A2

0912060404

Unavailable

5

STOP DISC 6X23X2

78040016004

Unavailable

6

BEARING BOLT

78040029000

Unavailable

15

TORQUE LIMITER CPL.

78040016000

Unavailable

14

SHIM WASHER DIN0988-17X24X0,5

0988172405

Unavailable

16

CIRCLIP DIN0471-17X1

0471170010

Unavailable

20

BUSHING PIN

78040028000

Unavailable

7

BRUSH HOLDER F. STARTER

78040002000

Unavailable
