Partiron

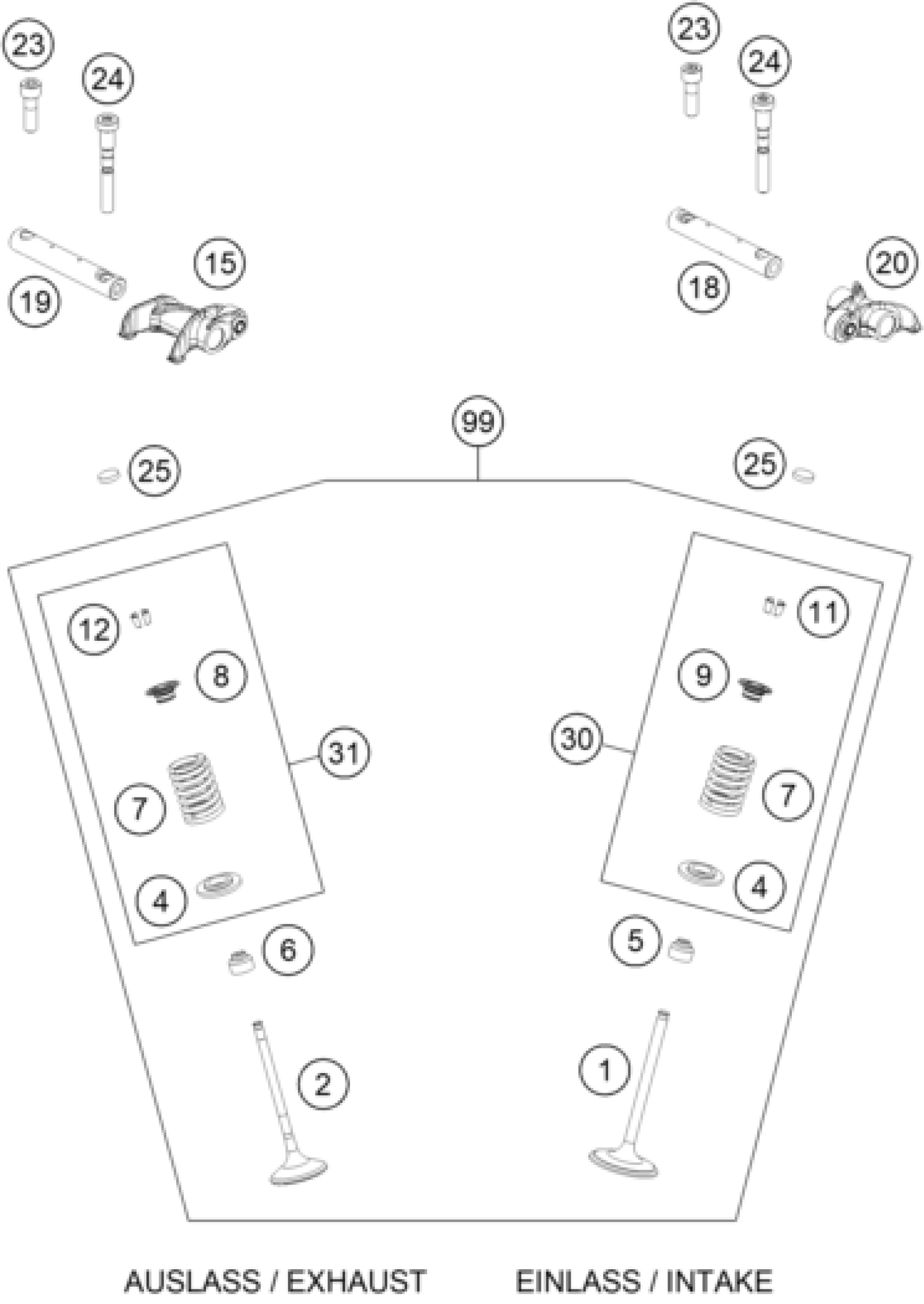

KTM 450 XCF-W 2026 VALVE DRIVE Diagram

#

Description
Price

1

Inlet valve

79536030000

Unavailable

2

Exhaust valve

79536531000

Unavailable

4

Valve spring washer

79536036100

Unavailable

5

VALVE-STEM SEALING RACING

59036027000

Unavailable

7

VALVE SPRING

78936028000

Unavailable

9

Valve spring retainer

79536032100

Unavailable

11

VALVE COLLET 07

77336033100

Unavailable

15

Rocker arm outtake

79536061144

Unavailable

18

Rocker Arm Shaft Intake

79536056000

Unavailable

19

exhaust rocker arm shaft

79536057000

Unavailable

20

Rocker arm intake system cpl.

79536560244

Unavailable

23

rocker arm shaft bolt

79536085000

Unavailable

24

rocker arm shaft bolt

79536084000

Unavailable

25

SHIM D=8,9/1,72

77036035172

Unavailable

25

SHIM D=8,9/1,76

77036035176

Unavailable

25

SHIM D=8,9/1,80

77036035180

Unavailable

25

SHIM D=8,9/1,84

77036035184

Unavailable

25

SHIM D=8,9/1,88

77036035188

Unavailable

25

SHIM D=8,9/1,92

77036035192

Unavailable

25

SHIM D=8,9/1,96

77036035196

Unavailable

25

SHIM D=8,9/2,00

77036035200

Unavailable

25

SHIM D=8,9/2,04

77036035204

Unavailable

25

SHIM D=8,9/2,08

77036035208

Unavailable

25

SHIM D=8,9/2,12

77036035212

Unavailable

25

SHIM D=8,9/2,16

77036035216

Unavailable

25

SHIM D=8,9/2,20

77036035220

Unavailable

25

SHIM D=8,9/2,24

77036035224

Unavailable

25

SHIM D=8,9/2,28

77036035228

Unavailable

25

SHIM D=8,9/2,32

77036035232

Unavailable

25

SHIM D=8,9/2,36

77036035236

Unavailable

25

SHIM D=8,9/2,40

77036035240

Unavailable

25

SHIM D=8,9/2,44

77036035244

Unavailable

25

SHIM D=8,9/2,48

77036035248

Unavailable

25

SHIM D=8,9/2,52

77036035252

Unavailable

25

SHIM D=8,9/2,56

77036035256

Unavailable

25

SHIM D=8,9/2,60

77036035260

Unavailable

30

Valve springs kit 450

79536029010

Unavailable

99

Valve spring 450 2020

79536030110

Unavailable

8

Valve spring retainer

79536532000

Unavailable

12

valve collet

77036033000

Unavailable

6

VALVE-STEM SEALING 05

77036027000

Unavailable

31

Valve spring kit exhaust

79536028010

Unavailable
