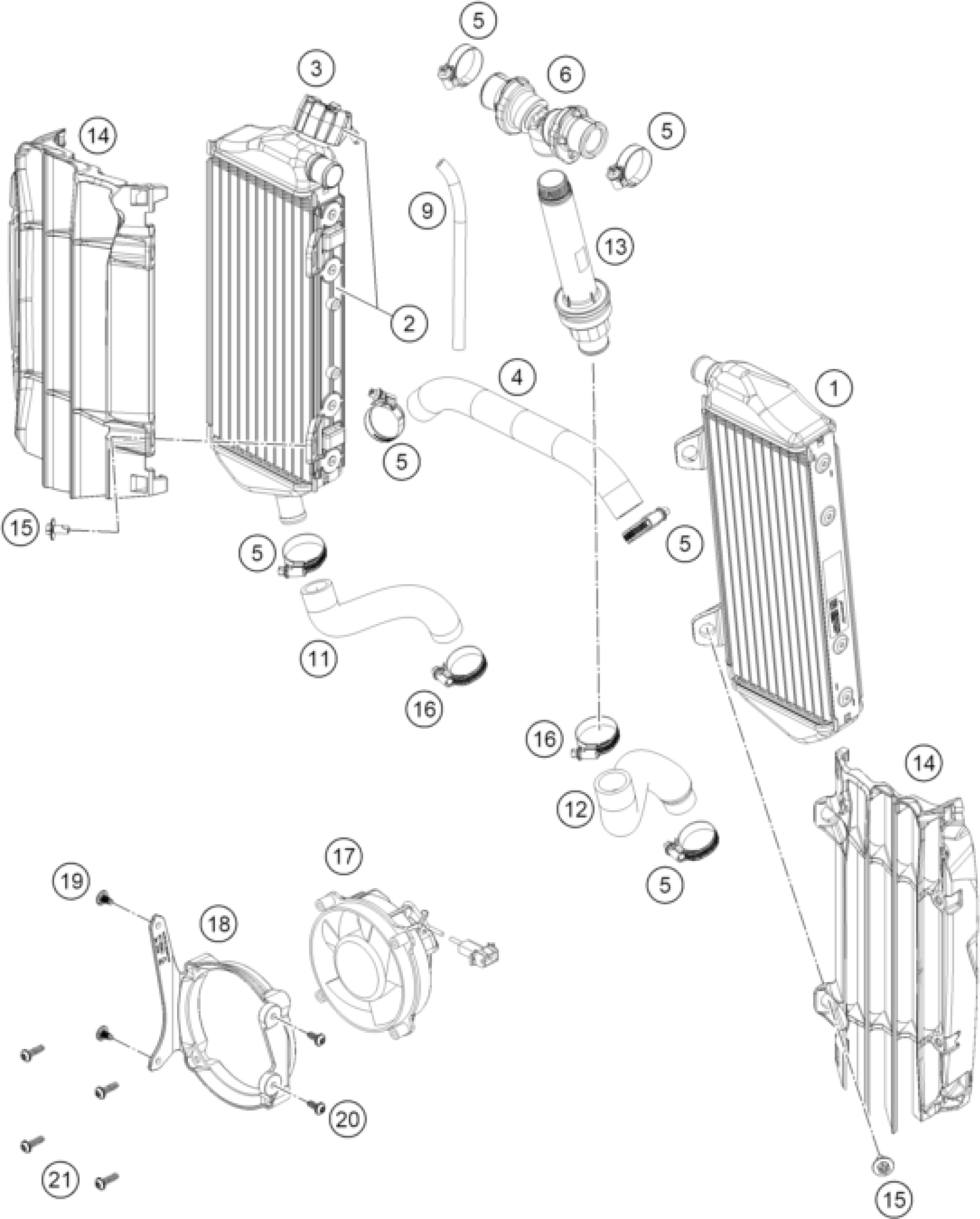

KTM 450 XCF-W 2024 COOLING SYSTEM Diagram

#

Description
Price

1

Radiator left

A46035007000

Unavailable

2

Radiator right

A46035008000

Unavailable

3

Radiator cap

A46035009000

Unavailable

4

Pre-formed hose radiator left/

A46035025000

Unavailable

5

Hose clip 18-29

0310000902900

Unavailable

6

Y-piece cmpl.

A46035071044

Unavailable

9

PVC-HOSE 6X9

50335030001

Unavailable

11

Pre-formed hose, engine/radiat

A48035024000

Unavailable

12

Pre-formed hose, engine/riser

A48035023000

Unavailable

13

Screw-in nozzle with thermo.re

A49035073033

Unavailable

14

Radiator protection set, black

A46035036044C1

Unavailable

15

HH ISR collar screw M6x12-10.9

0900000601203

Unavailable

16

Hose clip 20-32

0310000903200

Unavailable

17

FAN CPL. 12V LC4 2000

58435041000

Unavailable

18

Radiator fan support

79735943000

Unavailable

19

EJOT PT screw K50x12

0081050121

Unavailable

21

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

20

EJOT SHEETTRACS SCREW 50X10

0080150100

Unavailable
