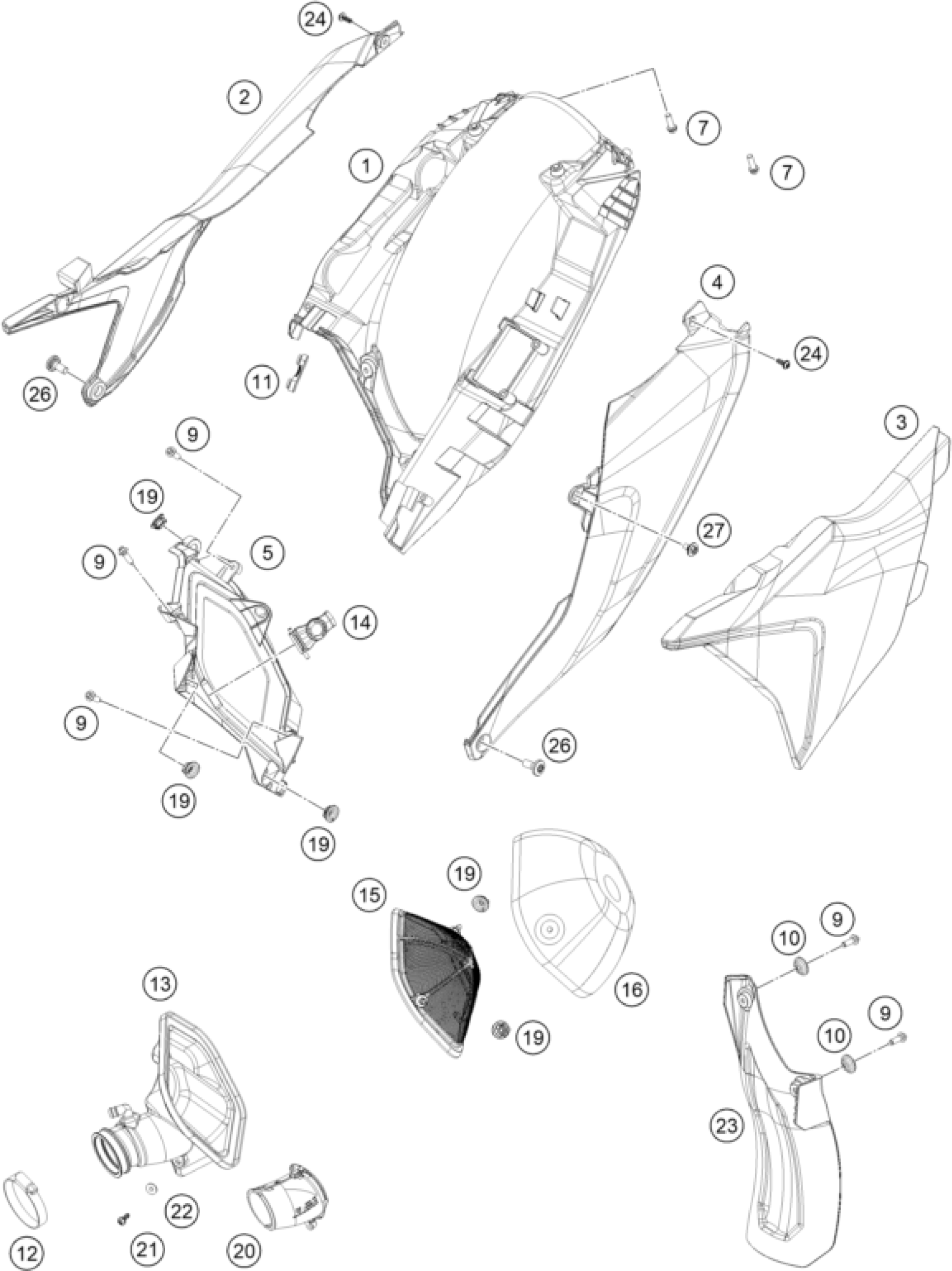

KTM 450 XCF-W 2024 AIR FILTER Diagram

#

Description
Price

1

Air filter box, bottom part

A46006101000AB

Unavailable

2

Air filter panel

A46006004000AB

Unavailable

3

Air filter box cover

A46006003000ABB

Unavailable

4

Side fairing

A46006005000AB

Unavailable

5

Air filter box front part

A46006001010AB

Unavailable

7

HH collar screw M6x20 TX30

0025060206

Unavailable

9

SCREW F. PLASTIC K60X20AL SW6

0017060206

Unavailable

10

Chain slider bushing

77304066150

Unavailable

11

exhaust spacer

79105098000

Unavailable

12

HOSE CLAMP 45-65MM

78006027000

Unavailable

13

Air boot

A48006126000

Unavailable

14

Air filter holding bracket

A46006017000

Unavailable

15

Air filter support

A46006016000

Unavailable

16

Air filter

A46006015000

Unavailable

19

quick release rubber grommet

47106003160

Unavailable

20

Intake snorkel cmpl.

A49006040044

Unavailable

23

Splash protection

A46004050000

Unavailable

24

EJOT PT screw K50x14

0081050141

Unavailable

26

Special screw M8X18 TORX45 SL

79003003000

Unavailable

27

special screw M6x12x3

83008000012

Unavailable

22

Bushing 5.1X6.5X4

25006004050

Unavailable

21

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable
