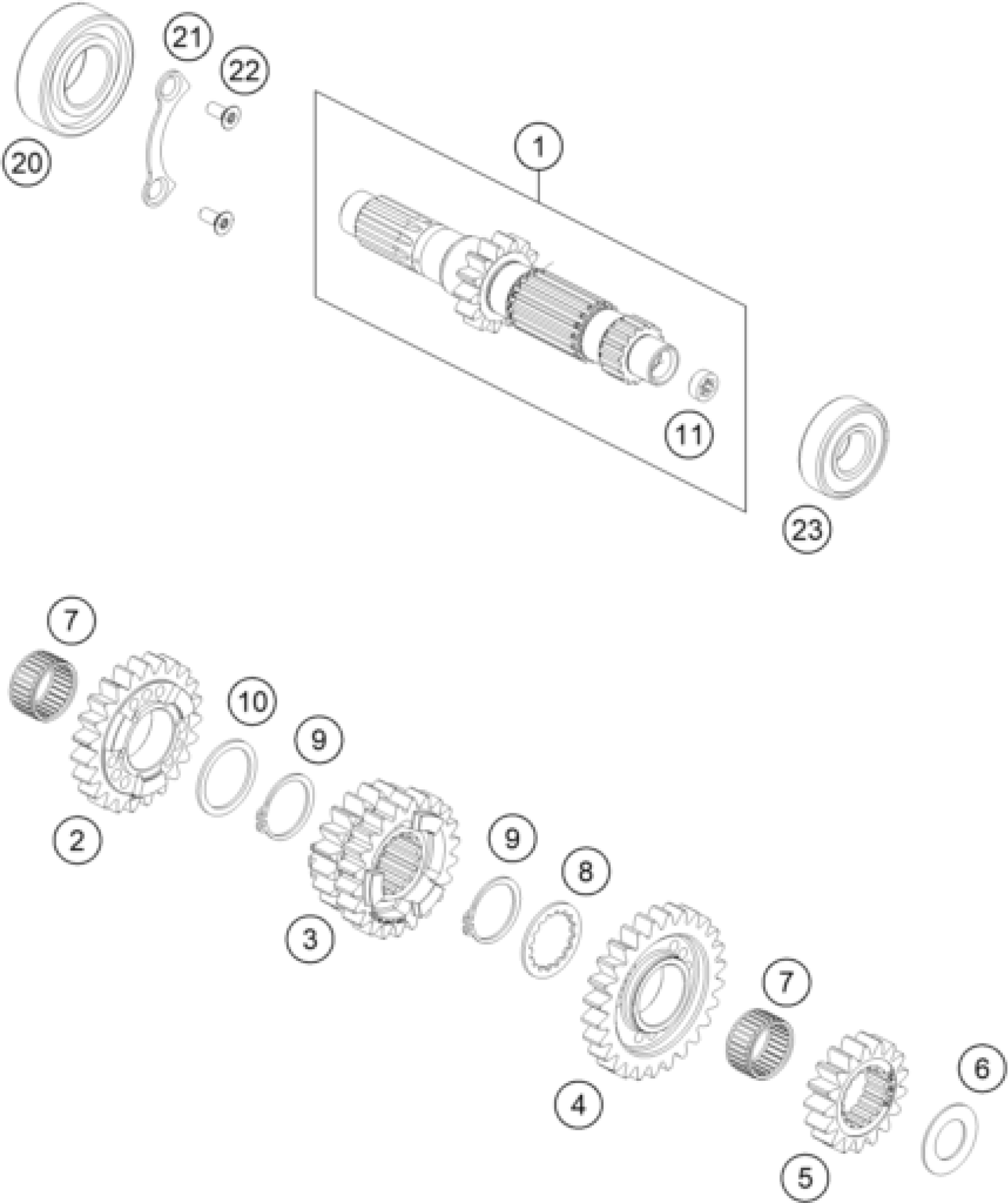

KTM 450 XCF-W 2023 TRANSMISSION I - MAIN SHAFT Diagram

#

Description
Price

1

Main shaft

79433601000

Unavailable

2

Idler gear 5 th.

79433605000

Unavailable

3

Sliding gear 3./4.

79433603000

Unavailable

4

Idler gear 6 th.

79433606000

Unavailable

5

Fixed gear 2nd

79433602000

Unavailable

6

STOP DISC 17,2X30X1

56033030000

Unavailable

7

NEEDLE BEAR. K 22X26X13 TN

0405222613

Unavailable

8

STOP DISK 23 X 32 X 1,5

78033033000

Unavailable

9

CIRCLIP DIN0471-25X1,2

0471250120

Unavailable

10

STOP DISK 26 X 32 X 1,5

78033031000

Unavailable

11

BUSHING

78033001110

Unavailable

20

Groove ball bearing 6205 C4 NT

0625062056

Unavailable

21

TAB WASHER BEARING MAIN SHAFT

78033032000

Unavailable

22

INT. TORX FLAT HEAD M5X12 T25

0019050121S

Unavailable

23

BALL BEARING 6203 RSH C3

0625062036

Unavailable
