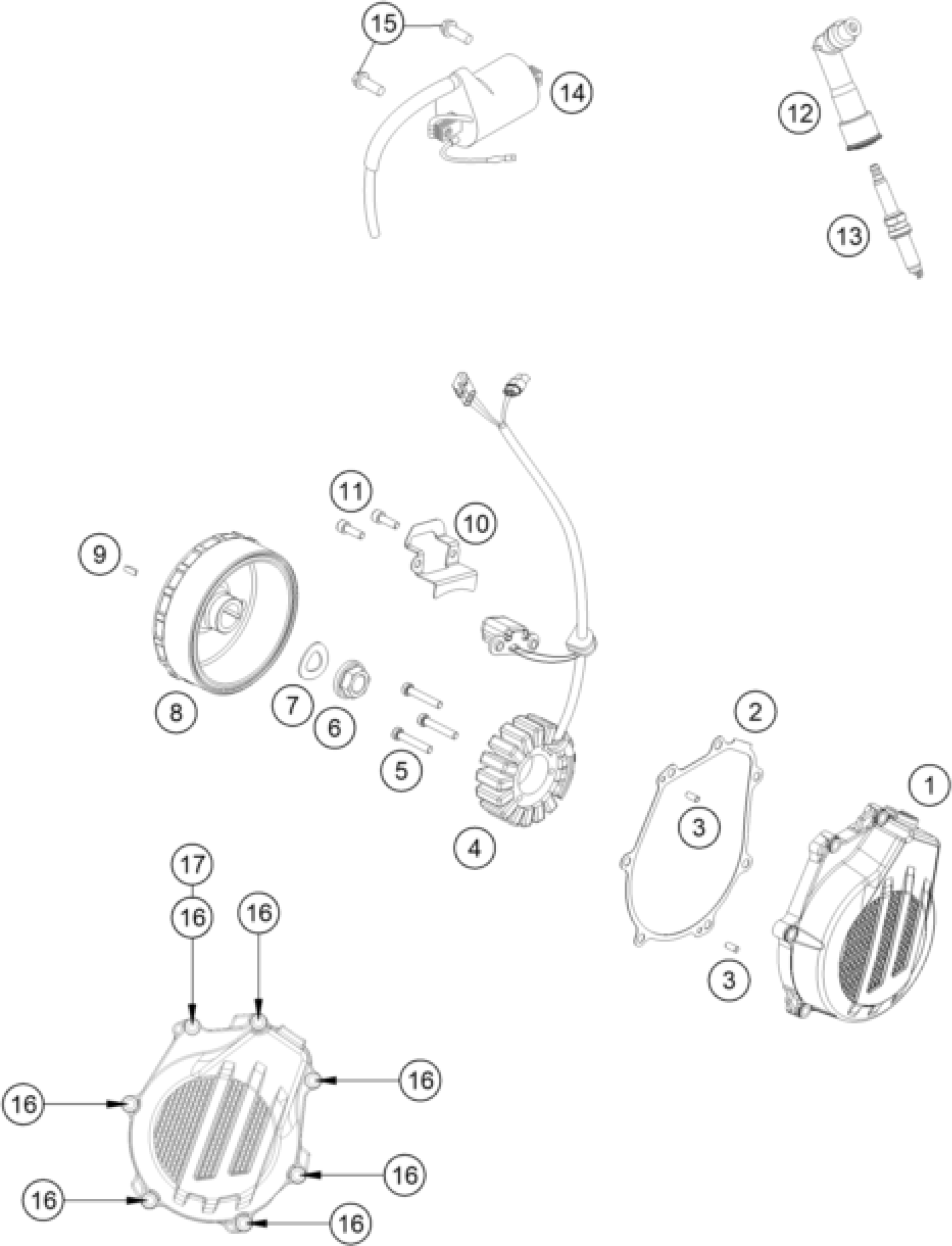

KTM 450 XCF-W 2023 IGNITION SYSTEM Diagram

#

Description
Price

1

IGNITION COVER EXC

7943050200015

Unavailable

2

IGNITION COVER GASKET

79430040000

Unavailable

3

Needle roll.DIN5402 NRB 4X9.8

0402040980

Unavailable

4

STATOR

79239104000

Unavailable

5

Cap head screw DIN 6912 - M5x3

0012050303S

Unavailable

6

COLLAR NUT M12X1 R/S

49030021000

Unavailable

7

SPRING WASHER DIN0137-B12

0137120000

Unavailable

8

ROTOR EXC 08

78039205000

Unavailable

9

WOODRUFF KEY DIN6888-3X3,7

0888030037

Unavailable

10

CABLE BRACKET

79430502050

Unavailable

11

AH collar screw DIN 912 M5x16

0912050163

Unavailable

12

Spark plug connector

79539090000

Unavailable

13

Spark plug

79739093000

Unavailable

14

Ignition coil

58439006000

Unavailable

15

COLLAR SCREW M6X18 ISA30

0026060186

Unavailable

16

HH collar screw M6x25 TX30

0025060256

Unavailable

17

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable
