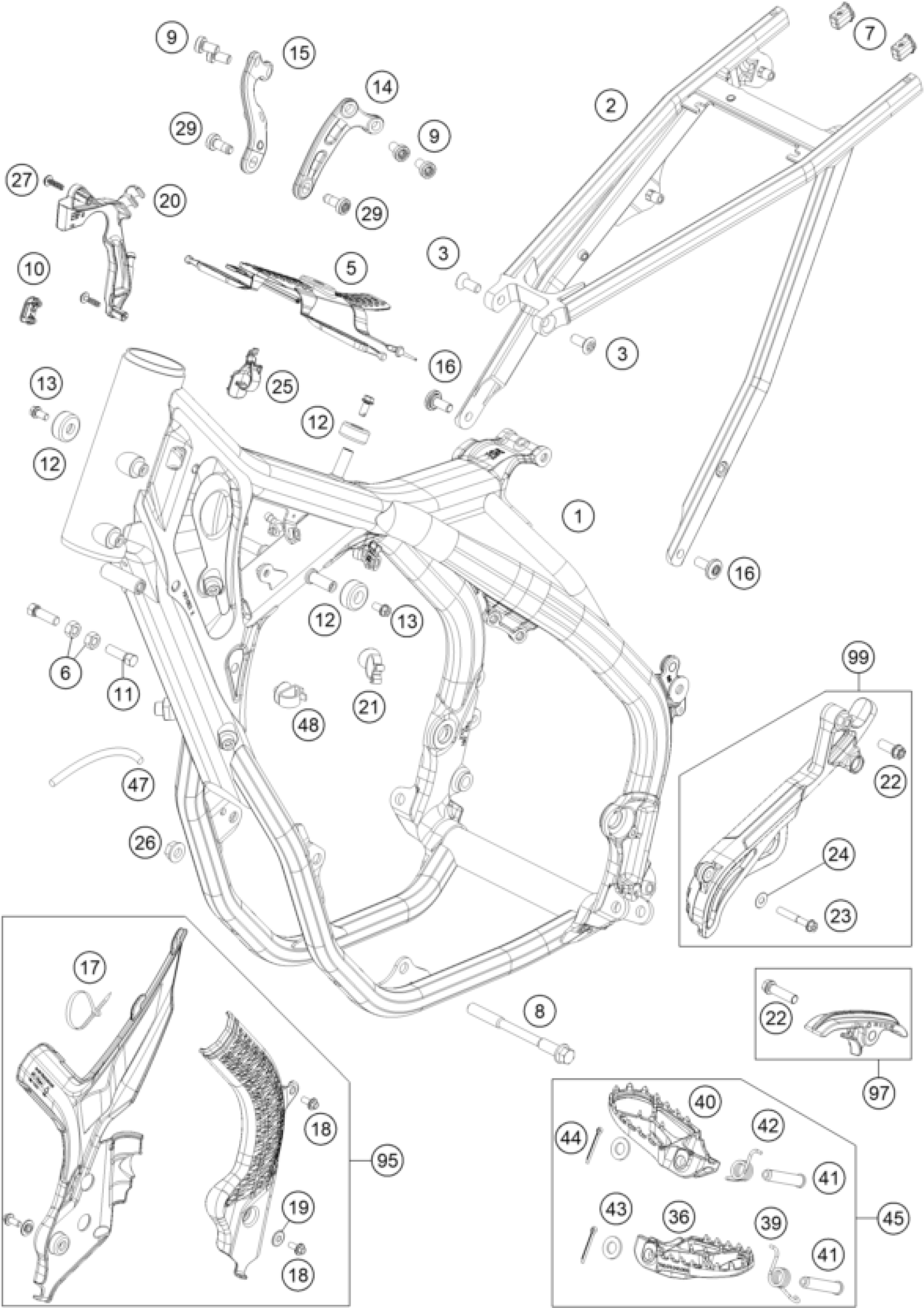

KTM 450 XCF-W 2023 FRAME Diagram

#

Description
Price

1

Frame 797T2

79703101000EB

Unavailable

2

Subframe

79103002100

Unavailable

3

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

Unavailable

5

TANK REST RUBBER

79607012000

Unavailable

6

Hexagon nut DIN934 M8

0934080003

Unavailable

7

Rear frame bit

79103002010

Unavailable

8

engine brac.scr. M10x115

77203014000

Unavailable

9

AH-COLLAR SCREW M8X15 TORX45

0035080156S

Unavailable

10

Cover control head sheet

79111013010

Unavailable

11

SPECIAL SCREW M8X26 WS=10

59001037000

Unavailable

12

TANK ROLLER 12X26X12 '98

50307014000

Unavailable

13

COLLAR SCREW M6X13 ISA30

0026060136

Unavailable

14

Engine brace left 450

79503113100

Unavailable

15

Engine brace right 450

79503114100

Unavailable

16

Special screw M8X18 TORX45 SL

79003003000

Unavailable

17

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

17

cable tie 140/ 3,5 mm Schwarz

44011176140

Unavailable

18

HH collar screw M5x10 TX30

0025050106

Unavailable

19

Bush f. frame protection 03

54803092060

Unavailable

20

Cable holder throttle cable gu

79711013000

Unavailable

21

Cable bracket d8

79711013010

Unavailable

22

SK-BUNDSCHRAUBE M8X30 ISA40

0025080306E

Unavailable

23

HH collar screw M6x35 TX30

0025060356

Unavailable

24

WASHER DIN0125-A 6,4

0125060003

Unavailable

25

wire holder le 19

79111093000

Unavailable

26

SELF LOCKING NUT M10 CU WS=14

54310086100

Unavailable

27

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

29

SHCS M8x20 TX45

0035080206S

Unavailable

36

FOOTREST L/S EXC 2017

79603040000

Unavailable

39

FOOTREST SPRING L/S 2016

79003045000

Unavailable

40

FOOTREST R/S EXC 2017

79603041000

Unavailable

41

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

Unavailable

42

FOOTREST SPRING R/S 2016

79003044000

Unavailable

43

washer DIN 125 A 10.5

0125100003

Unavailable

44

PIN DIN0094-3,2X25 STEEL

0094032253

Unavailable

45

FOOTREST-SET

79603040033

Unavailable

47

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

95

Frame protection set

7910309410030

Unavailable

97

CHAIN SLIDING KIT BELOW CPL.16

79003053010

Unavailable

99

SPROCKET COVER KIT

79403096010

Unavailable

48

CABLE SUPPORT KHS NR.150-47610

58111076000

Unavailable
