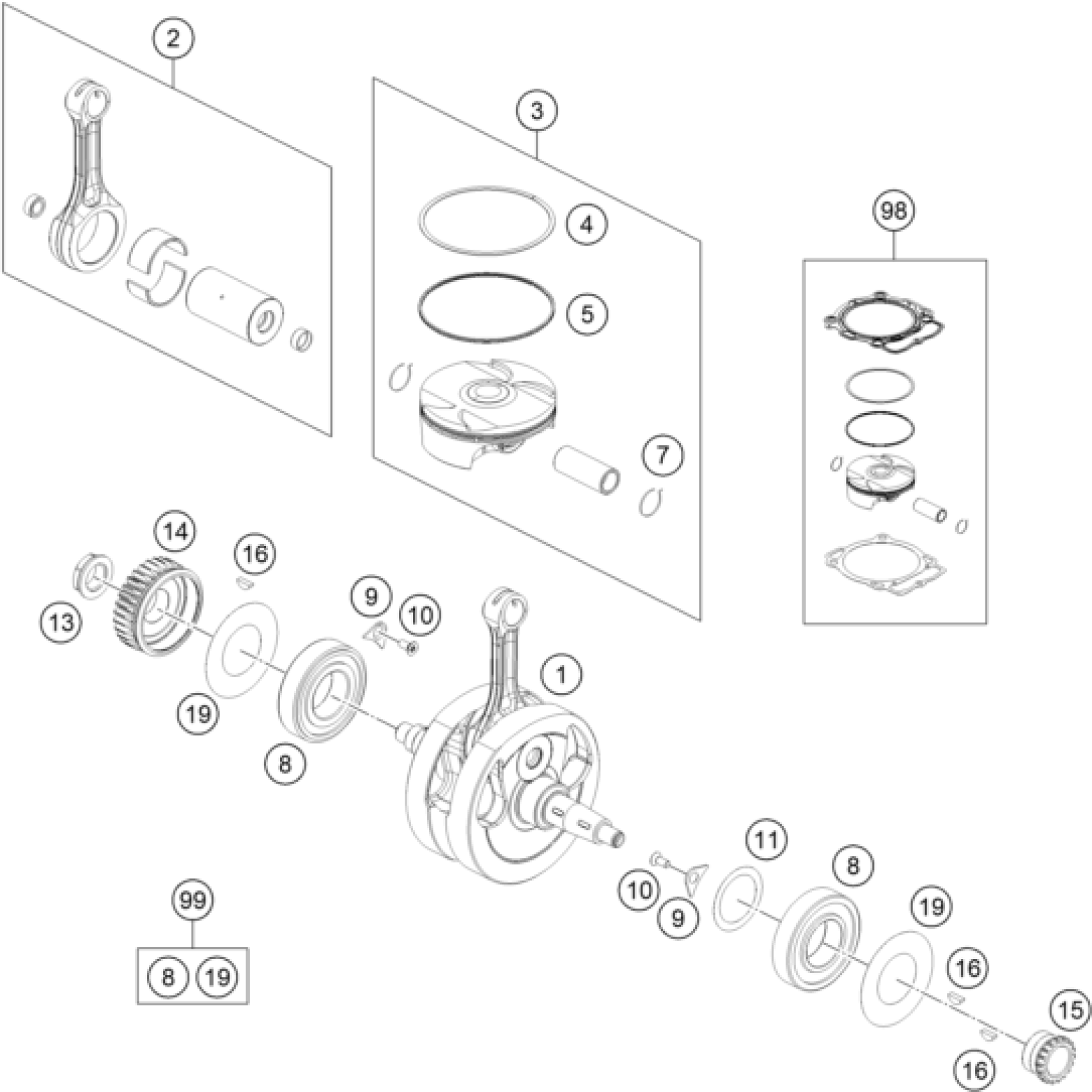

KTM 450 XCF-W 2023 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

Crankshaft assy

79430518200

Unavailable

2

CONROD REPAIR KIT

79430015144

Unavailable

3

piston I cpl. D95mm

79530607100 I

Unavailable

3

piston II cpl. D95mm

79530607100 II

Unavailable

4

COMPRESSION RING

79430130000

Unavailable

5

Oil scraper ring

79430132000

Unavailable

7

CIRCLIP

79430174000

Unavailable

8

CYLINDER ROLLER BEARING NJ207

79430082000

Unavailable

9

RETAINING PLATE F. CS BEARING

75030085000

Unavailable

10

INT. TORX FLAT HEAD M5X12 T25

0019050121S

Unavailable

11

SHIM WASHER 36X48X0,10

56530081000

Unavailable

11

SHIM WASHER 36X48X0,15

56530081100

Unavailable

11

SHIM WASHER 36X48X0,20 STEEL

56530081200

Unavailable

11

SHIM WASHER 36X48X0,30

56530081300

Unavailable

13

NUT PRIMARY WHEEL M20X1,5

78030029200

Unavailable

14

primary gear 31t

79432023231

Unavailable

15

Timing gear

78036014300

Unavailable

16

WOODRUFF KEY DIN6888-3X3,7

0888030037

Unavailable

19

BEARING SEAL

79430084000

Unavailable

98

Piston kit size I 450 Enduro

79530607110 I

Unavailable

98

Piston kit size II 450 Enduro

79530607110 II

Unavailable

99

CRANKSHAFT REP.KIT 450 SX-F 15

00050002315

Unavailable
