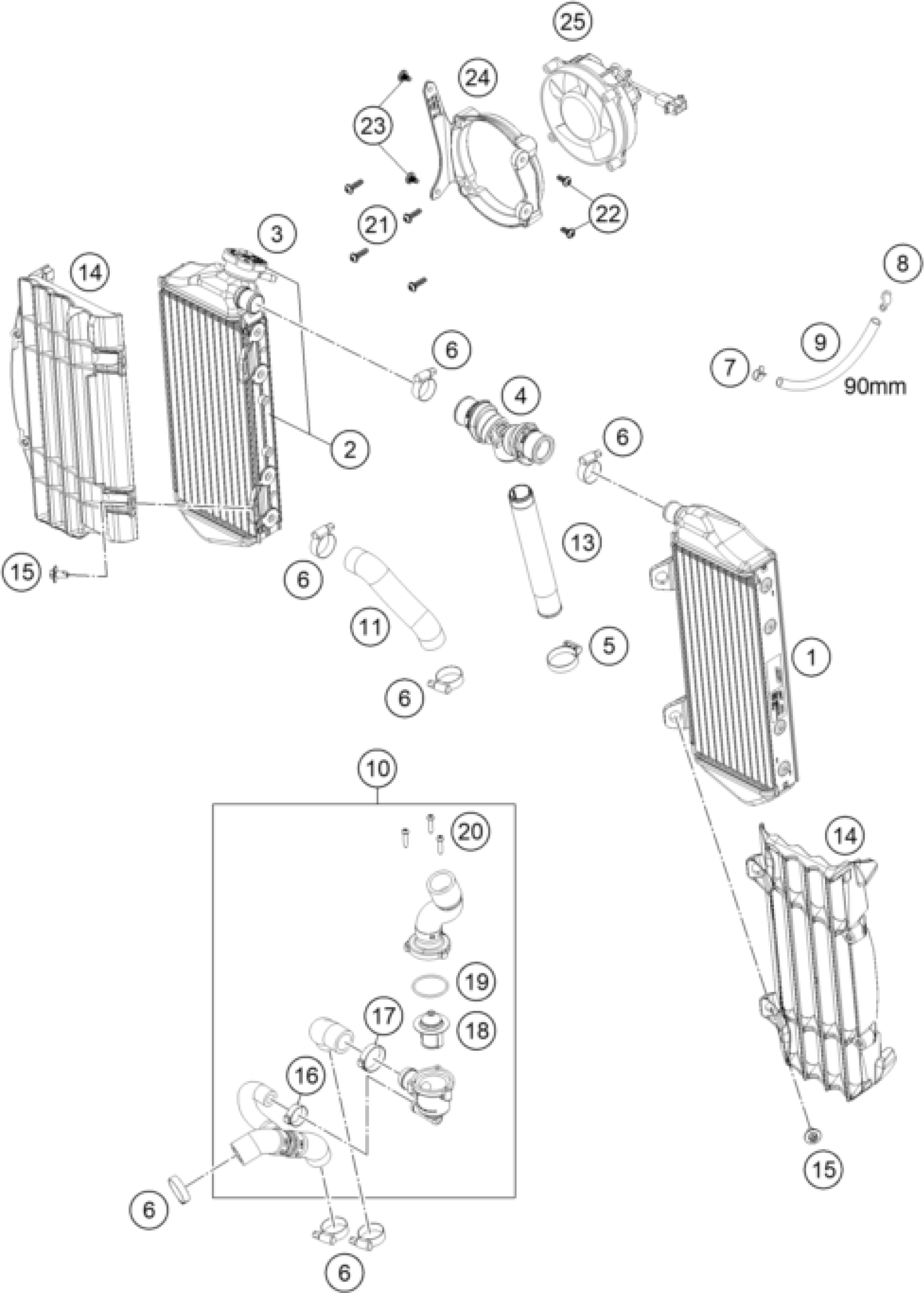

KTM 450 XCF-W 2023 COOLING SYSTEM Diagram

#

Description
Price

1

Radiator, left 19

50535007100

Unavailable

2

Radiator right

79535008100

Unavailable

3

RADIATOR CAP 1,8 BAR

79035016000

Unavailable

4

Y-hose cpl.

79135071044

Unavailable

5

Hose clip 20-32

0310000903200

Unavailable

6

Hose clip 18-29

0310000902900

Unavailable

7

CLAMP YDNAC 10096F (9,6MM)

59007017000

Unavailable

8

ANGLE PIECE '97

50303089000

Unavailable

9

PVC-HOSE 6X9

50335030001

Unavailable

10

prefomed hose w. therm.

79735026033

Unavailable

13

threaded bushing

79135073000

Unavailable

14

radiator protector le/ri black

7913503400030

Unavailable

15

COLLAR SCREW M6X12 TX

0024060123

Unavailable

16

VARIABLE ONE-EAR CLAMP 21,0MM

00050210706

Unavailable

17

VARIABLE ONE-EAR CLAMP 27,1MM

00050271708

Unavailable

18

THERMOSTAT 70 DEGREE 04

59435017000

Unavailable

19

O-RING 32,00X2,00

0770320020

Unavailable

20

SCREW FOR PLASTIC D=4X18

0016040183

Unavailable

11

water hose right

79535027000

Unavailable

21

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

22

EJOT PT screw K50x12

0081050121

Unavailable

23

EJOT SHEETTRACS SCREW 50X10

0080150100

Unavailable

24

Radiator fan support

79735943000

Unavailable

25

FAN CPL. 12V LC4 2000

58435041000

Unavailable
