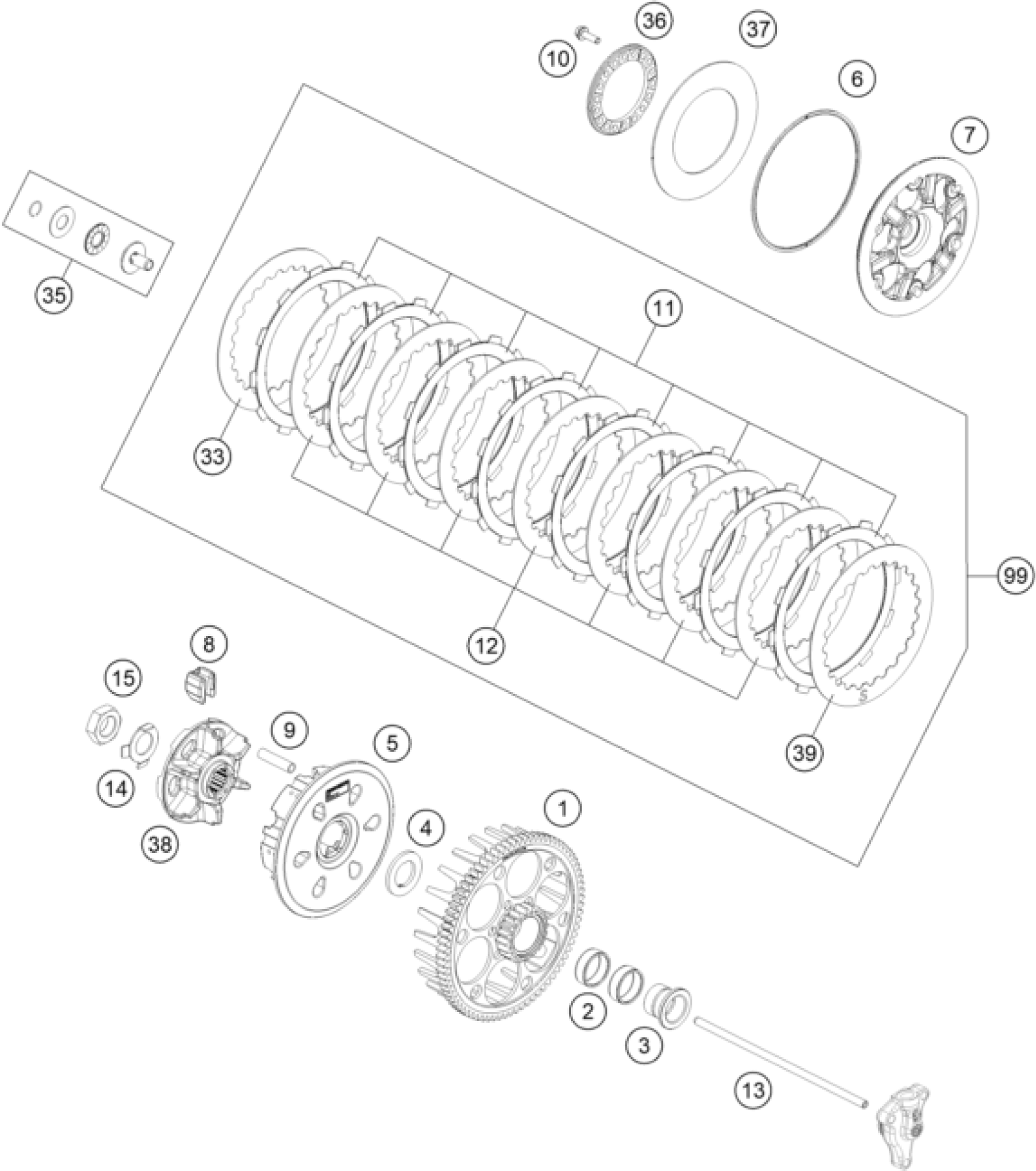

KTM 450 XCF-W 2023 CLUTCH Diagram

#

Description
Price

1

Clutch basket

79432101076

Unavailable

2

NEEDLE BEAR K 25X29X10

0405252910

Unavailable

3

COLLARSLEEVE

78132015100

Unavailable

4

WASHER 22 X 36,5 X 3

78932009000

Unavailable

5

Inner clutch hub

78132002400

Unavailable

6

WASHER 112X118X1.5

78132013000

Unavailable

7

Clutch pressure plate

79432003100

Unavailable

8

DAMPING RUBBER

78132025100

Unavailable

9

DRIVING SLEEVE D=7,95 L=38

77232004000

Unavailable

10

HH collar screw M5x16 TX30

0025050166

Unavailable

11

Lining disc 1,95mm

79532011000

Unavailable

12

INTERMEDIATE DISC 1,4MM 2002

59032010200

Unavailable

13

PUSH ROD

79432054000

Unavailable

14

TAB WASHER

78132018000

Unavailable

15

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

Unavailable

33

INTERMEDIATE DISC 1MM 2002

59032010100

Unavailable

35

PRESSURE PIECE CPL.

78132057144

Unavailable

36

Spring retainer

78132006200

Unavailable

37

BELLEVILLE SPRING 71X115X1,5 I

78132005000

Unavailable

38

Clutch center

78132002211

Unavailable

39

INTERMEDIATE DISC 1MM

78932010000

Unavailable

99

Clutch plate pack

79532010033

Unavailable
